| Condition: | New | Machine Name: | 5/7 Line Beading Machine |
|---|---|---|---|
| Machine Type: | CBM-1.2x1300,CBM1.2x2000 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction |
| Industry: | Construction Engineering, Air Conditioning, Ventilation Duct | Purpose: | Air Duct Making |
| Producing Materials: | Galvanized Sheet Metal, Stainless Steel Plate, Aluminum Sheet | Control Mode: | Electric Control |
| Operation: | Electric Switch, Manual Adjustment | Core Components: | Engine Motor, Bearings, Gearbox Reducer, Pressing Rollers |
| Function: | 5-lines, 7-lines | Sheet Thickness: | 0.4-1.2mm, 0.4-1.5mm |
| Power Of Motor: | 1.5 Kw, 2.2 Kw | Weight: | 340kg, 860kg |
| Dimension(L*W*H): | 1600X1000X1200mm, 2280x1100x1300mm | Voltage: | 220V/380V/415V/440V, 50HZ/60HZ, Customized |
| Color: | Gray Black+yellow, Blue+white, Or Customized | After-sales Service Provided:: | Video,Technology Support Online |
| Warranty: | 1 Year | ||
| High Light: | auto duct line 2,sheet metal beading machine,auto duct line 3 |
||

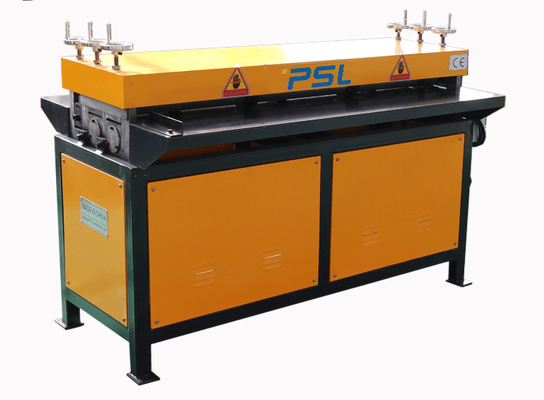

Duct forming machine metal Reinforced ribs maker 5-Line 7-Line Beading machine
Products Information:
The latest design in beading machine technology is now available. Designed to meet the requirements of SMACNA, this ductwork prep machine produces 5 beads on 4’ or 5’ centers. A convenient hand wheel raises or lowers the top roller to set depth of bead.
Technical sheets:
| Model |
Capacity (mm) |
Max. width (mm) |
Corrugation |
Power (KW) |
Weight (kg) |
Dimension L.W.H (mm) |
| CBM-1.2x1300 | 1.2 | 1300 |  |
1.5 | 340 | 1600X1000X1200 |
| CBM-1.5x1300 | 1.5 | 1300 | |
1.5 | 435 | 1620x1160x1300 |
| CBM-1.2x2000 | 1.2 | 2000 | |
2.2 | 864 | 2280x1100x1300 |
More detailed photos:
