30w 20w 50w Raycus Ipg Fiber Laser Marking Machine For Wood CNC Laser Machine Cutting

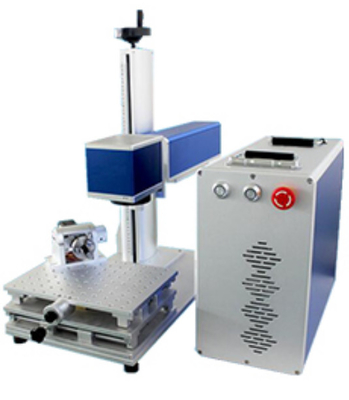

Large Image : 30w 20w 50w Raycus Ipg Fiber Laser Marking Machine For Wood CNC Laser Machine Cutting

Product Details:

Place of Origin:	China
Brand Name:	PSL
Model Number:	PEDB-400

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Wooden case, or Naked into container
Delivery Time:	30-45 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30-50 sets per month

Contact Now

Detailed Product Description

Product Name:	CNC Fiber Laser Marking Engraving Machine	Machine Type:	PEDB-400
Condition:	New	Application:	Metallic And Non-metallic Materials Laser Marking, Advertising Industries,Hardware, Furniture, Electrical Industry
Keyword:	Fiber Laser Marking Machine, Fiber Laser Engraving Machine	Function:	Metallic & Non-metallic Materials Laser Marking, Metal Sheet Tube Laser Engraving
Cnc Or Not:	Yes	Operation System:	Pulsed
Laser Source:	Raycus / IPG Fiber Laser	Laser Power:	10W,20W,30W,50W
Laser Mode:	Continuous	Working Table:	110x110mm, Customized
Max.Marking Thickness:	0.001-0.5mm	Marking Speed:	0-5000mm/s
Cooling Mode:	Air Cooling	Focus Adjusting:	Manual Adjusting Focus
Polarization:	Random	Applied Software:	CorelDraw,Photoshop,AutoCAD,CAM
Dimensions:	700200500mm, 14306201010mm	Color:	Standard Color, Or Customized
Weight Of Machine:	40kg - 130kg	Maintenance:	Remote Online Diagnosis And Detection
Warranty:	1 Years	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Certification:	CE, ISO,SGS,CCC
High Light:	20w raycus fiber laser marking machine , raycus 30 watt fiber laser , ipg 50w fiber laser

Portable Raycus IPG Optical Fiber Laser Marking engraving machine

Main feature and Advantages,

1. High electro-optic conversion efficiency, simple operation, Compact in structure, support harsh working environment, no consumables.

Low power consumption, stability laser output. the marking is permanent and corrosion resistant



High quality beam, small machine dimension, This highly integrated laser source increases the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.



Smaller output laser beam, finer marking line. suitable for high precision marking.



5. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.

Applicable Industries:

Laser marking machines are widely used in electronic components, telecommunications, automobile and motorcycle parts and accessories, instrumentation, aerospace, military products, metal machinery, tools, measuring and cutting tool, sanitary ware, pharmaceuticals, food and beverage, cosmetics and pharmaceutical packaging, medical equipment, solar energy, arts and crafts, and other fields.Used for all kinds of metal and non-metal marking.

Specification,

Model No	PEDB-400A	PEDB-400B	PEDB-400C	PEDB-400D
Type	Portable	Desktop	Colorful	Standby
Computer	Not includes PC			Includes PC
Laser Source
IPG Series	Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation	Pulsed
Polarization	random
Nominal average output power	10W - 30W For PEDB-400A /400B /400C 10W - 50W For PEDB-400D
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Net Dimensions	702050cm	803872cm	702050cm	14362101cm
Net Weight	44 kgs	53 kgs	44 kgs	130 kgs
Gross Weight	60 kgs	70 kgs	60 kgs	200 kgs
Laser system
Scanning Speed	0-7000mm/s
Marking Speed	0-5000mm/s
Marking size	110mm×110mm (F-theta 160)
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled
Pilot laser	650nm diode laser, visible red light for marking guide
Continuous working time	≥16h
Humidity	45～85% (no condensation)
Operating temperature	0~40℃
Control units	Laser Mark (English Version)

Configuration of Fiber Laser marking machine:

system	component
High speed scan system	Laser-induced vibration lens	China
Laser	Fiber laser	Raycus /IPG
Photics transmission system	Focusing mirror	Singapore
power	Power for fiber laser	China
Control software	software	Beijing
	Control panel	Beijing
	Data dog	Beijing
Work table	3D manual work table	China
Rotary work table(optional)	motored	China
