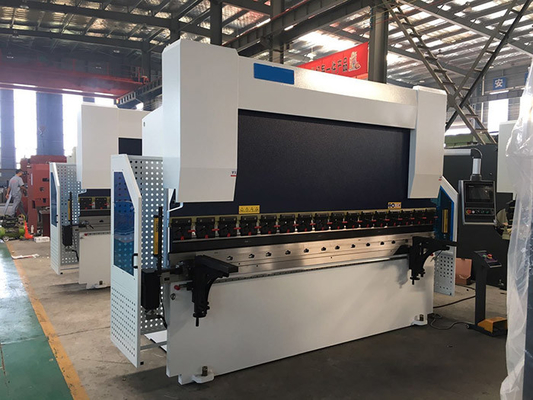

Wc67k-63t/2500 13ft 100 Ton Cnc Press Brake Bending Machine Metal Hydraulic 9 Axis

Sheet metal CNC Hydraulic press brake Multi CNC axis Torsion Bar Synchronization

  Main Functions of the Press brake:

1.    The Press brake uses full steel welded structure, vibrating treatment of ageing for removal of internal stress,with high rigidity and stability.

     2.    Torsion Bar forced mechanical synchronization, limit stopper balance with high precision Y1,Y2-axis.

      3.    The back gauge is welded by steel structure and has high rigidity. It is driven by Servo motor, ball screw and linear guide to ensure high precision operation.

      4.   The bakc-gauge fingers has high parallelism and quick adjustment on Linear guider.

      5.    Adopt integrated hydraulic control system, more reliable and easy for maintenance.
the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.


      6.    Adjustment mechanism of ram independent from oil cylinder assembly to enhance sealing effect.

      7.    Standard Top tool is fitted with Rapid clamping.

             4-way V-Die with different openings

      8.    Foot pedal with emergency stop.

      9.    Front ram cover with lamp for lighting.

      10.    Fast/quick Top tool clampings

      11.    CNC Controller for hydraulic press brake: Delem DA41T, Estun E300T, TP10s

  These controller only can control two servo axis-X & Y, and crwoning table.

  Multi-work-step programming function is able to achieve an automatic operation and contnuous positioning or multi-step procedures , as well as an automatic precision adjustment for positions of rear stopper and gliding block ;

  Optional functions or parts,

      1.   Front supporters moves smoothly on linear guider along worktable in rightward or leftward, also can be adjusted up and down.

  2. Safe laser protector.

  3. Manual or motorized Mechanical Crowning table.

  4. CNC controller SNC53 to control more axises with servo motors (X,Y1,Y2,R,Z1,Z2)

  5. Main motor updates to servo motor.

  6. Back-gauge beam with double linear guider to move fingers easily.

  7. Depth throat upto 600mm

    Main components:

WC67K series main parameters.
