Product Details:
Payment & Shipping Terms:
|
| Name: | CNC Hydraulic Guillotine Shearing Machine | Product Name: | HGN-13x3100 Sheet Metal Cutting CNC Hydraulic Shearing Machine |
|---|---|---|---|
| Condition: | New | Application: | Industrial Metal Cutting,Metal Plate Cutting Machine |
| Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI Etc Steel Plate | Max. Cutting Thickness: | 13mm |
| Max. Cutting Width (mm): | 2500/3200/4000/6000 Etc | Control System: | Delem DAC-360T, ELGO P40T CNC Controller |
| Rear Cutting Support: | Pneumatic Cutting Supporting Device | Color: | Customizable |
| Voltage: | 380V,Customized | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| Warranty: | 1 Year | ||
| High Light: | hydraulic metal shear machines PSL,small hydraulic shearing machines PSL,hydraulic metal plate shearing machines PSL |
||

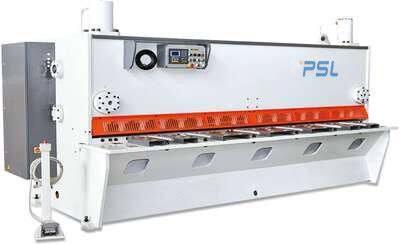

Automatic Sheet metal European Hydraulic Guillotine Shear Plate Cutting machine as LVD-YSD manner
Main Structural Characteristics of Machine,
1. Using UG finite element analysis method, CAD auxiliary design, the frame adopts integral welding and vibration elimination internal stress treatment and other methods to make the machine have higher rigidity and vibration resistance.
2. The three-point rolling guide rail is used to support the knife holder, and the blade gap is manually or motorized (optional) adjusted. The gap value is converted into the value of the shearable plate thickness. The adjustment is convenient and the value is accurate.
3. Adopt adjustable blade support and rectangular four-edges integral long blade, which is convenient to adjust the uniformity of blade gap, improve the cutting quality and prolong the service life of blade.
4. The tandem oil cylinder synchronization system is adopted, and the machine tool is evenly stressed. By adjusting the oil volume of the tandem cylinder, the shear angle can be adjusted more conveniently to meet the needs of shearing different plate thicknesses.
5. When shearing thin plates, the shearing angle can be reduced, the distortion of the parts can be reduced to the minimum, and the incision is straight and without burrs.
6. Rectangular blade, four edges can be used, long service life, easy grinding.
7. Movable blade support facilitates the adjustment of blade clearance uniformity, improves shear quality and prolongs blade service life.
8. The universal conveying ball supporting table is adopted to reduce the labor intensity of the operator.
9. The hydraulic system uses a bladder-type accumulator as an auxiliary energy source, and absorbs the pressure impact of the system at the same time, so that the machine tool runs smoothly and the noise is low.
10. Use shot peening to remove rust and spray anti-rust paint.
Main parts of Machine
1. Main frame including two sides houses, front pressing beam, and front working table.
2. The Blades/knife holder with three-point rolling guide rail.
3. Rectangular four-blade integral long blade.
4. Ingerated hydraulic valves board system, tandem oil cylinder synchronization system.
5. Motorized backgauge device with ball screw and linear guider, inverter motor or servo motor.
6. Line-up lamp device .
7. NC/CNC controller Estun E21s, ELGO P40T, Delem DAC360T,etc...
8. Universal conveying ball supporting table.
9. Front stopper.
10. Bladder-type accumulator.
Technical parameters of HGN-13x3100,
| No. | Name | Value | Unit | Remarks |
| 1 | Max. cutting thickness | 13 | mm | σb≤450N/mm2 |
| 2 | Max. cutting width | 3100 | mm | |
| 3 | Max. cutting force | 580 | kN | |
| 4 | throat | 100 | mm | |
| 5 | Cutting angle | 0.5-2.5 | degree | adjustable |
| 6 | stroke | 8 | Times/min. | |
| 7 | Range of back-gauge | 10-1000 | mm | |
| 8 | Quantity of hold-down | 17 | pc | |
| 9 | Volume of oil tank | 450 | L |
| 10 | Power of main motor | 15 | kW | |
| 11 | Length | 3900 | mm | |
| 12 | Width | 2200 | mm | |
| 13 | Height | 2350 | mm | |
| 14 | Weight of machine | 8700 | kg |
Hydraulic system
1. Introducing advanced European technology and adopting integrated hydraulic control system, it has good reliability.
2. Series cylinder synchronization system is adopted, and the machine is uniformly loaded.
3. Hydraulic system uses skin-bag accumulator as auxiliary energy, absorbs pressure impact at the same time, machine tool runs smoothly and has low noise.
4. The pressing force increases with the increase of shear force.
5. Hydraulic system has overload overflow protection, safe and reliable.
6. The oil pump adopts the internal gear pump of NACHI Company of Japan, which can withstand high pressure and low noise.
7. Sealings are manufactured by Germany MERKEL and Japan NOK.
8. The hydraulic system is equipped with filters with high filtering accuracy.
9. The Shear can work continuously under rated load. The hydraulic system is stable and accuracy.
Electrical System
1. Using Estun NC controller E21s to control back-gauge travelling, or CNC controller ELGO P40T or DELEM DAC360T to control Back-gauge (cutting length), cutting angle, cutting width and blades clearance and rear pneumatic cutting supporting. special for Shearing machine.
5.2. The key electrical components adopt famous brand as Schneider,Siemens,ABB, which conform to international standards, are safe and reliable, have long service life and strong anti-interference ability.
5.3. The electronic control cabinet meets the IP54 protection standard, and the electrical components are arranged in a standard and clearly marked.
5.4. It is equipped with a mobile operating panel and a movable pedal switch for easy operation.
5.5. The equipment has reliable electrical safety measures such as emergency stop and overload protection to ensure the safety of equipment and personnel.
Product parameters:
