| Product Name: | CNC CO2 Laser Cutting & Engraving Machine | Machine Type: | HQ1325M |
|---|---|---|---|
| Condition: | New | Application: | Metallic And Non-metallic Materials Manufacturing Plant, Advertising Industries,Hardware, Furniture |
| Keyword: | CO2 Laser Cutting Machine, CO2 Laser Cutter, CO2 Laser Engraving Machine | Key Selling Points: | Automatic Easy To Operate, Cutting Metal Sheet And Non-metal, Glass, Wooden, Bamboo |
| Function: | Metallic & Non-metallic Sheet Cutting, Metal Sheet Tube Laser Cutting | Cnc Or Not: | Yes |
| Operation System: | Touch Screen | Laser Source: | CO2 Laser Tube |
| Laser Power: | 100W,150W,200W,300W | Laser Mode: | Continuous |
| Working Table: | 1250x2500mm | Max.cutting Thickness: | 0.5-2mm Metal Sheet, 0.5-20mm Non-metal Materials |
| Cooling Mode: | Circle Water Chiller,Water-cooling And Protection System | Focus Adjusting: | None, Or Automatic Adjusting Focus Optional |
| Applied Software: | CorelDraw,Photoshop,AutoCAD,CAM | Cutting Materials: | Metallic And Non-metallic Sheet/plate |
| Dimensions: | 3.1*1.8*1.4m | Color: | Standard Color, Or Customized |
| Weight Of Machine: | 1500kg | Maintenance: | Remote Online Diagnosis And Detection |
| Warranty: | 1 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | CE, ISO,SGS,CCC | ||
| High Light: | 40w co2 laser engraving cutting machine,100w co2 laser engraving cutting machine,100w co2 laser engraver cutter |
||

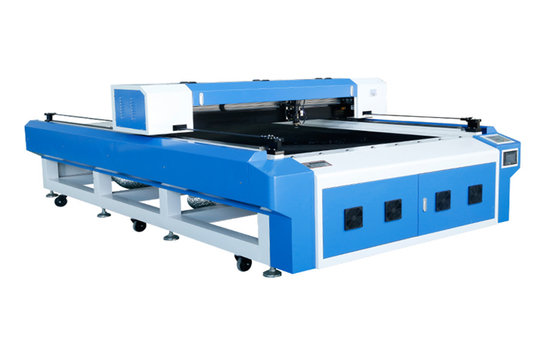

CO2 CNC Laser Cutting and engraving machine processing metal & non-metal materials
Main feature discription:
1. English version Laser cut software supporting 10 commonly used graphic formats.
2. DSP off-line control with USB port interface
3. Imported focusing lenses, choice of 4", 2.5" focal lengths.
4. Focusing is simple by touching two button, takes only 3 seconds, automatic focusing is optional.
6. All models feature a red dot alignment pointer, helping to properly position your work under the laser head
7. Un-limited feed-through door , we can only add the auto-feeding system allows the use of roll material and unlimited sheet length
8. Air asist ,we will provide one set air compressor, you can turn up/down the switch between the laser head to control the strength of air blowing. To avoid getting fired and blow away the dusk /smoke.
9. Exhaust fan & vacuum table, this pulls fumes and debris away from the work piece; the resulting vacuum is strong enough to straighten and flatten thin materials against the work table for cutting and engraving in good focus.
10. The machine includes one set EXLAS, exhaust fan, air assist compressor , one tool box, CD friendly training video and user macnual,and one year warranty.
Technical parameters of CO2 laser marking & cutting machine:
