Name: | Hydraulic Guillotine Shearing Machine, Guillotine Shear | Product Type: | HGO-6x3100 Sheet Metal Cutting CNC Hydraulic Shearing Machine |
---|---|---|---|
Application: | Industrial Metal Cutting,Sheet Metal Industry,Metal Plate Cutting Machine | Cutting Thickness: | 6mm |
Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI Etc Steel Plate | Max. Cutting Thickness: | Carbon Steel 6mm; Stainless Steel 3mm |
Control System: | Estun E21S NC Control,Delem DAC-360T CNC Controller | Rated Power: | 7.5kw |
Color: | Gray White, Customizable | Voltage: | 380V,Customized |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Warranty: | 1 Year |
High Light: | steel plate shearing machines PSL,small metal shearing machines PSL,industrial guillotine machines PSL |

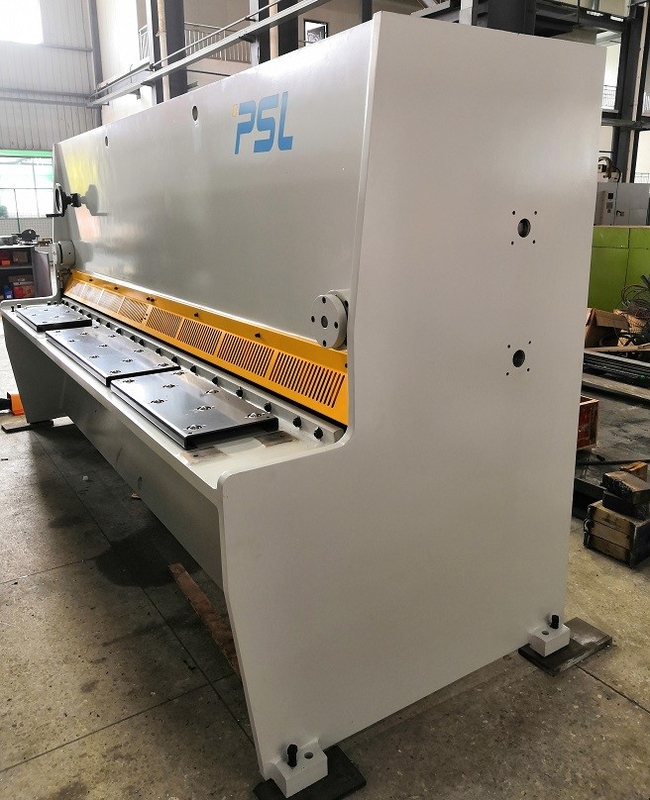

Fast speed NC Sheet metal Hydraulic Guillotine Shearing machine like LVD-YSD Shear
2. Main parts of Machine
2.1. Using computer-aided design. The main frame, upper blades holder and other important parts are analyzed by ANSYS finite element analysis software to ensure the rationality of strength and structure of machine frames.
2.2 The whole welding structure is adopted for the frame and upper blades holder, and the German technology is used for eliminating internal stress. The accuracy is maintained well.
2.3 The shearing machine's two sides pillars, front working-table, pressing beams and upper blade holder are machined and formed by boring and milling machine at one time, which ensures the verticality and parallelism of each assemblying surface.
2.4 Using shot blasting to remove rust and spray anti-rust paint onto welded frames.
3. Technical parameters of Shear HGO-6x3100,
No. | Name | Value | Unit | Remarks |
1 | Max. cutting thickness | 6 | mm | σb≤450N/mm2 |
2 | Max. cutting width | 3100 | mm | |
3 | Max. cutting force | 165 | kN | |
4 | throat | 0 | mm | |
5 | Cutting angle | 0.5-2.5 | degree | adjustable |
6 | stroke | 15-36 | Times/min. | Fast speed |
7 | Range of back-gauge | 10-750 | mm | |
8 | Quantity of hold-down | 17 | pc | |
9 | Volume of oil tank | 170 | L |
10 | Power of main motor | 7.5 | kW | |
11 | Length | 4050 | mm | |
12 | Width | 1750 | mm | |
13 | Height | 1750 | mm | |
14 | Weight of machine | 5500 | kg |
4. Hydraulic system
4.1. Advanced European technology and adopting integrated hydraulic control system, it has good reliability.
4.2. Series cylinder synchronization system is adopted, and the machine tool is uniformly loaded.
4.3. The pressing force increases with the increase of shearing force.
4.4. Hydraulic system has overload overflow protection, safe and reliable.
4.5. The oil pump adopts the internal gear pump of NACHI Japan, which can withstand high pressure and low noise.
4.6. Sealings are manufactured by Germany MERKEL and Japan NOK. They have good sealing performance and long service life.
4.7. Clear and intuitive display of oil level height.
4.8. This machine can work continuously under rated load. The hydraulic system is stable and accuracy.
5. Electrical System
5.1. Using Estun NC controller E21s to control back-gauge travelling,
5.2. The electronic control cabinet meets the IP54 protection standard, and the electrical components are arranged in a standard and clearly marked.
5.3. It is equipped with a fixed operating tpanel and a movable pedal switch for easy operation.
5.5. The equipment has reliable electrical safety measures such as emergency stop and overload protection to ensure the safety of equipment and personnel.
Product parameters:
NameModel |
6x2500
|
6x3100
|
6x4000
|
Maximum shear thickness |
|
|
|
Ordinary steel mm |
6
|
6
|
6
|
Stainless steel mm |
3
|
3
|
3
|
Cutting length mm |
2500
|
3100
|
4000
|
Shear force kN |
170
|
145
|
170
|
Backgauge travel mm |
750
|
750
|
750
|
Cutting angle adjustment ° |
0.5-2.5
|
0.5-3
|
0.5-2.5
|
Strokes per minute |
14-45
|
12-45
|
10-45
|
Throat mm |
30
|
30
|
30
|
Number of pressing feet |
13
|
17
|
twenty two
|
Fuel tank volume L |
110
|
110
|
200
|
Motor power kW |
7.5
|
7.5
|
7.5
|
Weight kg |
4700
|
5500
|
8000
|
Size length mm |
3445
|
4045
|
4995
|
Width mm |
1727
|
1737
|
1862
|
Height mm |
1615
|
1750
|
1900
|
