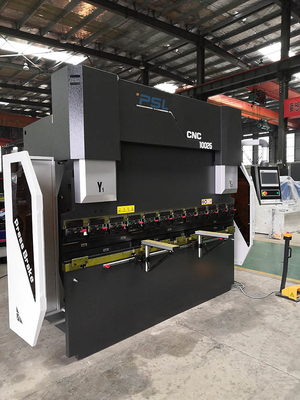

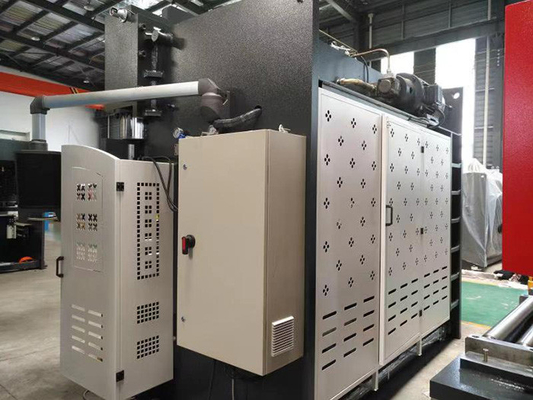

CNC Torsion Bar Synch. Hydraulic Press brake bending machine X Y axis servo motors
Features:
2. Torsion bar forced synchronization of mechanical,limit stopper balance,with high precision.The forged material Bar body has good rigidity and elasticity, and has easy adjustment device.
3. Integrated high quality hydraulic transmission system, large range of speed regulation thanks to transmission of the ram, stable and reliable performance.Siemens motors, Sunny pumps and Rexroth hydraulic valves are used.
4. Adjustment mechanism of ram independent from oil cylinder assembly to enhance sealing effect,Y-axis servo motor driving.
5. Top tool is fitted with Rapid clamping helpful to assembly easily, 4-way forging V Die with many different openings.
6. The back gauge (X-axis) is welded by steel structure and has high rigidity. It is driven by SERVO motor, ball screw and linear guide to ensure high precision. The height of the finger can be quickly adjusted manually .
7. Front ram cover with LED light to fine work in dark place or night.
II. Main Technical data of WC67K-80/3200:
1 | Nominal pressure(KN) | 800 |
2 | Max. Bending length (mm) | 3200 |
3 | Dis. Between house(mm) | 2560 |
4 | Throat depth(mm) | 320 |
5 | Ram stroke(mm) | 120 |
6 | Approaching speed(mm/s) | 60 |
7 | Working Speed(mm/s) | 7 |
8 | Returning speed (mm/s) | 70 |
9 | Max. opening height(mm) | 350 |
10 | Main motor power(KW) | 7.5 |
11 | Dimensions(m)L*W*H | 3.5*1.55*2.3 |
12 | Weight(ton) Appro. | 6.0 |
III. Main components:
Sealings: B+S Germany, NOK Japan
Direction valves: Bosch-Rexroth or other fanous brand
Pluging valves: China
Oil pump: ALLEAD GERMANY
Switch, Button: SCHNEIDER
Relay, Contactor: SCHNEIDER
Inverter: DELTA Taiwan, Schneider
NC controller: ESTUN E300, DELEM DA41T, TP10S,SNC53
Foot switch : KACON South Korea
Model | Force | Max. Length | Vertical | Depth | Stroke | Max. Opening | Power | L*W*H(mm) | Weight |
---|---|---|---|---|---|---|---|---|---|
40t/2000 | 400 | 2000 | 1650 | 220 | 100 | 320 | 5.5 | 2000*1200*1910 | 2750 |
40t/2500 | 400 | 2500 | 1850 | 220 | 100 | 320 | 5.5 | 2500*1200*1910 | 3000 |
50t/2200 | 500 | 2200 | 1850 | 220 | 100 | 320 | 5.5 | 2000*1200*1910 | 2950 |
50t/2500 | 500 | 2500 | 1850 | 220 | 100 | 320 | 5.5 | 2500*1210*2000 | 3400 |
63t/2500 | 630 | 2500 | 1900 | 220 | 120 | 320 | 5.5 | 2500*1300*2210 | 4000 |
63t/3200 | 630 | 3200 | 2560 | 220 | 120 | 320 | 5.5 | 3200*1300*2210 | 4800 |
80t/2500 | 800 | 2500 | 1990 | 320 | 120 | 320 | 7.5 | 2500*1400*2300 | 5700 |
80t/3200 | 800 | 2500 | 2560 | 320 | 120 | 350 | 7.5 | 3200*1500*2300 | 6020 |
80t/4000 | 800 | 4000 | 3000 | 320 | 120 | 350 | 7.5 | 4000*1500*2400 | 7000 |
100t/2500 | 1000 | 2500 | 2020 | 320 | 150 | 400 | 7.5 | 2500*1600*2400 | 6000 |
100t/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 7.5 | 3200*1600*2600 | 6800 |
100t/4000 | 1000 | 4000 | 3000 | 320 | 150 | 400 | 7.5 | 4000*1600*2700 | 8000 |
125t/2500 | 1250 | 2500 | 2020 | 320 | 150 | 400 | 11 | 2500*1600*2400 | 6500 |
125t/3200 | 1250 | 3200 | 2580 | 320 | 150 | 400 | 11 | 3200*1600*2600 | 7200 |
125t/4000 | 1250 | 4000 | 3000 | 320 | 150 | 400 | 11 | 4000*1600*2700 | 8800 |
160t/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1700*2700 | 9500 |
160t/4000 | 1600 | 3200 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 | 10500 |
160t/5000 | 1600 | 4000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 | 13000 |
160t/6000 | 1600 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6300*1900*3200 | 18500 |
200t/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 15 | 3200*1950*2800 | 10500 |
200t/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 15 | 4000*1950*2800 | 12600 |
200t/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 15 | 5000*1950*3100 | 15500 |
200t/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 18.5 | 6000*1950*3300 | 21000 |
250t/3200 | 2500 | 3200 | 2600 | 400 | 250 | 530 | 18.5 | 3250*2000*3200 | 15500 |
250t/4000 | 2500 | 4000 | 3200 | 400 | 250 | 530 | 18.5 | 4000*2000*3400 | 18200 |
250t/5000 | 2500 | 5000 | 4000 | 400 | 250 | 530 | 18.5 | 5000*2000*3400 | 22500 |
250t/6000 | 2500 | 6000 | 5000 | 400 | 250 | 530 | 18.5 | 6000*2000*3400 | 27500 |
300t/3200 | 3000 | 3200 | 2530 | 400 | 250 | 530 | 22 | 3200*2000*3450 | 18500 |
300t/4000 | 3000 | 4000 | 3200 | 400 | 250 | 530 | 22 | 4000*2000*3450 | 22500 |
300t/5000 | 3000 | 5000 | 4000 | 400 | 250 | 530 | 22 | 5000*2000*3450 | 25000 |
300t/6000 | 3000 | 6000 | 5000 | 400 | 250 | 530 | 22 | 6000*2000*3450 | 30000 |
400t/4000 | 4000 | 4000 | 3000 | 400 | 250 | 530 | 30 | 4000*2180*3500 | 25000 |
400t/5000 | 4000 | 500 | 4000 | 400 | 250 | 530 | 30 | 5000*2180*3500 | 29000 |
400t/6000 | 4000 | 6000 | 5000 | 400 | 250 | 530 | 30 | 6000*2180*3800 | 35000 |
500t/4000 | 5000 | 4000 | 3000 | 400 | 250 | 590 | 45 | 4000*2580*3500 | 35000 |
500t/5000 | 5000 | 6000 | 4000 | 400 | 250 | 590 | 45 | 5050*3500*3700 | 44000 |
500t/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6050*3500*3700 | 55000 |
600t/4000 | 6000 | 6000 | 3000 | 400 | 320 | 590 | 55 | 4050*4500*3700 | 45000 |
600t/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6050*4500*3700 | 60000 |
