Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Machine Name: | Pittsburgh Lock Machine |
|---|---|---|---|
| Machine Type: | SA-12HB, SA-15HB | Applicable Industries: | Manufacturing Plant, Construction Works |
| Industry: | Construction Engineering, Air Conditioning, Ventilation Duct | Mainbody: | Sheet & Tube Metal Welded Structure |
| Control Mode: | Electric Switch | Operation: | Electric |
| Producing Materials: | Galvanized Sheet Metal, Stainless Steel Plate, Aluminum Sheet | Core Components: | Engine, Bearing, Gearbox, Motor, Rollers |
| Function: | Multi-functions, 7 Functions | Sheet Thickness: | 0.4-1.5 Mm |
| Power Of Motor: | 1.5 Kw | Dimension(L*W*H): | 1100*650*1160mm |
| Weight: | 260kg | Voltage: | 220V/380V/415V/440V, 50HZ/60HZ, Customized |
| Color: | Gray Black+yellow, Blue+white, Or Customized | After-sales Service Provided:: | Video,Technology Support Online Because Of Covid-19 |
| Warranty: | 1 Year | ||
| High Light: | Duct Production Line hvac,sheet metal lock forming machine,pittsburgh lock forming machine |
||

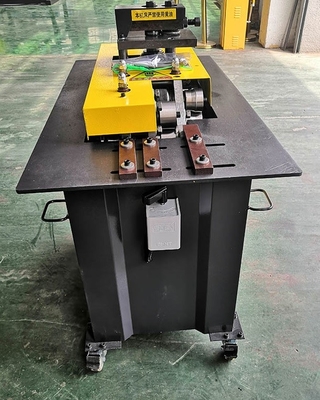

Multi-function Pittsburgh lock machine 1.5mm thick sheet lock forming machine for HVAC
Main Features of Pittsburgh Lock forming machine,
Pittsburgh Lock forming machine is a necessary equipment for HVAC air duct manufacturing.
Multi-function lock forming machine can form 6 shapes (7-function is available) to finish sheet jointing. Six shapes include Pittsburgh(Female), Right angle(Male), Standing seam, C shape locking pin, Curving angle and Z shape.
What’s more, we can customize S shape and snap lock for sheet locking. The standard machine can make 0.5-1.5 mm thickness galvanized sheet.
The lock forming machine usually has two model, one’s max thickness is 1.2 mm, another’s max thickness is 1.5 mm.
Special high-strength rolling reel made of GCR15 steel which can prolong the machine life by more than 5 times and greatly heighten the efficiency.
Main Technical Parameters Pittsburgh lock machine,
