| Machine Name: | CNC Duct Auto Line-V | Condition: | New |
|---|---|---|---|
| Mainbody: | Sheet & Tube Metal Welded Structure | Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining |
| Control Mode: | CNC System PLC Control | Operation: | Automatic |
| Producing Materials: | Galvanized Sheet Metal, Stainless Steel Plate | Industry: | Construction Engineering, Air Conditioning, Ventilation Duct |
| Max Width: | 1250mm/1500mm | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Sheet Thickness: | 0.5-1.2 Mm | Dimension(L*W*H): | 18500 X 2000 X 1500 |
| Voltage: | 220V/380V/415V/440V, 50HZ/60HZ, Customized | Color: | Gray Black+yellow, Blue+white, Or Customized |
| After-sales Service Provided:: | Engineers Available To Service Machinery Overseas; Technology Support Online Because Of Covid-19 | ||
| Highlight: | Auto Duct Production Line,Duct Production Line 5 V,auto line duct machine |
||

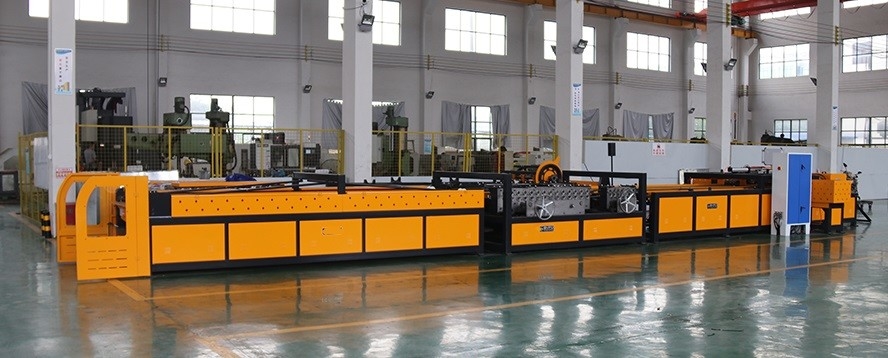

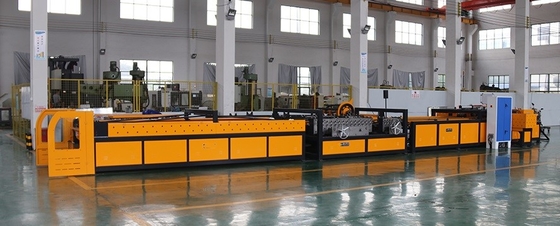

Ventilation industry CNC Duct Auto Production Line 5 V
Feature of Duct manufacture auto-line V:
It can make TDF flange / angle steel flange. The capacity of day is 1000-2500 square meters. Users can only input sizes of duct you need, then this auto line will automatically complete unwinding, leveling, punching, shearing, Pittsburgh lock forming, TDF/Angle steel flange forming and C-cleat flange and folding into rectangular ducts.
Features:
● Liner structure；streamline in production and small occupation;
● All coilers being driven by the speed adjustable independent frequency converter motor ;
● with the material processing saving mode, users can reduce the waste
of sheet metal significantly to less than 20mm per material coiler
● with the feature of servo motor driven in folding process and accurate positioning, it has the obvious advantage, especially when make “口”
shaped duct .
● only need one worker to operate the machine , its production capacity can reach 2000 M3 each 8 hours
● the speed of each part can be adjusted as users’request.
● Support production data records export and print function (optional)
Main imported configuration:
● Beijing Huade with hydraulic system
● Japan Omron encoder
● Japan MITSUBSHI controller FX3GA-40MR-CM
● Taiwan Hiwin linear guide
● Schneider electrical system
BASIC EQUIPMENTS:
● Two electric feeding coil candles (2900*1900*950 mm)
● A material supporting frame
● A main machine auto line II, including leveling, beading, punching and cutting.
● A movable high-speed Pittsburgh lock forming machine
● A duplex angle steel flange forming machine
● A duplex TDF flange forming machine
● Three servo motors power material feeder
● Three Servo Drivers
● A hydraulic folding machine
● A CNC System PLC controller
Technical details:
| Model No. | PSL5-1.2x1300 |
| Max Coil Width | 1300mm |
| Thickness Range | 0.4-1.2mm |
| Speed | 0-18m/min |
| Power | 24.5 kw |
| dimensions | 18.5*2.8*1.5m |
| Shearing Tolerance | ±0.5mm |
| Diagonal Tolerance | ±0.5mm |
| Weight | 10 ton |
