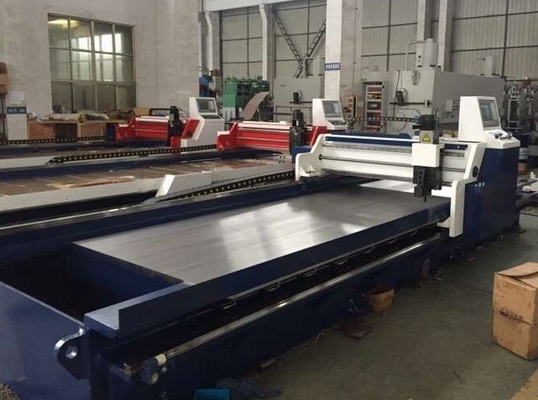

Sheet Metal CNC V Groove Cutting Machine Full Servo V-Cut Scoring Machine

Full servo V-CUT Scoring Machine Sheet Metal CNC V-Groove Cutting Machine

Features of V-cut,

1. Using the V-cut scoring machine planed  to cut V grooves in metal materials reduces the bending force, and is especially suitable for bending long sheet metal pieces in a bending machine with a small tonnage.

2. Using the machine, users can etch designs into the metal material, as well as perfectly place the material before bending. This ensures the accuracy of the bent side's length.

3. The V-cut scoring machine controls the depth of the sheet metal grooving, thus ensuring special bending material can be processed in traditional bending machines.

The performance characteristics,

Fast and grooving precise positioning.

Adaptive forward,can adapt to different status of sheet metal.

High precision workable.

Easy operation,stable performance and reliable.

After use fixture of knife,knife change need not reset to zero.

High efficiency,energy saving,environmental protection.

1.1 Sheet metal slotting machine frame and the beam are all box-shaped. After finite element optimization design, the all-steel welding is tempered to eliminate residual stress.

​1.2 Metal sheet V slotting machine adopt Taiwan EASYCAT or SYNTEC industrial-control controller and closed-loop servo system: easy, flexible, fast, efficient and low noise.

1.3 CNC controller, supporting full-automatic operation, 3-blades can run simultaneously significantly improves the grooving efficiency.

1.4 Stainless steel V grooving machine with 4 control axes (X,Y1,Y2,Z axes), hydraulic hold-down device, the gantry and tool holder make round-trip move together when working.

1.5 V-groove machine use ball screw & roller heavy-duty guide rail.

1.6 This machine equipped with automatic lubrication system: low wear, fine processing, ensuring machining accuracy and high dynamic response characteristics.

1.7 The compressed air/water blowing and cooling system not only prevents the cutting waste from scratching the surface of the workpiece, but also improves the life of the knifes.

Main Technical parameters,

Main parts instruction,
