| Application: | Industrial Metal Cutting | Name: | CNC Hydraulic V-groove Machine |
|---|---|---|---|
| Machine Type: | PSL-1550x4000 | Main-body: | Steel Plates Welded Frame |
| Control: | CNC System EASYCAT, SYNTEC | Driving: | All Servo Driving |
| Structure: | Gantry Table Type | Rated Power: | 9KW |
| Max. Cutting Depth Width: | 2.5mm | Power Source: | Electricity,Hydraulic |
| Dimension(l*w*h): | 6100*2300*1700 | Weight: | 9500kg |
| Voltage: | 380V/220V, 50HZ/60HZ Optional | Color: | White,Gray-black+Red, Customer Designed |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| Highlight: | cnc v groove machine Full Servo,cnc v grooving machine for sheet metal PSL,v groove cnc machine PSL |
||

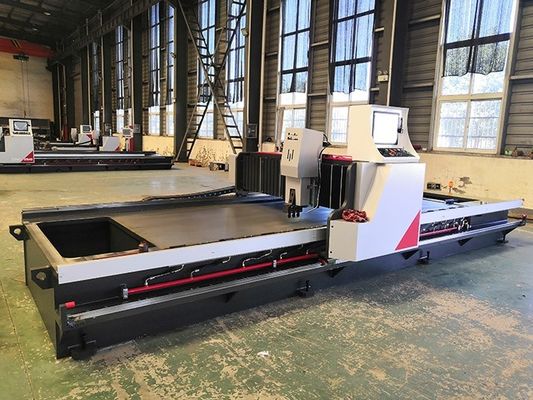

Metal sheet Stainless steel CNC Hydraulic V-groove machine V groove cutter V-cutting machine
The performance characteristics,
1.1 Sheet metal slotting machine frame and the beam are all box-shaped. After finite element optimization design, the all-steel welding is tempered to eliminate residual stress, and the overall rigidity is good and the precision is good.
1.2 Stainless steel V grooving machine with 4 control axes, hydraulic hold-down device, the gantry and tool holder make round-trip move together when working.
1.3 V-groove machine use ball screw & roller heavy-duty guide rail, D1N6-grade precision helical gear, planetary reducer: balance, accurate.
1.4 CNC open controller, supporting full-automatic operation, 4-blades can run simultaneously significantly improves the grooving efficiency.
1.5 Metal sheet V slotting machine adopt Taiwan EASYCAT or SYNTEC industrial-control controller and closed-loop servo system: easy, flexible, fast, efficient and low noise.
1.6 This machine equipped with automatic lubrication system: low wear, fine processing, ensuring machining accuracy and high dynamic response characteristics.
1.7 The compressed air/water blowing and cooling system not only prevents the cutting waste from scratching the surface of the workpiece, but also improves the life of the knifes.
1.8 This machine has the function of self planing, after a long time if the surface is not smooth or defective, can use from the plane, makes the machine take on an altogether new aspect.
Main Technical parameters,
| Thickness range for plate to be processed | 0.6mm-4mm(stainless steel) |
| Thickness range for plate to be processed | 0.6mm-4mm(carbon steel) |
| Max. processed depth each time | 0.6mm |
| Max. processed depth | 2.5mm |
| Length for plate to be processed | 4000mm |
| Width velocity | 1550mm |
| V type trough margin minimum distance | 6mm |
| Forward Cutting speed | 0-70m/min |
| X axis returning speed | 0-70m/min |
| Y axis minimum unit set | 0.01 mm |
| Y axis minimum positioning accuracy | ±0.05mm |
| Z axis minimum unit set | 0.01 mm |
| Positioning accuracy | ±0.05mm |
| Z axis stroke | 50mm |
| X-axis inverter/servo motor | 5.5KW |
| Z axis servo motor | 1KW |
| Y1,Y2 axis servo motor | 1KW |
| Hydraulic system | 1.5KW/8L/10MPa |
| Knife | 3sets |
| 1500*4000 | 6000mm*2550mm*1660mm |
| Pneumatic pressure | 6Map-8Map |
| Weight | 9.5T |
| Main power | 380V/50HZ/3Phase |
Main parts instruction,
| CNC system |
Taiwan SYNTEC or ESAYCAT 19” HD LCD Touch screen |
| Servo units(X,Y,Z) |
EASYCAT Taiwan DELTA Taiwan |
| Cooling system | Water mist cooling pump |
| Knife | China (South Korea alloy knife head) |
| Ball screw | TBI Taiwan |
| Linear guiding | HIWIN Taiwan |
| Gear & rack | YYC Taiwan |
| Hydraulic system | Brand of Taiwan |
| Wire cables | Germany IGUS |
| Low voltage electrical appliances | Schneider |
| Limited switch |
Brand of Japan or Germany |
