| Name: | Vertical CNC V-cut Groove Machine | Machine Type: | RKC-1250x4000 |
|---|---|---|---|
| Structure: | Vertical Style | Control: | CNC System EASYCAT,HUST |
| Driving: | All Servo Units Driving | Rated Power: | 7.5KW |
| Max. Cutting Depth Width: | 3mm | Power Source: | Electricity,Pneumatic |
| Max. Cutting Speed: | 60m/min | Pneumatic Front Holddown: | 11 Groups |
| Knifes: | 5 Groups | Weight: | 9000kg |
| Voltage: | 380V/220V, 50HZ/60HZ Optional | Dimension(l*w*h): | 5800*3100*1800 |
| Color: | White,Customer Designed | Application: | Industrial Metal Cutting |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| High Light: | CNC V cut Grooving machines PSL,V cut Grooving machines for Stainless sheets PSL,v groove cutter machines PSL |
||

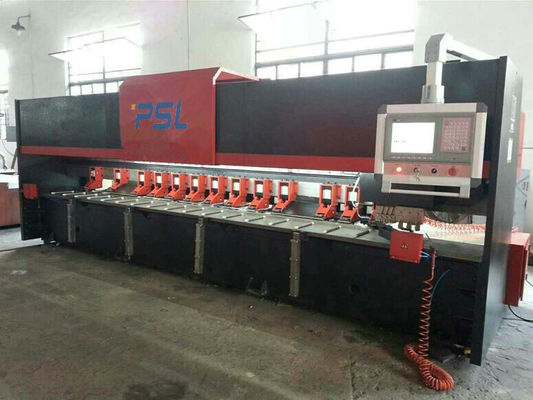

Vertical pneumatic CNC V-cut Grooving machine for Stainless sheets
Product Description,
1, Our machine use structure design,Overall rigidity, small deformation.
2, This machine beam is fixed , has feeding system,worktable levelness is within ±0.03mm.
3, Blade rack move right and left by synchronous belt, V-cutting process is very stable,and the cutting surface is smooth.
The performance characteristics,
The CNC V grooving machine ( stainless steel V-slot machine) is suitable for elevators, mounting materials, stainless steel processing, household appliances, prop display and other industries that require high-precision processing of plates.
It is designed and manufactured according to the special needs of the middle and high-end decoration industry, elevator manufacturing and other industries.
It can perform V-shaped grooves on stainless steel sheets, iron plates, copper plates and other materials. New metal sheet groovers such as special accessories can also perform work such as grinding, polishing, and wire drawing on thin metal sheets and profiles.
Detailed Images,
1. Fixture,
3. Back-feeding,
Evacuation equipment using material structure, making the equipment are not in the feeding and discharge of surface damage of sheet. Servo motor control tool and feeding device, planing and positioning precision, servo motor feeding, high precision and reliable.
Main Technical parameters,
| Thickness range for plate to be processed | 0.6mm-4mm(stainless steel) |
| Thickness range for plate to be processed | 0.6mm-4mm(carbon steel) |
| Max. processed depth each time | 0.6mm |
| Max. processed depth | 3mm |
| Length for plate to be processed | 3100mm/4000mm |
| Width velocity | 1250mm/1550mm |
| V type trough margin minimum distance | 8mm |
| Forward Cutting speed | 0-60m/min |
| X axis returning speed | 0-60m/min |
| Y axis minimum unit set | 0.01 mm |
| Y axis minimum positioning accuracy | ±0.05mm |
| Z axis minimum unit set | 0.01 mm |
| Positioning accuracy | ±0.05mm |
| X-axis inverter/servo motor | 5.5KW |
| Z axis servo motor | 1KW |
| Y axis servo motor | 1KW |
| 1500*3000 | 5300mm*2550mm*1560mm |
| Knife | 3+2 sets |
| 1500*4000 | 5800mm*3100mm*1860mm |
| Pneumatic pressure | 6Map-8Map |
| Weight | 9.0T/10.5T |
| Main power | 380V/50HZ/3Phase |
Main parts instruction,
| CNC system | Taiwan HUST or ESAYCAT 19” HD LCD Touch screen |
| Servo units(X,Y,Z) | EASYCAT Taiwan/ YASKAWA Japan |
| Cooling system | Water mist cooling pump |
| Knife | China (South Korea alloy knife head) |
| Ball screw | TBI or ABBA Taiwan |
| Linear guiding | HIWIN Taiwan |
| Gear & rack | YYC Taiwan |
| Hydraulic system | Brand of Taiwan |
| Wire cables | Germany IGUS |
| Low voltage electrical appliances | Schneider |
| Limited switch |
Brand of Japan or Germany |
