Sheet metal Slotting Gantry table CNC V-cut grooving machine

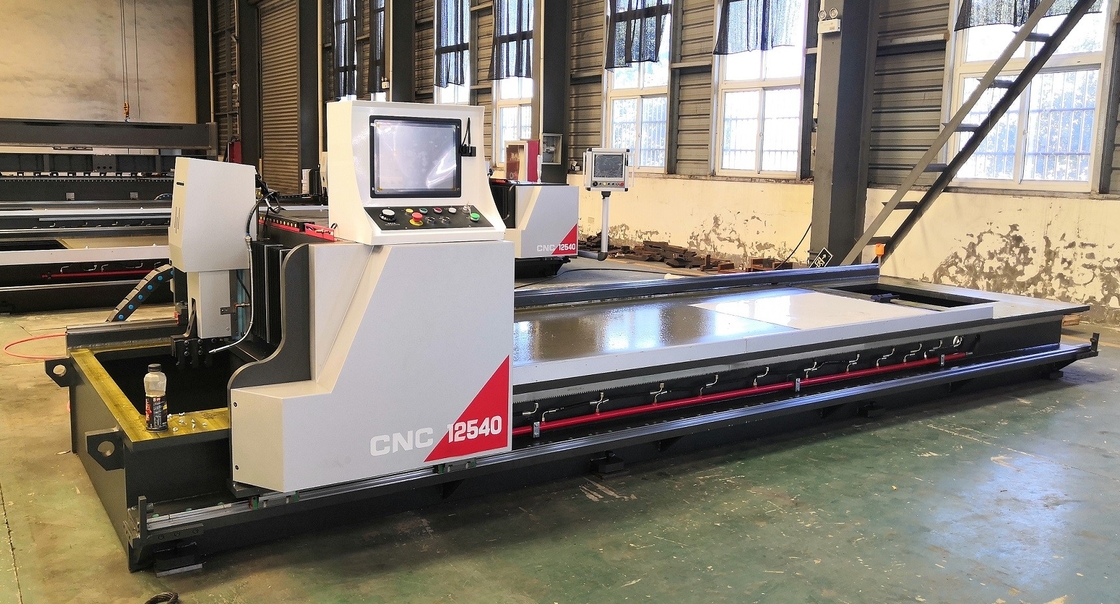

Introduction of the Gantry type V-cut,

•  The machine frame, beam adopts a welding structure design, the overall good rigidity, small deformation.

•  The base is fixed, the application of helical gear, rack drive the beam moving, cutting. Servo driver adjusts speed,the cutting process is stable and efficient, smooth cutting surface.

•  The machine for four axis CNC machining, high precision, large processing range.

•  The machine are respectively provided with pressure and end press,hydraulic clamping, pressure adjustable, reliable press.

•  This machine has the function of self planing, after a long time if the surface is not smooth or defective, can use from the plane, makes the machine take on an altogether new aspect.

The performance characteristics,

• Forward and backward the plates holder (Y1 axis) movement, up and down (Z axis) movement and front and rear (Y2 axis) movement of the end press material are controlled by CNC system, AC servo motor drive, ball screw drive, high control precision, accurate positioning Features.

​

• The left and right (X-axis) movement of the beam is driven by an Servo unit speed adjustable and the helical gear and the rack-and-pinion drive have the characteristics of high speed and strong load capacity.

​

• The hydraulic clampinging system can adaptively press the side of the workpiece and the feeding side according to different thicknesses, which is one of the effective measures to ensure the processing precision and repeatability.

​

• The compressed air/water blowing and cooling system not only prevents the cutting waste from scratching the surface of the workpiece, but also improves the life of the knifes.

​

• The V-cut machine uses 3 knives to process "V" slot, so the cutting amount is evenly distributed and the deformation of the workpiece is reduced.

Main Technical parameters,

Main parts instruction,
