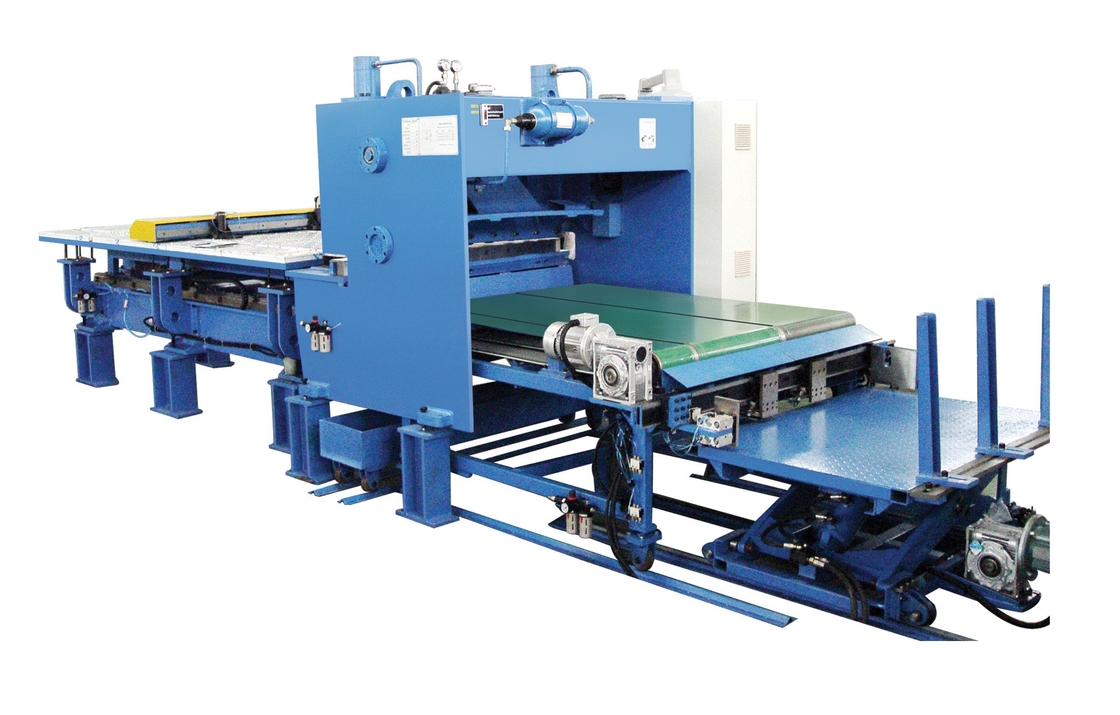

| Name: | 3 Meter Mechanical Guillotine Shear Automatic | Condition: | New |
|---|---|---|---|
| Color: | Blue + White, Or Customized | Driving: | Inverter |
| Back-gauge: | T-type Screw, Traveling 650mm | Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI Etc Steel Plate |
| Control Mode: | NC Controller Estun E10,E21s | Voltage: | Customized,220V/380V/400V 50HZ/60HZ |
| After-sales Service Provided: | Video Technical Support, Online Support | Warranty: | 2 Years |
| High Light: | Mini Cnc Hydraulic Shearing Machine,Cnc Hydraulic Shearing Machine 3Meter,3Meter Mechanical Guillotine Shear Automatic |
||
1. Using computer CAD design. The frame, blades slider and other important parts are analyzed by ANSYS finite element analysis software to ensure the rationality and strength of the frame and structure. Full welded machine frame structure.
2. A brake motor driving through a shaft -mounted speed reduction unit and controlled by selector switch for single or continous strokes, provides quiet instantenous engament. different from traditional driving method of Mechanical Shear.
3. It's one of the most advance miniature mechanical shear, and enjoyed good reputation both at home and at overseas.
the small cuting angle and inclined shearing direction reduces bowing and twist to minimum.
Blade clearance is easily adjusted by manual Quick Set device.
4. NC Controller Estun E10 or E21s to control and drive the back-gauge.
Specifications of Shear Q11D-3.5x1250,
| Specification | Q11D-3.5x1250 |
| Max. Cutting thickness |
3.5mm (Mild steel) |
| Max. Cutting width | 1250mm |
| Strokes | 40/min |
| Backgauge stroke | 10-650mm |
| Shear angle | 1.5Degree |
| Height of working table | 800mm |
| Width of working table | 400mm |
| Main servo motor power | 5.5kw |
| Dimensions: | 1860*2210*1180 |
| Net weight Appro. | 1.5Tons |
| Volt. |
380V,50HZ
|
| Optional model | Manufacturer | Remarks | |
|---|---|---|---|
| CNC system | E10 E21S |
|
|
| Hydraulic system | None |
|
|
| Back gauge |
AC motor
Ball screw + Linear guider(Optional) |
PSL |
|
| Main power |
Normal motor |
WN | |
| Front work table | Support bar + platform | PSL | |
| Security | Front steel fences + Back safe sensor protection (Optional) | PSL | |
| Back supporting device | None | ||
| Blade clearance | Manual | PSL | |
| Electric | Schneider Relay,Contactor | Schneider | |
| Foot switch | Kaikun vertical switch | Kaikun |
