Remarks: This parameter is based on 2019 desgin. If the parameters are not updated in time, please understand and contact with us by Chat online or email. THANKS.
|
|
Product Details:
Payment & Shipping Terms:
|
| Name: | NC Hydraulic Guillotine Shear | Type: | QC11K-25x3100 Thick Sheet Metal Guillotine Shearing Machine |
|---|---|---|---|
| Application: | Sheet Metal Industry,Metal Plate Cutting Machine | Cutting Material: | Stainless Steel Carbon Steel Aluminum,MS/SS/GI Etc Steel Plate |
| Control Mode: | NC Controller Estun E21s; CNC Controller ELGO P40T,Delem DAC360T | Max. Cutting Width (mm): | 2500/3200/4000/6000 Etc |
| Max. Cutting Thickness (mm): | 8/12/16/20/25/30 Etc | Throat Gap: | 100mm, Option 150-500mm |
| Main Motor: | Normal AC Motor | Back-gauge Driving: | Inverter, Servo Driver |
| Back-gauge: | Ball Screw + Linear Guider, Traveling 1000mm | Color: | Gray-black + White Or Customized |
| Voltage: | 220V/380V/400V 50HZ/60HZ,Customized, | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| Warranty: | 1 Years | ||
| Highlight: | 20mm shearing machine,20mm CNC shearing machine,CNC shearing machine 220v |
||

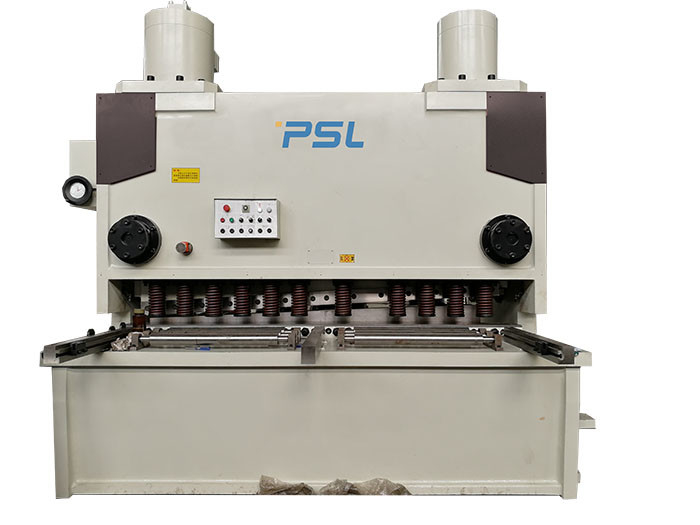

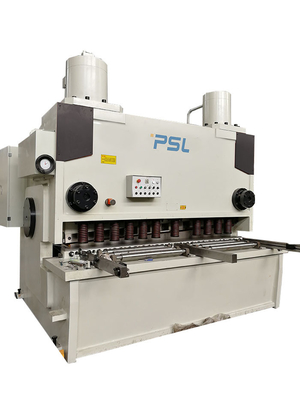

Heavy duty thick steel plate guillotine shear Standard parts:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. 4-Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel plates
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm with Meter and other Front Support Arms
7. Estun E21S NC control
8. ELGO P40T or DELEM DAC360T CNC controll (Optional) Back-gauge, cutting angle, cutting width and blade clearance.
9. Bosch-Rexroth or Yuken Hydraulic system
10. Schneider Electrics
11. Delta or LG inverter to drive back-gauge AC motor
12. Back-gauge servo motor driving is optional
13. Back-gauge ball screw and polished rod with 0,05 mm accuracy.
15. Safe guard is standard meeting CE regulations.
Hydraulic system
Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch-Rexroth or YUKEN .All pipes, flange and joint with vibrations proof and leakage proof design and setting All seals in cylinder is Volqua or NOK from Japan,the most famous brand,good quality and high performance.
The tandem oil cylinder synchronization system is adopted, and the machine is evenly stressed. By adjusting the oil volume of the tandem cylinder, the shear angle can be adjusted more conveniently to meet the needs of shearing different plate thicknesses.
Hydraulic system is added Cooling Chiller special for hot area(Optional)
Blade Adjust and Cutting Precision:
Shearing angle and Blades clearance is Variable according to plate thickness, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Function of sections shearing, function of aligning with light. Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
Specifications of Shear QC11K-25x3100,
| Specification | QC11K-25x3100 |
| Max. Cutting thickness |
25mm (Mild steel) 12mm (stainless steel) |
| Max. Cutting width | 3100mm |
| Strokes | 4-30 times/min |
| Backgauge stroke | 10-1000mm |
| Shear angle | 0.5-3.0Degree |
| Depth of throat | 100mm |
| Height of working table | 900mm |
| Width of working table | 600mm |
| Main servo motor power | 37kw |
| Dimensions: | 4000x2370x3200 |
| Net weight Appro. | 23.5Tons |
| Volt. |
380V,50HZ
|
| Optional model | Manufacturer | Remarks | |
|---|---|---|---|
| CNC system |
E21s P40T |
ELGO DELEM |
|
| Inverter | Delta, INVT | TW | |
| Hydraulic system | Main solenoid valves |
Rexroth YUKEN |
|
| Back gauge |
AC motor Ball screw + Linear guider |
PSL Taiwan |
|
| Oil pump | Inner Gear oil pump |
Sunny |
|
| Main power |
AC motor |
WN | |
| Front work table | Special pallet and ball rack | PSL | |
| Security | Front steel fences + Back safe sensor protection (Optional) | PSL | |
| Blade clearance |
Manual Motorized (optional) |
PSL | |
| Electric components | Schneider Relay,Contactor | Schneider | |
| Foot switch | Kacon vertical switch | Korean | |
| Deep throat | 150mm -500mm(Optional) | PSL |
| Model |
Max. Tkn. |
Yield strength | Max. Length | Angle | X.Stroke | Power | L*W*H(mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| QC11K-6*2500 | 6mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 7.5kW | 3140*1740*2040 | 4800Kg |
| QC11K-6*3200 | 6mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 7.5KW | 3750*1770*2150 | 5800Kg |
| QC11K-6*4000 | 6mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4830*1840*2150 | 7500Kg |
| QC11K-6*5000 | 6mm | ≤450kN/cm | 5000mm | 0.5-2.5° | 750mm | 15KW | 5830*1840*2150 | 13000Kg |
| QC11K-6*6000 | 6mm | ≤450kN/cm | 6000mm | 0.5-3° | 750mm | 15KW | 6480*2100*2300 | 18000Kg |
| QC11K-8*2500 | 8mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 750mm | 11KW | 3040*1700*1700 | 5500Kg |
| QC11K-8*3200 | 8mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 750mm | 11KW | 3860*1700*1700 | 6200Kg |
| QC11K-8*4000 | 8mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 750mm | 11KW | 4640*1700*1700 | 7900Kg |
| QC11K-8*5000 | 8mm | ≤450kN/cm | 5000mm | 0.5~3° | 750mm | 18.5KW | 5400*2400*2000 | 13500Kg |
| QC11K-8*6000 | 8mm | ≤450kN/cm | 6000mm | 0.5~3° | 750mm | 22KW | 6480*2100*2350 | 19000Kg |
| QC11K-8*8000 | 8mm | ≤450kN/cm | 8000mm | 0.5~3° | 750mm | 22KW | 8580*2130*2350 | 29500Kg |
| QC11K-10*2500 | 10mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 950mm | 15KW | 3040*1800*1700 | 6500Kg |
| QC11K-10*3200 | 10mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 950mm | 11KW | 3850*1830*1900 | 7500Kg |
| QC11K-10*4000 | 10mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 950mm | 15KW | 4650*2100*2000 | 11000Kg |
| QC11K-10*5000 | 10mm | ≤450kN/cm | 5000mm | 0.5~2.5° | 950mm | 15KW | 5750*2100*2000 | 16000Kg |
| QC11K-10*6000 | 10mm | ≤450kN/cm | 6000mm | 0.5~2.5° | 950mm | 15KW | 6500*2100*2300 | 24000Kg |
| QC11K-10*8000 | 10mm | ≤450kN/cm | 8000mm | 0.5~2.5° | 950mm | 15KW | 6800*2100*2300 | 32000Kg |
| QC11K-13*2500 | 13mm | ≤450kN/cm | 2500mm | 0.5-2.5° | 1000mm | 15KW | 3285*1830*2390 | 7500Kg |
| QC11K-13*3200 | 13mm | ≤450kN/cm | 3200mm | 0.5-2.5° | 1000mm | 15KW | 3855*1830*2390 | 9500Kg |
| QC11K-13*4000 | 13mm | ≤450kN/cm | 4000mm | 0.5-2.5° | 1000mm | 18.5KW | 4850*1830*2390 | 12500Kg |
| QC11K-13*6000 | 13mm | ≤450kN/cm | 6000mm | 0.5~3° | 1000mm | 30KW | 6850*1930*2650 | 30000Kg |
| QC11K-13*8000 | 13mm | ≤450kN/cm | 8000mm | 0.5~3° | 1000mm | 30KW | 8950*2130*2850 | 46000Kg |
| QC11K-13*9000 | 13mm | ≤450kN/cm | 9000mm | 0.5~3° | 1000mm | 45KW | 9980*2130*2850 | 65000Kg |
| QC11K-13*10000 | 13mm | ≤450kN/cm | 10000mm | 0.5~3° | 1000mm | 45KW | 11050*2500*3100 | 85000Kg |
| QC11K-16*2500 | 16mm | ≤450kN/cm | 2500mm | 0.5~3° | 1000mm | 22KW | 3440*1940*2830 | 9500Kg |
| QC11K-16*3200 | 16mm | ≤450kN/cm | 3200mm | 0.5~3° | 1000mm | 22KW | 4010*1940*2830 | 11000Kg |
| QC11K-16*4000 | 16mm | ≤450kN/cm | 4000mm | 0.5~3° | 1000mm | 30KW | 5010*1980*2830 | 15500Kg |
| QC11K-16*5000 | 16mm | ≤450kN/cm | 5000mm | 0.5~3.0° | 1000mm | 30KW | 5900*2600*2830 | 25000Kg |
| QC11K-16*6000 | 16mm | ≤450kN/cm | 6000mm | 1~3.0° | 1000mm | 37KW | 7000*2400*3600 | 36000Kg |
| QC11K-16*8000 | 16mm | ≤450kN/cm | 8000mm | 1~3.0° | 1000mm | 45KW | 8900*2900*3430 | 75000Kg |
| QC11K-20*2500 | 20mm | ≤450kN/cm | 2500mm | 1~3° | 1000mm | 30KW | 3440*1980*2830 | 14000Kg |
| QC11K-20*3100 | 20mm | ≤450kN/cm | 3100mm | 1~3° | 1000mm | 30KW | 4010*1900*2830 | 17000Kg |
| QC11K-20*4000 | 20mm | ≤450kN/cm | 4000mm | 1~3.0° | 1000mm | 37KW | 4850*2600*2900 | 22000Kg |
| QC11K-20*6000 | 20mm | ≤450kN/cm | 6000mm | 1~3.0° | 1000mm | 55KW | 6700*3000*3000 | 54000Kg |
| QC11K-25*2500 | 25mm | ≤450kN/cm | 2500mm | 1~3.0° | 1000mm | 37KW | 3440*1900*2830 | 25000Kg |
| QC11K-25*3100 | 25mm | ≤450kN/cm | 3100mm | 1~3.0° | 1000mm | 37KW | 4000*2370*3200 | 23500Kg |
Remarks: This parameter is based on 2019 desgin. If the parameters are not updated in time, please understand and contact with us by Chat online or email. THANKS.
