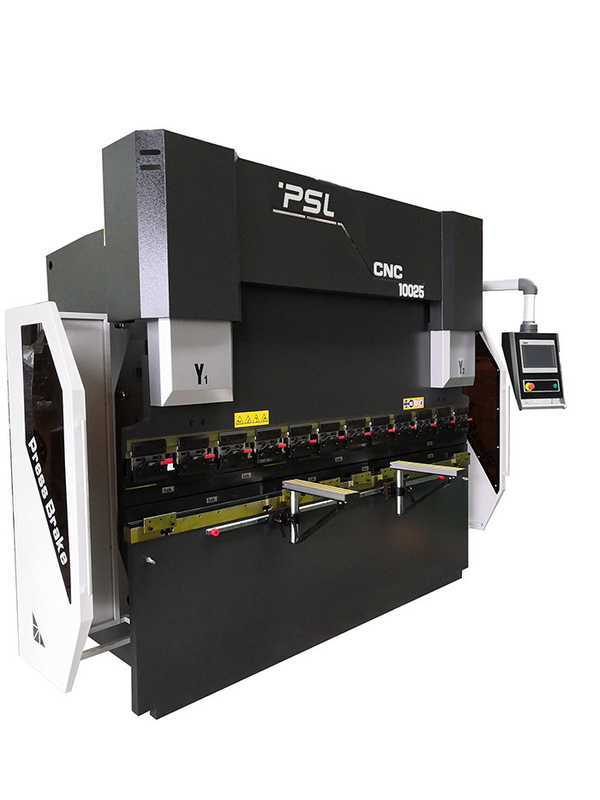

135T 10ft Electro Hydraulic Sheet Bending Machine CNC Plate Bending Machine

135T 10ft Electro-hydraulic synchronization CNC Press Brake sheet metal bending machine







Basic Parameters:

Serial No.	Name	Unit	HPE135/3100
1-	Pressing Force	Kn	1350
2-	Max.bending Length	mm	3100
3-	Distance Between Frames	mm	2600
4-	Max Opening Height	mm	500
5-	Ram Stroke	mm	200
6-	Throat Depth	mm	400
7-	Approach Speed	mm / sec	150
8	Working Speed	mm / sec	10
9	Return Speed	mm / sec	110
10	Y1, Y2-axis Precision	mm	0.02
11	X-axis Back Gauge Stroke	mm	600
13-	Work piece straightness	mm/m	≤0.03
14-	X and R axis accuracy	mm/m	0.05
15-	Fixed Front Arms	pcs	2
16-	Back gauge Finger	pcs	3
17-	V-axis Crowning	Mechanical Crowning
18-	CNC Control Axes	Y1, Y2, X,R,+V
19-	Main Motor Power	kw	11
20-	CNC System	DELEM DA53T
21	Length of machine	mm		4200
22	Width of machine	mm		2100
23	Height of machine	mm		2570
24	Weight of machine	kg		8700





Basic Configuration:





No	Name	Model/Manufacture
1	CNC System	Holland Delem DA53T, DA58T,DA66T Controller
2	Electrics	France Schneider Electrics
3	Back-gauge	Ball screw + linear guider; 3-4sets of finger moving on linear guider
4	Main Motor	Servo motor Estun or VEICHI
5	Servo Motor	Nanjing Estun
6	Servo Driver	Nanjing Estun
7	Pedal Switch	KACON, South Korea
8	Sealing Ring	BAUSER and Busak+Shamban, Germany

9	Hydraulic System	Rexroth, Germany
10	Oil Pump	Germany ALLEAD high performance & low noise internal gear pump Oil Pump
11	Oil Tube Connector	Germany EMB
12	Top tool and V-Die	One set of standard top tool and V Die
13	Back-gauge	Taiwan Hiwin ball screw and linear guide rail
14	Oil Cylinder	China Taifeng
15	Fast Clamping	Chinese brand
16	Deflection Compensation	Mechanical Compensation/crowning table

17	Grating ruler	Italy GIVI
18	Standard Axis	4 +1(Y1, Y2, X,R,+V )



Principe and Features of the machine:



●  The frame is made of steel sheet welded structure, left and right houses, working table and cylinder base are welded into a whole frame. After welding, the internal stress is eliminated by tempering, so the whole steel is strong and the stability is good.



●  High-frequency hydraulic control technology, faster, more efficient and accurate.



●  Back gauge of CNC Press Brake is brought standard 2 fingers back gauge system, as to complex shapes work pieces, 4 or 5 fingers back gauge system and corresponding dies are available for your choose.



●  According to input sheet metal datas on Press brake, CNC system can automatically calculate and adjust the table deflection compensation yielding uniform length of all work-pieces angles.



● The distance and height of the rear stopper and the stroke of Ram are controlled by CNC system, which is convenient and quick.



● Oil cylinder has been machined with entire flowings to get the best condition, as forged, Quenched and tempered, and fine grinding, and then hard chromium plating and other processes.  finally assembely the import of sealing ring, the phenomenon of oil leakage in customer service.



● The hydraulic system adopts the integrated hydraulic system of oil road to reduce the installation of the pipeline.



● The use of mechanical deflection compensation gives access to uniform full length workpieces. which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged.







Introduction of Main Parts:



--Holland Delem DA-53T System Features:

The DA-50T-series offers easiest CNC programming based on the Delem graphical touch screen user interface. The new compact DA-53T adds a state of the art complete touch control solution for synchronized press brakes.

This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the proven Delem user- interface. It enables direct “hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.

Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.USB interfacing enables fast product and tool backup using USB memory sticks.

The standard machine control functions are Y1-Y2, X, R-axis and crowning. The second back gauge axis can also be set as Z axis.



DA-53T features:

l “Hot-key” touch navigation

l 10.1" high resolution colour TFT

l Up to 4 axes (Y1,Y2 + 2 aux. axes)

l Crowning control

l Tool / material / product library

l Servo and frequency inverter control

l Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.

l TandemLink (option)

l USB memory stick interfacing

l Profile-53TL offline software





 -- Germany Rexroth hydraulic system:













-- Germany BAUSER and Busak+Shamban Seals

Strong anti-extrusion ability to gap

Seals will not be twisted or fliped

Good wear resistance and easy assembly

Good leakproof











-- GIVI Sensor Ruler

The CNC Press brake use fully closed-loop electro-hydraulic servo control,

Ram position signals can be feedback to CNC system by two sides Sensor Ruler,

then CNC controller DA58T adjusts the oil flowing amount by changing the opening size of synchronous valve

, hereby controlling the ram Y1, Y2 running on the same level, maintaining the parallel state of the worktable.









-- Mechanical Crowning table

•  The local deflection compensation mechanism uses a mechanical interference table compensation structure. CNC controller automatic calculation control.
•  Each group consists of several groups of three-dimensional curved surfaces with different slopes. The compensation curve is closer to the deformation curve of the slide plate, which greatly improves the machining accuracy of the bending machine.







-- Backgauge

  ● X axis drived by servo motor via ball screw

  ● R axis drived by servo motor via ball screw

  ● Taiwan HIWIN Ball Screw and Liner Guide

  ● all Servo Motors

  ● Manual adjusting the position of fingers









  -- Fast Clamping to fix Top tool easily









--One Set of Standard Top tool and Double V-Die (Amada style)

Material: 42CrMo or customized

Overall quenching process, high hardness and good wear resistance.

Double V-die  V8,V12,V16 (customized)











  -- Reliable electrical system

• Electrical system is France Schneider
• Equipped with dustproof cabinet to guarantee the high quality electrical system
• Open the door and power off, high quality servo motor driver.
