| Condition: | New | Machine Name: | Power Poles Fabricating Tandem CNC Press Brake,sheet Metal Bending Machine |
|---|---|---|---|
| Machine Type: | 2-PPED-500/6000 Tandem CNC Fabricating Machine | Application: | Power Industry, Construction Projects,Galvanized Sheet |
| Material / Metal Processed: | Stainless Steel,Carbon Steel | Nominal Pressure (kn): | 10000KN |
| Max. Bending Length: | 12000mm | Ram Stroke: | 300mm Or More |
| Max. Opening Between Ram And Working Table: | 600mm Or More | Throat Depth: | 500mm Or More |
| Voltage: | 220V/380V/415V/440V 50HZ/60HZ, Customized | Main Motor: | AC Motor 2*45kw |
| Weight: | 2*48000kg | CNC Axis: | 3+1, Y1,Y2,X,+V, Or Customized |
| Control Mode: | Delem DA53T, Cybelec, ESA CNC Controller | Back-gauge: | Ball Screw + Linear Guider, X Axis Servo Driving |
| Automation: | Automatic, Electric | Color: | Ivory White, Customized |
| Extra Services: | End Forming,Design Molds According To Your Product | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support | ||
| Highlight: | 40 foot CNC hydraulic press brakes PSL,CNC hydraulic press brakes manufacturers PSL,40 foot press brakes PSL |
||

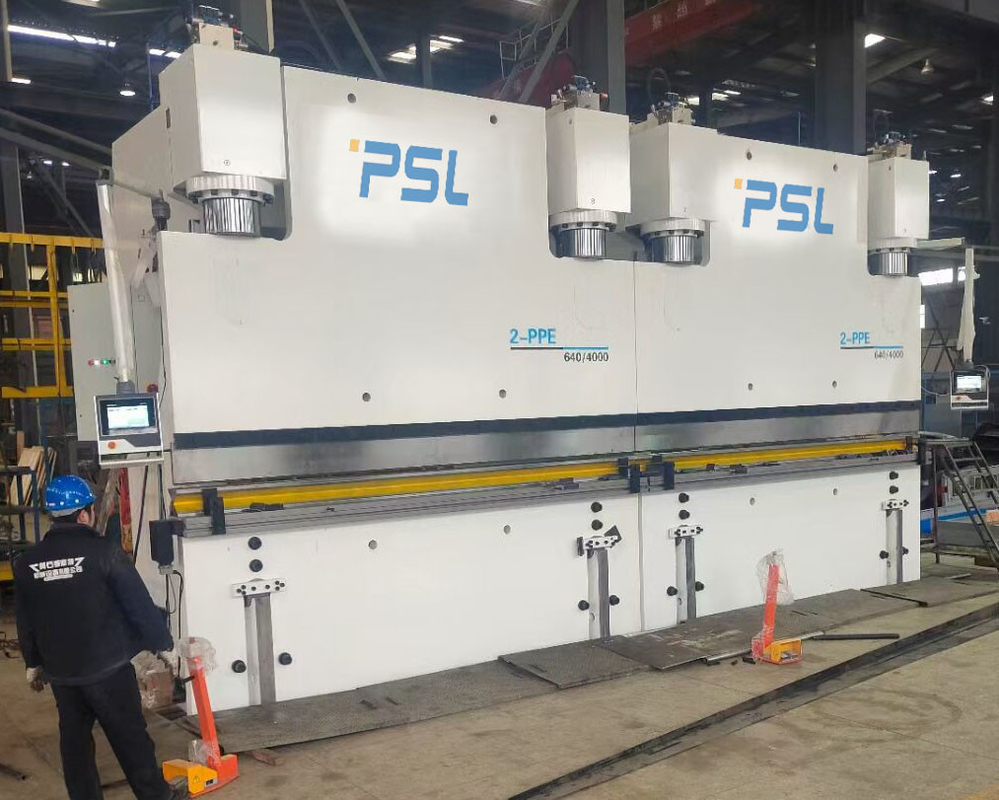

Power Poles Light Poles Fabricating machine Tandem CNC Electro-hydraulic Press Brakes
Applications:
This Tandem CNC press brake is widely used in large steel structure, steel tower, Power poles, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Especially in Power and Light Poles manufacturing industry with big Throat depth and bigger Max. opening height of tools.
Main features of machine,
1. Electro-hydraulic servo system,closed loop controls slider running accuracy.
2. The unique patented technology:bilateral deflection compensation of the large press brake .
3. Opening height adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.
5. The frame of machine is composed of tank, worktable, left and right housings and
ram. So it has high strength and good rigidity. Also it takes vibration to eliminate stress.
6. Synchronization working principal of both machines:Adopting electric-hydraulic proportional valves to ensure the synchronization of both machines.
7. Through CNC controller, the operator could communicate with machine.
8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long using life.
Machine tool accuracy
1 Geometric accuracy
Positioning accuracy of Y1 and Y2 (ram moving up and down axis) : ± 0.05mm
Repeat positioning accuracy of Y1 and Y2 axes: ± 0.05mm
The positioning accuracy of x-axis: ± 0.10mm
(which is the front and rear moving axis of rear retaining)
X-axis repeated positioning accuracy: ± 0.05mm
2 Working accuracy
Bending angle of test piece: ± 30 '/ M
Bending straightness of test piece: 0.30mm/m
Machine configuration,
| No | Name | Model/Manufacture |
| 1 | CNC System |
Holland Delem DA53T, DA58T,DA66T ESA S630,S640 Cybelec CT8,CT12 |
| 2 | Electrics | Schneider France |
| 3 | Back-gauge | Ball screw + linear guider; 4sets of finger moving on linear guider |
| 4 | Main Motor | WN AC motor 2*45kw |
| 5 | Servo Motor | Estun |
| 6 | Servo Driver | Estun |
| 7 | Pedal Switch | KACON, South Korea |
| 8 | Sealing Ring |
Merkel, Germany NOK, Japan |
| 9 | Hydraulic System | Rexroth, Germany |
| 10 | Oil Pump | Japan Nachi internal gear pump Oil Pump |
| 11 | Oil Tube Jointor | Germany EMB |
| 12 | Top tool and V-Die | One set of standard Top tool and consisted V Die |
| 13 | Back-gauge | Taiwan Hiwin ball screw and linear guide rail |
| 14 | Oil Cylinder | PSL |
| 15 | Deflection Compensation | Mechanical or Hydraulic Compensation/crowning table |
| 16 | Grating ruler | Italy GIVI |
| 17 | Standard Axis | 3 +1(Y1, Y2, X, +V ) |
Tandem PPED Series Main parameters,
|
NameModel
|
2-500/40
|
2-500/50
|
2-500/60
|
2-640/60
|
2-640/70
|
2-640/80
|
2-800/60
|
2-800/70
|
2-800/80
|
| Nominal force kN |
5000
|
5000
|
5000
|
6400
|
6400
|
6400
|
8000
|
8000
|
8000
|
| Foldable board width mm |
4000
|
5000
|
6000
|
6000
|
7000
|
8000
|
6000
|
7000
|
8000
|
| Force column spacing mm |
3150
|
4050
|
5050
|
5050
|
6050
|
6200
|
4760
|
5760
|
6200
|
| Slider stroke mm |
300
|
300
|
300
|
320
|
320
|
320
|
400
|
400
|
400
|
| Maximum opening height of worktable and slider mm |
600
|
600
|
600
|
640
|
640
|
640
|
820
|
820
|
820
|
| Throat depth mm |
400
|
400
|
400
|
400
|
400
|
400
|
500
|
500
|
500
|
| Table width mm |
300
|
300
|
300
|
300
|
300
|
300
|
400
|
400
|
400
|
| Driving speed mm/s |
75
|
75
|
75
|
80
|
80
|
80
|
100
|
100
|
100
|
| Working speed mm/s |
8
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
8
|
| Return speed mm/s |
75
|
75
|
75
|
80
|
80
|
80
|
70
|
70
|
70
|
| Main motor power kW |
45
|
45
|
45
|
55
|
55
|
55
|
2x37
|
2x37
|
2x37
|
| Fuel tank volume L |
900
|
900
|
900
|
1000
|
1000
|
1000
|
2200
|
2200
|
2200
|
| Net weight of machine tool kg |
38000
|
45000
|
53000
|
61000
|
67000
|
73000
|
94000
|
102000
|
115000
|
