Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Robot Auto Bending CNC Press Brake Machine | Condition: | New |
|---|---|---|---|
| Material / Metal Processed: | Stainless Steel,Carbon Steel,Aluminum Plate,Copper Sheet | Control Mode: | CNC System, Delem , Cybelec, ESA Controller |
| CNC Axis: | 4+1 Axes/6+1 Axes, + 6 Axes Robot | X, R, Z Axes: | Servo Motors Driving |
| Throat Depth: | 400mm Or More | Main Motor: | Two Servo Motors |
| Nominal Force: | 110T | Ram Stroke: | 200mm |
| Max. Opening Height: | 480mm | Power: | 11kw |
| Back-gauge: | Ball Screw + Linear Guider, X,R,Z Axes | Front Feeding: | Robot Fll Automatic Feeding Plate |
| Lighting: | Front Cover With LED Lamp | Weight Of Machine: | 8000kg+1000kg |
| Color: | Gray Black+Red, Customized | Voltage: | 220V/380V/415V/440V 50HZ/60HZ, Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support | Certification: | CE/ISO |
| Warranty: | 1 Year | ||
| High Light: | 110t 3200 CNC Hydraulic Press Brake,press brake aluminum,press brake 3200 |
||

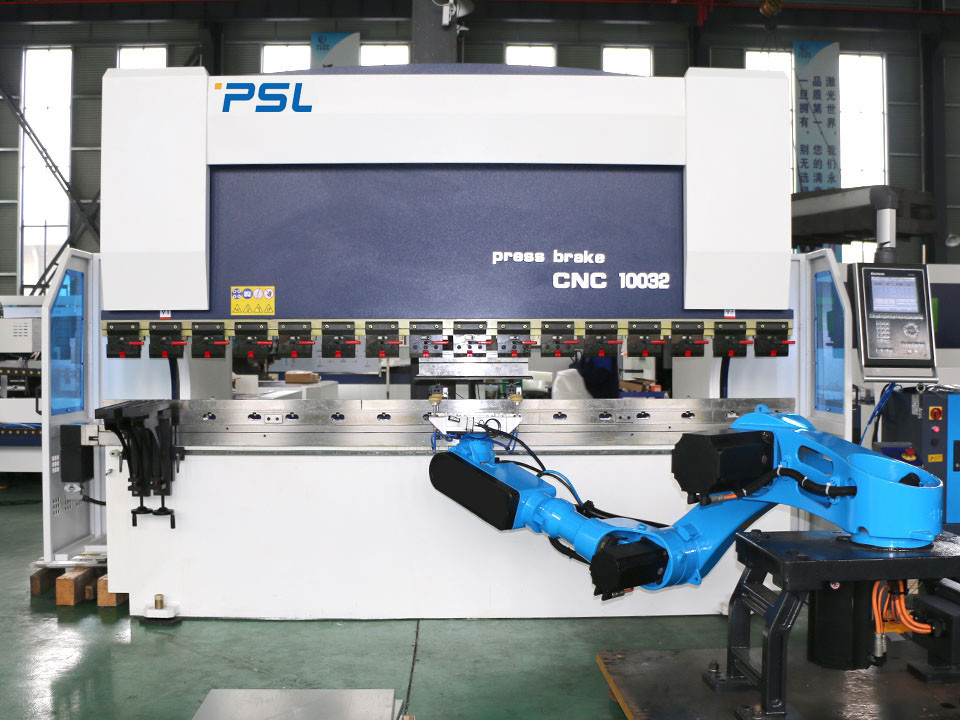

Electric-Hydraulic Servo CNC Press Brake with Robot automatic bending
Application Introduction,
Principe and Features of the machine:
Program description (operation steps):
The operator presses the start button →
The robot takes the material from the upper material plate and places it on the gravity centering platform →
After positioning, the robot takes the material to bend at the bending machine and bends the flanging features on both sides →
After bending, the robot puts the workpiece on the posture conversion frame and switches the posture →
After changing the posture, the robot grabs the workpiece to bend the gooseneck groove feature →
After bending, the robot places the workpiece on the lower material plate →
Complete the bend
Robot bending work requirements:
The bending time of a single piece of robot is about: min/pcs; (by 24 hours)
Robot bending time estimate:
Robot single workpiece bending work: about S.
Introduction of Main Parts:
-- CNC controller DELEM DA53T:
-- GIVI Grating Ruler
The CNC Press brake use fully closed-loop electro-hydraulic servo control,
Ram position signals can be feedback to CNC system by two sides Sensor Ruler,
then CNC controller DA66T adjusts the oil flowing amount by changing the opening size of synchronous valve
, hereby controlling the ram Y1, Y2 running on the same level, maintaining the parallel state of the worktable.
-- Mechanical Crowning/compensation table
-- Backgauge stopper,
● X axis drived by servo motor
● R axis drived by servo motor
● Z1,Z2 axes (finger 1 and 2) drived by servo motor (Optional)
● Z3,Z4 axes drived by servo motors to support steel plate follow-up during bending (Optional)
● all axes drived by Servo Motors
-- Quick Clamping to fix Top tool fastly and easily
--Standard Top tool and Double V-Die (Amada style) on machine
Materials: 42CrMo
Overall quenching process, high hardness and good wear resistance.
Single or Double V-die V8,V12,V16 (customized)
-- Germany BAUSER and Busak+Shamban cylinder Seals
-- Reliable electrical system
