| Product Name: | (0.3-2.0）x1250mm Stainless Steel Coils Leveling, Cutting Plates Line | Application: | Manufacturing Plant Stainless Coil Cutting, Cut-to-length,Slitting Line |
|---|---|---|---|
| Coil Material: | Stainless Steel Coil, Carbon Steel Coil, Aluminum Coil | Material Coil Thickness: | 0.3-2.0mm Stainless Steel Coil |
| Coiled Plate O.D: | 1250mm | Coiled Plate I.D: | ф508mm--ф610mm |
| Coil Weight (T): | 20tons | Width: | 600~1250mm |
| Line Speed: | 10-70 M/min | Cutting Length: | 500-3000-6000mm |
| Touch Screen: | ViewNiew Or Siemens | Control System: | Siemens Or Omron PLC, |
| Inveter: | Parker,Eurotherm, Siemens | Decoiler: | Hydraulic, Single/Double Head |
| Main Leveling Motor: | Servo Motor | Total Rated Power: | 140kw |
| Voltage: | 220V/380V/415V/600V, 50HZ/60HZ,3Ph | Color: | Green, Blue, White, Customized |
| Guaranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| High Light: | sheet metal cut to length lines PSL,mini cut to length lines PSL,steel sheet slitting machines PSL |
||

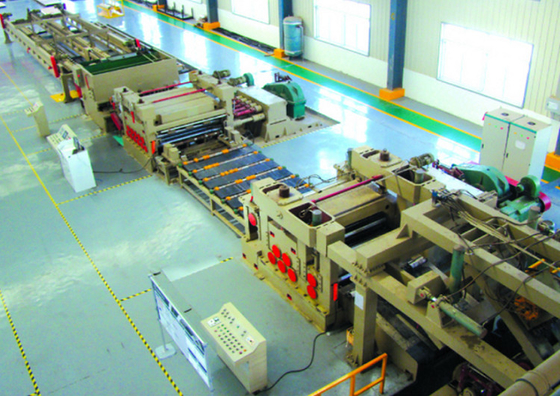

Stainless steel coil high speed automatic uncoiling-leveling-shearing-stacking line
Performance and features:
This line is used for cutting the stainless coil to needed length gauge plate and stacking orderly by uncoiler, leveler, finish length gauge cutter.
It mainly composed of uncoiler, pincher and leveler, length gauge, shear, stacker, etc, with assists of feeder, guiding device, roller table and conveyor, etc. equipment design life ≥20 years.
Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform.Display and handle the alarm.
|
Raw material parameter: |
|
| Processibel coil plate |
GI,CR (Tensile Strength σb≤450MP σs≤260MP ) |
| Thickness | 0.3mm ～ 2.0mm |
| Width | 600mm ～1250mm |
| weight | ≤20,000kg |
| I.D. of the coil | Ø508mm-Ø610mm(add pad) |
| O.D. of the coil | Ø800~ Ø2000mm |
|
finished sheets parameter |
|
| Surface quality | final sheets surface flat and smooth, without any processing defaults. |
| Precision of cutting length | ≤±0.3mm /1000mm(constant speed) |
| Diagonal tolerance | ≤0.6mm/1000mm |
| Cutting burr |
burr towards upper, coil thick≤1.0mm, burr≤0.03mm coil thick＞1.0mm, burr≤3% of thickness
|
| Stacking length | 500mm ～ 3,000mm |
| Stacking height | Max 500mm |
| Stacking weight | max 8T |
| Stacking precision |
Layers tolerance: width direction<1.0mm, length direction<1.0mm Stack tolerance: stacking height 500mm, tolerance<3mm
|
|
The unit parameter : |
|
| Line speed | 10-70m/min |
| Cutting frequency | 0-30pcs(by the sheets length of 2m) |
| Stacking station | 2pcs |
| Total power | 145KW |
| Line elevation | +1000mm |
| Covering area | 28*9m |
| Running direction |
as Buyer request.
|
