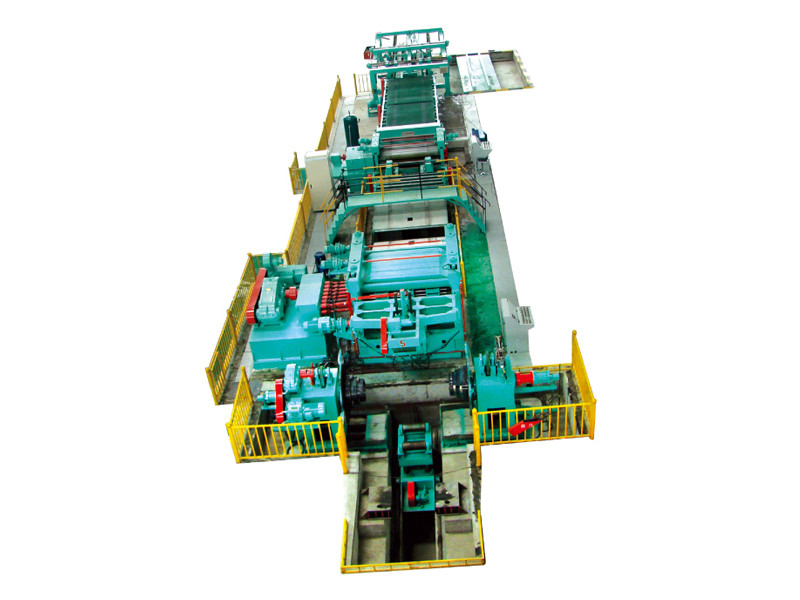

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line

Large Image :  Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line

Product Details:
Place of Origin: China
Brand Name: PSL
Model Number: CTL-(1-6)x(800-2000)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Naked in container
Delivery Time: 120-150days
Payment Terms: L/C, T/T
Supply Ability: 5-10 sets
Detailed Product Description
Product Name: 6X2200mm Coils Leveling, Cutting Plates Line Galvanized Or Carbon Or Stainless Steel Sheet Control System: Siemens Or Omron PLC,
Inveter: Parker,Eurotherm, Siemens Material Coil Thickness: 1-6mm
Application: Manufacturing Plant Sheet Metal Cutting, Cut-to-length,Slitting Line Coiled Plate I.D: ф508mm--ф610mm--ф760mm
Coil Material: Carbon Steel Coil, Stainless Steel Coil, Aluminum Coil Max. Coiled Plate O.D: 2000mm
Touch Screen: ViewNiew Or Siemens Width: 800~2000mm
Coil Weight (T): 30 Tons Line Speed: 0-80 M/min
Cutting Length: 1000-6000mm Decoiler: Hydraulic, Double Head
Total Rated Power: 140 -280 Kw Voltage: 220V/380V/415V/600V, 50HZ/60HZ,3Ph
Color: Green, Blue, White,, Or Customized Guaranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
Highlight:

Aluminum Coil Cut To Length Machine

,

Carbon Steel Coil Slitting Line

,

Stainless Steel Coil Slitting Line

HR and Cold Rolled steel coil leveling and cutting machines for Carbon steel stainless steel and Aluminum Coil





Performance and features:

This series of Cut-to-length production line is used for cutting various kinds of HR/pickling coils into flat plates through uncoiling, leveling and cutting process.



This line is consists ofi coil car, double head uncoiler, hydraulic pinch and coil peeler, pre-levaler, guidingdevice, finish leveler, servo length gauge, shear, belt conveyor, reversal discharging trame, stacker, unloading cart, electric control system, hydraulic system, etc.



CNC sheet uncoiling and leveling shear line is mainly used to leveling cold rolling and hot rolling coils into various sizes of fixed-length sheets. Applicable to vehicle manufacturing, household appliances, switchgear, steel office supplies, stainless steel kitchen supplies, machine manufacturing and other industries.





This line is apply for:

  1. Material of coil plate: carbon steel, (pickling plate≤4mm)
  2. Thickness of coil of strip: 1—6mm
  3. Width of Processible coiled plate: 800—2000mm
  4. Coiled plate I.D: ф508mm--ф610mm--ф760mm
  5. Coiled plate O.D: ≤ф2200mm
  6. Weight of coiled plate: 30T



Technical parameter:

  1. Leveling speed: 0—80m/min
  2. Precision of cutting length: ±0.5mm(by thickness of 2mm,length of 2000mm)
  3. Diagonal tolerance: ±1.0mm(by length of 2000mm)
  4. Speed of cutting: ≤20pcs/min(by length of 2000mm)
  5. Length of material stacking: 1000—6000mm(discharge device side and back, each one set)
  6. Max. height for stacking: 500mm
  7. Total power of motor: appro.240KW



Composed device:

  1.  Coil saddle;
  2.  Coil car;
  3.  Hydraulic expansion uncoiler;
  4.  Hydraulic pressing and guiding, shovel head device;
  5.  Pinch & Pre-leveler;
  6.  Intermediate bridge;
  7.  Lateral register device;
  8.  Leveling machine(finish leveling) and length gauge machine;
  9.  Cut to length machine;
  10.  Strap Conveyor;
  11.  Frame for collection;
  12.  X-shape lifting table;
  13.  Unloading car 2 sets (side and back, each with one set);
  14.  Hydraulic pneumatic system;
  15.  Electric system





Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 0



Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 1

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 2

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 3

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 4

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 5

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 6

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 7

Aluminum Coil Cut To Length Machine Carbon Steel Stainless Steel Coil Slitting Line 8
