| Product Name: | 16X2200mm Coils Leveling, Cutting Plates Line Galvanized Or Carbon Or Stainless Steel Sheet | Application: | Manufacturing Plant Sheet Metal Cutting, Cut-to-length,Slitting Line |
|---|---|---|---|
| Coil Material: | Carbon Steel Coil, Stainless Steel Coil, Aluminum Coil | Touch Screen: | ViewNiew Or Siemens |
| Control System: | Siemens Or Omron PLC, | Inveter: | Parker,Eurotherm, Siemens |
| Material Coil Thickness: | 3-12.0mm; 4x16mm | Coiled Plate I.D: | ф508mm--ф610mm--ф760mm |
| Max. Coiled Plate O.D: | 2200mm | Width: | 800~2200mm |
| Coil Weight (T): | 30 Tons | Line Speed: | 0-30 M/min |
| Cutting Length: | 2000-12000mm | Leveling Precision: | 0.5 ±mm/m |
| Decoiler: | Hydraulic, Double Head | Total Rated Power: | 140 -280 Kw |
| Voltage: | 220V/380V/415V/600V, 50HZ/60HZ,3Ph | Color: | Green, Blue, White,, Or Customized |
| Warranty: | 12 Months After Installing And Testing. | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| High Light: | CNC Coil cut to length lines PSL,cr slitting machines PSL,hr slitting lines PSL |
||

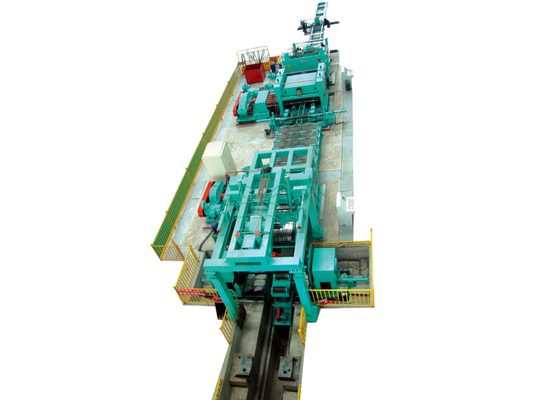

Heavy Duty HR steel coil leveling and cutting machines CNC cut to length line
Performance and features:
This senies of production line is used for cuttingvarious kinds of HR coils into flat plates through uncoiling, leveling and cutting process.
This line consists of coil car double head uncoiler, hydraulic pinch and coil peeler, pre-leveler, guiding device finish leveler, encoder length gauge, shear, stacker, electric control system, hydraulio system, etc
TECHNOLOGICAL PROCESS & PARAMETER:
The process of edge-trimming and leveling:
Discharging—uncoiling—pressing & guiding—pinch and pre-leveling—guiding—edge-trimming—scrap winder—guiding—leveling—code and guage—cut to length—pinch and falling—collecting—unloading.
Major technical parameter:
| ITEM | PARAMETER | |
| Specifications | Material | carbon steel plate Q235 |
| Thickness | 3mm—12mm | |
| Width | 800mm—2200mm | |
| Coil plate I.D. | φ500mm—φ800mm | |
| Coil plate O.D. | φ1000mm—φ2100mm | |
| Max. weight | 35T | |
| Finish product’s specification | Gauge length for cutting | 2000mm—12000mm |
|
Cutting presicion: Length tolerance Diagonal tolerance Others |
±1.5mm ±2.0 mm in accordance with GB/T709-88 stipulation |
|
| Leveling speed | 0—26m/min | |
| Edge-trimming Max thickness | 12mm | |
|
Scrap width: 3mm-5mm 6mm-12mm |
1.5 times to3.0 times than coil thickness More than coil thickness |
|
| Line elevation | 800mm | |
| Model | 2-8x2000mm | 3-12x2200mm | 4-16x2200mm |
| Thickness (based on steel type Q235) | 2-8mm | 3-12mm | 4-16mm |
| Width | 900-2000mm | 900-2200mm | 900-2200mm |
| Coil weight | 30T | 35T | 35T |
| Cutting tolerance | ±1mm | ±1mm | ±1mm |
| Cutting length | 1000-8000mm | 2000-12000mm | 2000-12000mm |
| Leveling speed | 0-28m/min | 0-25m/min | 0-25m/min |
| Occupied area | 28x9m | 35x10m | 38x10m |
| Power | 140kw | 220kw | 280kw |
Composed devices/equipments:
| NO. | DEVICES | QUANTITY |
| 1 | V-shaped coil saddle | 2 pcs |
| 2 | Hydraulic coil car | 1 pcs |
| 3 | Hydraulic uncoiler | 2 pcs |
| 4 | Hydraulic pre-leveling machine for pressing and guiding, shovel head, pinch | 1 set |
| 5 | Transitional worktable No.1 (4m) | 1pcs |
| 6 | Hydraulic Guiding device No.1 | 1 pcs |
| 7 | edge trimming machine | 1 pcs |
| 8 | Hydraulic Scrap winder | 1 set |
| 9 | Transitional worktable No.2(4m) | 1pcs |
| 10 | Guiding device No.2 | 1 pcs |
| 11 | Leveling machine | 1 set |
| 12 | Code and gauge device(tail plate pinch) | 1 set |
| 13 | Shearing machine 13×2500mm | 1 pcs |
| 14 | Pendulum pinch device | 1 pcs |
| 15 | Unloading dolly(stacker) | 1 set |
| 16 |
Hydraulic system and pneumatic system (air source by user-self) |
1 set |
| 17 | Electric control system | 1 set |
