Product Details:
Payment & Shipping Terms:
|
| Product Name: | 16X2200mm Thick Steel Coils Slitting, Slitting Galvanized, Carbon, Stainless Steel Coil | Application: | Sheet Metal Processing,Cut-to-length,Slitting Line |
|---|---|---|---|
| Coil Material: | Carbon Steel Coil, Stainless Steel Coil, Aluminum Coil | Raw Material: | Carbon Steel,galvanized Sheet,Stainless Steel |
| Material Coil Thickness: | 3-12mm; 4-16mm | Coil Weight (T): | 35 Tons |
| Decoiler: | Hydraulic, Double Head | Width: | 900~2200mm |
| Line Speed: | 0-30m/min | Min. Slitting Width: | 80mm; 100mm |
| No. Of Slitting Lines: | 5 - 7 Lines | Touch Screen: | ViewNiew Or Siemens |
| Control System: | Siemens Or Omron PLC, | Inveter: | Parker,Eurotherm, Siemens |
| Total Rated Power: | 480kw - 650kw | Voltage: | 220V/380V/415V/600V, 50HZ/60HZ,3Ph |
| Operation Height: | 600mm - 800mm | Color: | Blue, White,, Or Customized |
| Occupied Area: | 35x12M; 38x12M | Guaranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | Name: | HR Steel Coil Cut To Length Line,Atomatic Mini Slitting Machine,Steel Coil Slitting And Cutting To Length Machine |
| Highlight: | flying shear cut to length lines PSL,flying shear Coil Cut To Length Lines PSL,cut to length coil lines PSL |
||
Full Automatic High precision steel coil slitting machine double slitters Slitting Line
Performance and features:

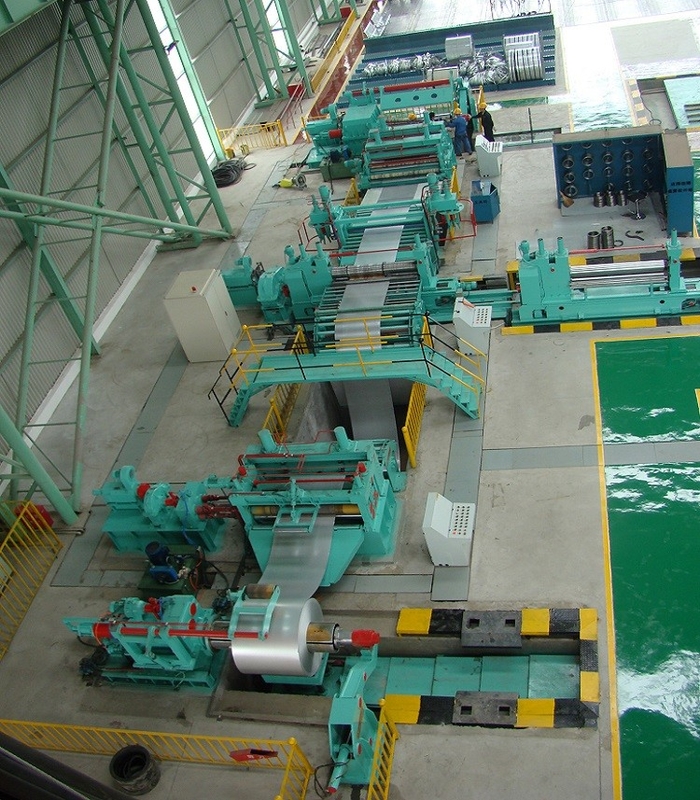

HR/pickling coil slitting line is consists of uncoiler, feeder, pinch, pre-leveler, scrap shear, exchanged double slitters, scrap winder and recoiler, etc.
The slitting line PLC control ,human-machine interface, according to a high degree of automation ,simple operation and reliable.
Precision Stainless Steel Metal Steel Coil Slitting Line is professional equipment for slitting the steel coil longitudinally into small coils. The equipment has the characteristics of high precision, fast speed and simple operation.
It can be used to process metal coils of stainless steel, carbon steel, iron, aluminum, galvanized tape, copper and other materials. It is widely used in welding pipe, automobile, watch, metal building materials, industrial plant and other fields.
Technological process:
Storaging ━ Feeding ━ uncoiling ━ pressing ━ pinching ━ primary levelling ━ cutting head shear ━ transition bench 1 ━ guiding ━ longitudinal shear ━ trimming wire ━ transition bench 2 ━ pre separating ━ tension mechanism ━ hydraulic folding mechanism ━ hydraulic pressure dividing ━ winding ━ recoiling ━ manual packing ━ discharging.
Technical Parameters:
| Model | 3-12x2200mm | 4-16x2200mm |
| Thickness(based on steel type Q235) | 3-12mm | 4-16mm |
| Width | 900-2200mm | 900-2000mm |
| Coil weight | 35T | 35T |
| Finish width | ≥80mm | ≥100mm |
| Sitting strips | ≤7 | ≤5 |
| Slitting speed | 0-30m/min | 0-25m/min |
| Occupied area | 35x11m | 38x11m |
| Power | 480kw | 650kw |
Main components of the Line:
| No. | Name of equipment | Quantity |
| 1 | V-shaped discharge platform | 2pcs |
| 2 | hydraulic feeding trolley | 1set |
| 3 | Hydraulic coil discharge machine | 2sets |
| 4 | Hydraulic pressure drawing, shovel head and clamping primary leveler | 1set |
| 5 | 16x2500 cutting shear | 1set |
| 6 | Transition bench 1 | 1set |
| 7 | guide roller mechanism | 1set |
| 8 | Slitting unit, washer, rubber ring and blade | 2sets |
| 9 | hydraulic edge scrap device | 2sets |
| 10 | Transition bench 2 | 1set |
| 11 | Pre distribution tension device | 1set |
| 12 | Hydraulic folding machine | 1set |
| 13 | hydraulic pressing and distributing machine | 1set |
| 14 | hydraulic winding unit | 1set |
| 15 | hydraulic support seat | 1set |
| 16 | hydraulic unloading trolley | 1set |
| 17 | hydraulic system | 1set |
| 18 |
Electric Control System
|
1set |
