| Product Name: | 8X2000mm Steel Coils Slitting, Slitting Galvanized, Carbon, Stainless Steel Coil | Application: | Sheet Metal Processing,Cut-to-length,Slitting Line |
|---|---|---|---|
| Coil Material: | Carbon Steel Coil, Stainless Steel Coil, Aluminum Coil | Material Coil Thickness: | 1-6.0mm; 2-8mm |
| Coil Weight (T): | 30 Tons | Width: | 900~2000mm |
| Line Speed: | 0-50m/min | Min. Slitting Width: | 50mm; 70mm |
| No. Of Slitting Lines: | 8 - 10 Lines | Touch Screen: | ViewNiew Or Siemens |
| Control System: | Siemens Or Omron PLC, | Decoiler: | Hydraulic |
| Inveter: | Parker,Eurotherm, Siemens | Operation Height: | 600mm - 800mm |
| Total Rated Power: | 320kw - 340kw | Voltage: | 220V/380V/415V/600V, 50HZ/60HZ,3Ph |
| Color: | Blue, White,, Or Customized | Occupied Area: | 28x11M; 30x11M |
| Guaranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Highlight: | Automatic Slitting Machines PSL,sheet metal roll slitting machines PSL,slitting recoiling lines PSL |
||

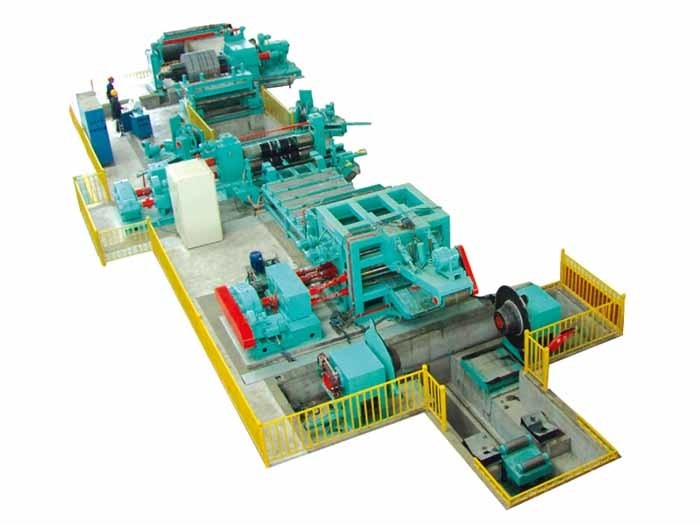

Sheet metal fabricating Steel Coil automatic uncoiling-slitting-recoiling production line
Performance and features:
HR/pickling coil slitting line is consists of uncoiler, feeder, pinch, pre-leveler, scrap shear, slitter, scrap winder and recoiler, etc.
It is used for slitting the wide raw coil into narrow strips in order to prepare material for subsequent processes as miling. pipe welding, cold forming. punch forming, etc. Moreover, this line can also slit all kinds of nonferrous metals by changing blades of different materials.
The slitting line PLC control ,human-machine interface, according to a high degree of automation ,simple operation and reliable.
Technological process:
Feeding ━ uncoiling ━ pressing ━ clamping ━ primary straightening ━ cutting shear ━ transition worktable ━ guide ━ longitudinal shear ━ trimming wire ━ transition worktable ━ pre separation ━ tension mechanism ━ hydraulic folding mechanism ━ hydraulic pressure dividing ━ winding ━ manual packing ━ discharging.
Technical Parameters:
| Model | 1-6x2000mm | 2-8x2000mm |
| Thickness | 1-6mm | 2-8mm |
| Width | 900-2000mm | 900-2000mm |
| Coil weight | 30T | 30T |
| Finish width | ≥50mm | ≥70mm |
| Sltting strips | ≤10 | ≤8 |
| Sitting speed | 0-50m/min | 0-40m/min |
| Occupied area | 28x11m | 30x11m |
| Power | 320kw | 340kw |
Main components of the Line:
1. V-shaped pre discharge table
2. hydraulic feeding trolley
3. Hydraulic cone discharge machine
4. Hydraulic pressure drawing, shovel head and clamping primary leveler
5. One 16x2500 cutting shear
6. transition table
7. guide roller mechanism
8. longitudinal shear unit, washer, rubber ring and blade
9. hydraulic edge scrap mechanism
10. transition table
11. pre distribution tension mechanism
12. hydraulic folding mechanism
13. hydraulic pressing and distributing mechanism
14. hydraulic winding unit
15. hydraulic support seat
16. hydraulic unloading trolley
17. hydraulic system
18. Electric Control System
