| Product Name: | 25X2500mm Coils Leveling, Cutting Plates Line Galvanized Or Carbon Or Stainless Steel Sheet | Coil Material: | HR Carbon Steel Coil, Thick Stainless Steel Coil |
|---|---|---|---|
| Application: | Manufacturing Plant Sheet Metal Coil Leveling,Shearing, Staking, Cut-to-length Line | Touch Screen: | ViewNiew Or Siemens |
| Control System: | Siemens Or Omron PLC, | Inveter: | Parker,Eurotherm, Siemens |
| Material Coil Thickness: | 6-20.0mm; 8-25mm | Coiled Plate I.D: | ф508mm--ф760mm |
| Max. Coiled Plate O.D: | 2500mm | Width: | 800~2500mm |
| Coil Weight (T): | 35 Tons | Line Speed: | 0-18 M/min |
| Cutting Length: | 2000-12000mm | Cutting Precision: | 1.0 ±mm/m |
| Decoiler: | Hydraulic, Double Head | Total Rated Power: | 420 -480 Kw |
| Voltage: | 220V/380V/415V/600V, 50HZ/60HZ,3Ph | Occupied Area: | 42x11M, 45x11.5M |
| Color: | Green, Blue, White,, Or Customized | Warranty: | 12 Months After Installing And Testing. |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | ||
| Highlight: | hr coil slitting machine,cr coil slitting machine,Aluminum Coil Slitting Machine |
||

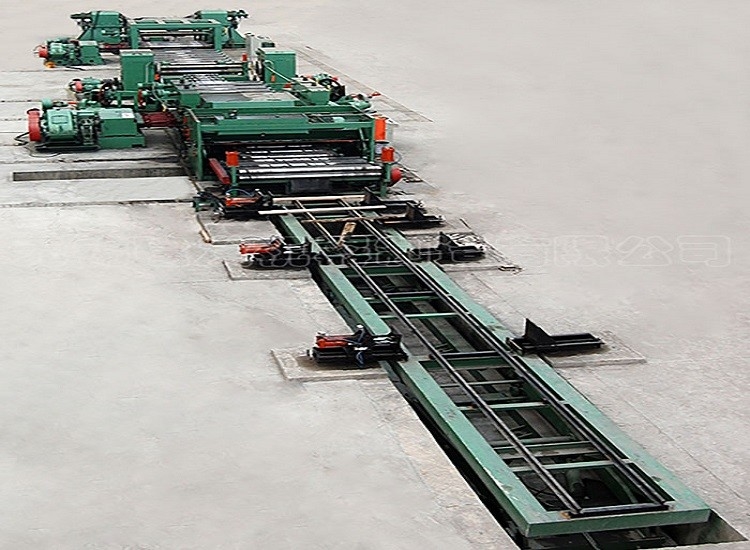

Hot Rolled Thick steel Coil automatic Cut to Length Line leveling and shearing and staking machines
Product Description:
Cut to length line CTL series
The cut to length line is generally used for jobs like uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as hot rolled carbon steel coil, tinplate, stainless steel, and other kinds of metal with coated surfaces.
Features of Cut to Length Line:
1. Our cut to length line uses a roll feeding, DC motors drive.
2. It has a fully digital length control system that ensures fast positioning with little error.
3. It has a hard chrome plated surface and is durable and abrasion resistant.
4. It is used together with a hydraulic shear to carry out fast shearing and convenient clearance adjustment.
5. Our cut to length line is suitable for hot rolled carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
Advantage:
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Good order stacking
TECHNOLOGICAL PROCESS & PARAMETER:
The process of leveling and cutting line:
Discharging—uncoiling—pressing & guiding—pinch and pre-leveling—guiding—leveling—guiding—code and guage—cut to length—pinch and falling—collecting—unloading.
Major technical parameter:
| Model | 6-20x2200mm | 8-25x2500mm |
| Thickness(based on steel type Q235) | 6-20mm | 8-25mm |
| Width | 900-2200mm | 900-2500mm |
| Coil weight | 35T | 35T |
| Cutting tolerance | ±1mm | ±1mm |
| Cutting length | 2000-12000mm | 2000-12000mm |
| Leveling speed | 0-18m/min | 0-18m/min |
| Occupied area | 42x11m | 45x11.5m |
| Power | 420kw | 480kw |
Composed devices/equipments:
| NO. | DEVICES | QUANTITY |
| 1 | V-shaped coil saddle | 2 pcs |
| 2 | Hydraulic coil trolley | 1 pcs |
| 3 | Hydraulic uncoiler | 2 sets |
| 4 | Hydraulic pre-leveling machine for pressing and guiding, shovel head, pinch | 1 set |
| 5 | Transitional worktable No.1 | 1pcs |
| 6 | Hydraulic Guiding device No.1 | 1 pcs |
| 7 | Transitional worktable No.2 | 1pcs |
| 8 | Hydraulic Guiding device No.2 | 1 pcs |
| 9 | Leveling machine | 1 set |
| 10 | Code and gauge device(tail plate pinch) | 1 set |
| 11 | Hydraulic Shearing machine | 1 pcs |
| 14 | Pendulum pinch device | 1 pcs |
| 15 | Unloading dolly(stacker) | 1 set |
| 16 |
Hydraulic station and pneumatic system (air source by user-self) |
1 set |
| 17 | Electric control cabinet | 1 set |
