Product Details:
Payment & Shipping Terms:
|

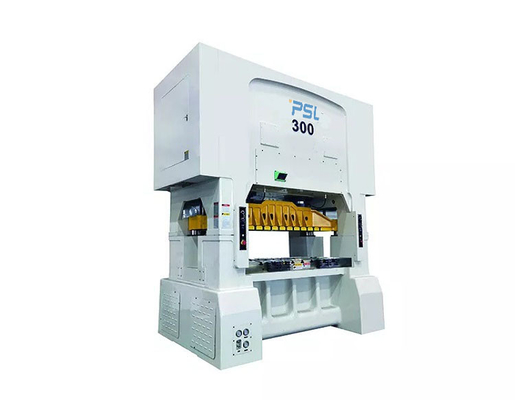

| Condition: | New | Product Name: | Straight Side Double-crank High-speed Punching Press Line |
|---|---|---|---|
| Name: | Straight Side 2-plunger Power Punching Line, Sheet Metal Perforating Machine,Power Press,punching Machine | Type: | Straight Side Double-crank Punching Line J76-315 |
| Application: | Metal Sheet Stamping And Punching | Key Selling Points: | High-speed, High Accuracy, Automatic Production Line |
| Usage: | Processing Metal Sheet, High Speed Auto Punching Line | Material: | Steel Metal Welded Structure |
| Function: | Power Press,Metal Sheet Coil Automatic Punching Line | Nominal Pressure: | 800KN - 7500KN, 80T - 750T |
| Cnc Or Not: | CNC | Control: | Touch Screen, PLC Control, Servo Feeding |
| Stroke Of Slide: | 30mm | Stroke Speed: | Variable,110 Spm - 550spm |
| Max. Die Set Height: | 380mm - 600mm | Die Height Adjustment: | 50mm |
| Power Source: | AC 22 Kw - 90kw | Driving: | Pneumatic Clutch-brake, Servo Feeding Sheet |
| Color: | Gray White Or Customized | Voltage: | 380V,as Your Requirements |
| After-sales Service Provided: | Video Technical Support Online | Warranty: | One Year |
| Highlight: | 100 ton punch presses J76-315,300 ton punch presses J76-315,automatic punch presses J76-315 |
||

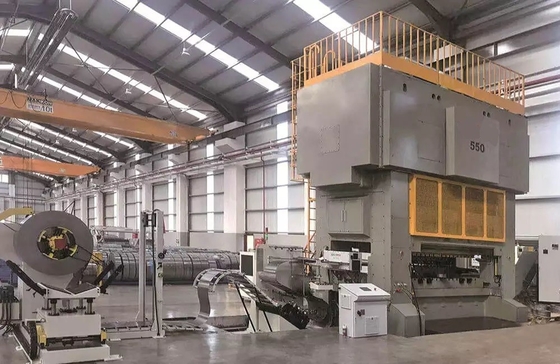

Makeup: uncoiler, S-type material straightener, gear exchanger of feeder, lubricating device for materials, closed-type double-crank high-speed precision press;
Separated structure and high-strength cast iron frame;
High-strength Eccentric alloyed steel crankshaft;
Imported bearings and Four-point crankshaft supporting structure (80-300T);
Slide is guided linear clearance- free ball bearing plunger bushes (80-300T);
Dynamic balance system, low vibration and low noise;
Low-inertia big-torque pneumatic clutch brake unit;
Hydraulic locking device for adjustment rods, ensuring the precision of bottom dead center ;
Accurately control the precision of bottom dead center by using forced lubrication, automatic temperature control system and thermal compensation technology;
Programmable cam controller, to ensure convenient operation and reliable performances;
Touch screen
| Items Technical Data Model |
J76-80 | J76-125E | J76-200E | J76-300E | J76-400 | J76-550 | J76-750 | ||
| Nominal Pressure | KN | 800 |
1250
|
2000 |
3000
|
2000 |
5500
|
7500 | |
| Nominal Pressure Stroke | mm | 2 |
3
|
3 |
3
|
3 | 1.6 | 1.6 | |
| Stroke of Slide | mm | 30 |
30
|
30 | 30 | 30 | 40 | 45 | |
| Stroke | S.P.M | 140~550 |
130~400
|
120~400 | 110~350 | 110~280 | 80~200 | 75~160 | |
| Max.Die Set Height | mm | 380 | 400 | 420 |
480
|
530 | 550 | 600 | |
| Die Height Adjustment | mm | 50 |
50
|
50 |
50
|
50 |
100
|
100 | |
| Distance Between Uprights | L-R | mm | 1140 | 1340 | 1740 |
2140
|
2820 | 3080 | 3350 |
| F-B | mm | 320 | 400 | 400 |
470
|
580 | 1050 | 1000 | |
| Bottom Size of Slide | L-R | mm | 1100 | 1300 | 1700 |
2100
|
2800 | 3050 | 3300 |
| F-B | mm | 500 | 600 | 650 | 750 | 1000 | 1400 | 1400 | |
| Size of Table | L-R L-R |
Size of Table | 1100 | 1300 | 1700 |
2100
|
2800 | 3050 | 3300 |
| F-B | 750 | 850 | 950 | 1000 | 1200 | 1500 | 1500 | ||
| Main Motor Power | KW | 22 |
22
|
37 |
45
|
75 |
75
|
90 | |
