| Product Name: | Punching Press Machine, Hole Punching Machine Sheet Metal Perforating Machine | Name: | Hole Punching Machine Sheet Metal Perforating Machine,Punch Press,punching Machine |
|---|---|---|---|
| Type: | C-Type Inclinable Structure | Application: | Metal Sheet Stamping And Punching |
| Material: | Welded Steel Structure | Usage: | Pressing Metal Sheet Products |
| Function: | Elctrical Press,Metal Sheet Punching | Nominal Pressure: | 63KN - 1000KN, 6.3T - 125T |
| Cnc Or Not: | Normal | Control: | Buttons Panel |
| Stroke Speed: | 55spm - 125spm | Power Source: | 2.2 Kw |
| Driving: | Turn-key Rigid Combination Clutch-brake | Voltage: | 380V,as Your Requirements |
| Color: | Gray White Or Customized | Weight: | 2000kg |
| Dimension(l*w*h): | 1350*950*2200mm | After-sales Service Provided: | Video Technical Support Online |
| Warranty: | One Year | ||
| High Light: | 100 ton power press machines PSL,eccentric punching machines PSL,inclinable punch presses PSL |
||

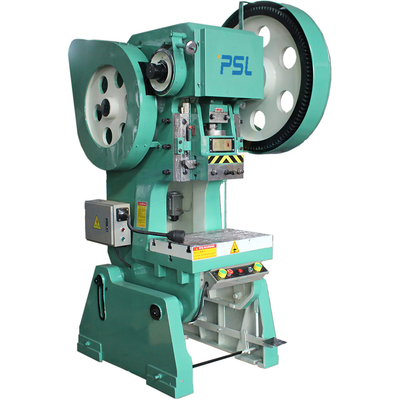

Punch press Widely used in various fields, the mechanical equipment for the operator of the technical requirements are not high and through a variety of mold applications can do machining and achieve the product advantages.
Stamping production is mainly for sheet metal, through the mold can also blanking, punching, forming, deep drawing, dressing, fine punching, shaping, riveting and extrusion, etc.
Main Features,
1) Adopts horizontally placed crankshaft.
2) Adopt rolling bearing instead of copper bush with lower noise and longer service life.
3) Casting body, inclinable body.
4) J23-80 and the upon models adopt balance cylinders.
5) Manual shut height adjustment with scale display.
6) Rigid rotated bond clutch.
| Item | Unit | J23-6.3 | J23-10B | J23-20 | J23-30 | J23-40 | J23-60 | J23-80 | J23-100 | J23-125 | |
| Nominal Pressure | Tons | 6.3 | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 125 | |
| Nominal Pressure Stroke | mm | 2 | 2 | 3 | 4 | 5 | 6 | 6 | 10 | 12 | |
| Slide Stroke | mm | 35 | 50 | 60 | 70 | 100 | 120 | 120 | 130 | 130 | |
| Strokes per Minute | Spm | 170 | 130 | 120 | 70 | 60 | 50 | 50 | 45 | 45 | |
| Max.Die Height | mm | 120 | 130 | 160 | 200 | 240 | 280 | 280 | 300 | 330 | |
| Die Height Adjustment | mm | 30 | 35 | 40 | 55 | 65 | 80 | 80 | 100 | 120 | |
| Throat Depth | mm | 110 | 130 | 170 | 200 | 200 | 230 | 260 | 300 | 330 | |
| Bolster Surface | F.B. | mm | 200 | 240 | 300 | 320 | 430 | 450 | 480 | 550 | 650 |
| Size | L.R. | mm | 310 | 360 | 480 | 520 | 650 | 710 | 780 | 950 | 1050 |
|
Bed Opening Size |
F.B. | mm | 110 | 100 | 110 | 190 | 150 | 200 | 220 | 250 | 340 |
| L.R. | mm | 160 | 180 | 220 | 290 | 300 | 340 | 340 | 370 | 530 | |
| Dia. | mm | 140 | 130 | 150 | 260 | 200 | 250 | 260 | 300 | 450 | |
| Slide Surface | F.B. | mm | 120 | 150 | 150 | 170 | 220 | 230 | 250 | 280 | 380 |
| Size | L.R. | mm | 140 | 170 | 230 | 250 | 280 | 300 | 320 | 360 | 510 |
| Size of the handle hole | mm | φ30X55 | φ30X55 | φ35X60 | φ40X60 | φ50X70 | φ50X70 | φ60X70 | φ60X80 | φ80X80 | |
| Distance between Uprights | mm | 150 | 180 | 220 | 260 | 300 | 350 | 350 | 380 | 410 | |
| Thickness of Bolster | mm | 30 | 50 | 60 | 60 | 80 | 90 | 90 | 100 | 110 | |
| Inclinable Angle | degree | 45 | 30 | 35 | 30 | 30 | 30 | 30 | 25 | 25 | |
| Main | Model | Y90S-6 | Y90L-6 | Y100L-6 | Y112M-6 | Y132M1-6 | Y132M2-6 | Y132M2-6 | Y132M-6 | Y132M-4 | |
| Motor | Power | kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Overall | F.B. | mm | 780 | 915 | 1140 | 1450 | 1500 | 1700 | 1810 | 1950 | 2150 |
| Dimension | L.R. | mm | 570 | 750 | 905 | 950 | 1180 | 1330 | 1450 | 1500 | 1350 |
| Height | mm | 1500 | 1690 | 1890 | 2100 | 2300 | 2540 | 2850 | 2800 | 3350 | |
| Gross Weight | kg | 450 | 680 | 1100 | 1630 | 2850 | 4100 | 4550 | 7350 | 8750 | |
| Power Requirement | Voltage | 220V/(380)/3-Phase | |||||||||
