J25-250 Progressive Die Punch Press Stamping Metal C Frame Double Crank

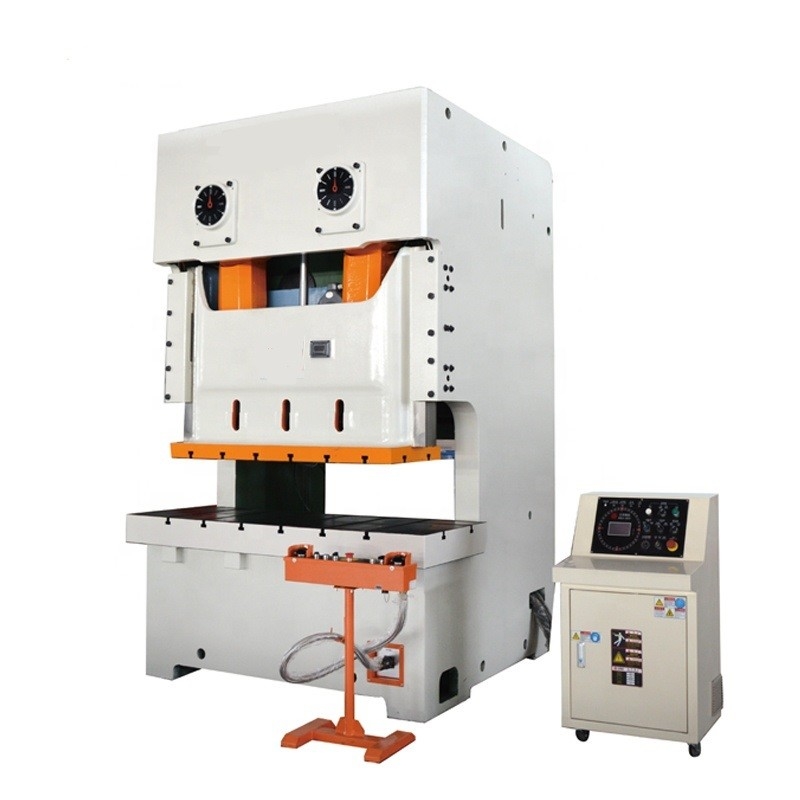

Large Image : J25-250 Progressive Die Punch Press Stamping Metal C Frame Double Crank

Product Details:

Place of Origin:	China
Brand Name:	PSL
Model Number:	J25-250

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Naked in container
Delivery Time:	60-90 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30-50 sets per month

Contact Now

Detailed Product Description

Product Name:	Double-crank Punching Press Machine, Hole Punching Machine Sheet Metal Perforating Machine	Name:	Pneumatic Power Punching Machine Sheet Metal Perforating Machine,Power Press,punching Machine
Type:	C-Type Double-crank Structure J25-250	Application:	Metal Sheet Stamping And Punching
Material:	Steel Metal Welded Structure	Usage:	Pressing Metal Sheet Products, High Speed Punching
Function:	Electrical Power Press,Metal Sheet Punching	Nominal Pressure:	800KN - 5000KN, 80T - 500T
Cnc Or Not:	Normal, CNC	Control:	Buttons Panel, Touch Display
Stroke Speed:	Variable, 20 Spm - 50spm	Power Source:	30 Kw
Driving:	Pneumatic Clutch-brake	Voltage:	380V,as Your Requirements
Color:	Gray White Or Customized	Weight:	45000kg
Dimension(lwh):	295032504365mm	Key Selling Points:	High-speed, High Accuracy
After-sales Service Provided:	Video Technical Support Online	Warranty:	One Year
Highlight:	stamping punch presses J25-250 , J25-250 progressive die punch presses , J25-250 stamping punch presses

C-frame Double crank progressive die metal stamping punch power Press machine J25 Series

Main Features,

High-rigidity, reverse running double crankshaft, to offset lateral forces;

Strong resistance of off-set loading capacity in L-R direction;

High precision, meeting Level JIS1 standard;

High-rigidity steel-welded frame ;

High-precision 6-side long guide rail;

Pneumatic clutch-brake clutch;

Imported safety dual-solenoid valve for clutch;

High-sensitive hydraulic overload protection;

Automatic grease lubrication system;Frequency drive inverter (FDI);

PLC, encoder, mechanical cam control;

Optional components: output shaft, air cushion,light curtain, slide knockout, automatic feeder and other devices.

Main Technical Specification

Items Technical Data Model				J25-80		J25-110		J25-160		J25-200		J25-250		J25-315
				L	S	L	S	L	S	L	S	L	S	L	S
Nominal Pressure			KN	800		1100		1600		2000		2500		3150
Nominal Pressure			KN	4.5	2.5	5	3	6	3	7	4	7	4	8	5
Nominal Pressure Stroke			mm	160	90	180	110	200	130	230	150	250	180	250	180
Stroke of Slide			mm	40~75	50~90	35~65	45~80	30~50	35~65	25~45	30~55	20~40	30~50	20~35	25~45
Stroke			S.P.M	380	415	400	435	450	485	500	540	550	585	550	585
Max.Die Set Height			mm	80		90		100		110		120		120
Depth of Throat			mm	310		350		390		430		470		470
Distance Between Uprights			mm	1350		1470		1610		1960		2100		2230
Bottom Size of Slide	L-R	mm		1200		1360		1500		1850		2000		2100
	F-B	mm		460		520		580		650		700		700
Size of Table	L-R	mm		1650		1880		2040		2420		2600		2720
	F-B	mm		600		680		760		840		920		920
Main Motor Power		KW		11		15		22		22		30		37
