| Machine Type: | EPB10T/600 Pure Electric Servo CNC Press Brake,sheet Metal CNC Fabricating Machine | Material / Metal Processed: | Stainless Steel,Carbon Steel,Aluminum,Brass / Copper |
|---|---|---|---|
| Condition: | New | CNC Axis: | 3+1 Axes, 4+1 Axes |
| Control Mode: | CNC System, Delem DA53T , LZ1000 Controller | Nominal Force: | 10T |
| Bending Length: | 600mm | Throat Depth: | 150mm |
| Y, X, R Axes: | All Servo Motors Driving | Ram Up/down: | Y Axes Drived By Servo Motor |
| Power: | Servo Motor 3kw | Ram Stroke: | 150mm |
| Max. Opening Height: | 320mm | Front Supporting: | Front Supporting Platform |
| Back-gauge: | Ball Screw + Linear Guider, X,R Axes | Lighting: | Front Cover With LED Lamp |
| Weight Of Machine: | 1200kg | Foundation Base: | Wheeled Movement |
| Color: | Gray Black+Red, Customized | Voltage: | 220V/380V/415V/440V 50HZ/60HZ, Customized |
| Certification: | CE/ISO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| Warranty: | 1 Year | ||
| Highlight: | small hydraulic press brake,10 ton press brake,24 inch press brake |
||

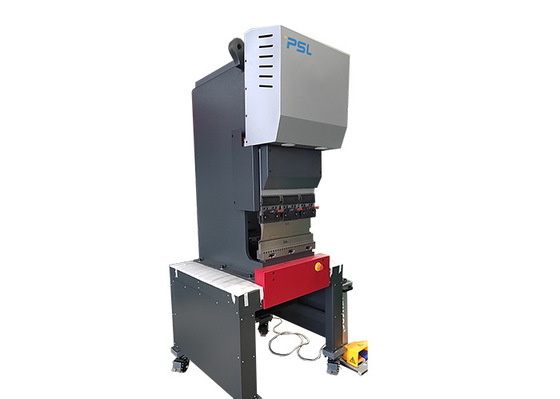

Mini Full Electric Servo CNC Press brake ECO Bending machine 10T 600mm
Application Introduction:
1. Significant energy saving
100% ELECTRIC SERVO PRESS BRAKE = ECO-FRIENDLY! ENERGY SAVINGS!
Small power when the ram goes up without load, and almost no power when the ram stops.
2. Environmental protection and no pollution
The pure electric servo bending machine does not use hydraulic oil, So there is no waste oil treatment and pollution.
3. The Ram has fast speed and high production efficiency than traditional hydraulic types.
4. High bending accuracy
5. Low maintenance cost
The transmission system of pure electric servo bending machine is simple, there is basically no maintenance cost, and only regular lubrication is required.
6. The Mini type Electric Servo Press Brake is installed 4 wheels, it can move and work in anywhere easily.
Main Features:
Complete steel-welded structure; left and right houses, working table are welded into a whole frame. and then the main frame is fixed on a strong mounted platform.
Small span high rigidity slider design, rigidity is 50% higher than ordinary slider structure.
Adopts the most advanced full close loop servo synchronized controlling system
The machine’s servo motors drastically reduce energy consumption, making them environmentally friendly.In addition to this, the motors themselves do not require hydraulic oil, ensuring a cleaner, safer workspace.
Delem CNC system DA53T,DA58T even DA66T can be used by default and can be customized.
And there are also more economic choose, as LZ1000, SYNTEC.
The machine is suitable for the production with multi-steps of bending with high bending accuracy. Adopt E type back gauge, with sufficient mechanical strength and stiffness.
X-axis & R-axis adopt ball screw and linear guide, which is driven by servo motors, and the back gauge is positioned quickly and accurately.
Electrical component (Relay, Contactors) France Schneider
Dustproof cabinet grade IP54 to guarantee the high quality electrical system
Function of open door and power off
High quality Estun servo motor drivers
EPB series parts
| Optional model | Manufacturer | Remarks | |
|---|---|---|---|
| CNC system |
●DA-53T ●LZ 1000 |
Delem
TW LZ |
|
| Back gauge | ●3+1 axis ●4+1 axis |
PSL Burke |
Carbon steel Aluminum material |
| Main power system | ●Servo motor |
VEICHI
|
Y axis |
| Front material | ●Simple fixed platform ●Single rail movable type |
PSL |
Optional |
| Security | ● Side (guardrail) + rear (guardrail) ● Side (guardrail + laser protection) + rear (guardrail) |
PSL |
Optional
|
| Deflection compensation | ● | Needn't | |
| Top tool clamping | ●Fast clamping | PSL |
|
| Lower V die | ●Double V Die | PSL | |
| Electrics | ●Schneider Relay,Contactor | Schneider | Open door power protection |
| Foot switch | ●vertical switch | Korean Kacon | |
Adopts the most advanced full close loop servo synchronized controlling system
