| Condition: | The Newest Type | Machine Type: | EPB63T/2500 Full Electric Servo CNC Press Brake,sheet Metal CNC Fabricating Machine |
|---|---|---|---|
| Material / Metal Processed: | Stainless Steel,Carbon Steel,Aluminum,Brass / Copper | Nominal Force: | 63T |
| Bending Length: | 2500mm | Control Mode: | Delem DA66T , LZ1000, CNC Controller |
| CNC Axis: | 3+1/4+1/ 6+1/8+1 Axes, And More | Throat Depth: | 300mm Or More |
| Main Motor: | Two Servo Motors | Power: | 2*5.5kw |
| Ram Up/down: | Y1,Y2 Axes Drived By Servo Motors | Ram Stroke: | 200mm |
| Max. Opening Height: | 450mm | Weight Of Machine: | 6000kg |
| Back-gauge: | Servo Motors Driving, Ball Screw + Linear Guider, X,R,Z Axes | Y, X, R, Z Axes: | All Servo Motors Driving |
| Front Supporting: | Sliding Front Supporting Arms | Lighting: | Front Cover With LED Lamp |
| Color: | Gray Black+White, Customized | Voltage: | 220V/380V/415V/440V 50HZ/60HZ, Customized |
| Certification: | CE/ISO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support |
| Warranty: | 1 Year | ||
| High Light: | 60 ton press brake,8 foot press brake,8' hydraulic press brake |
||

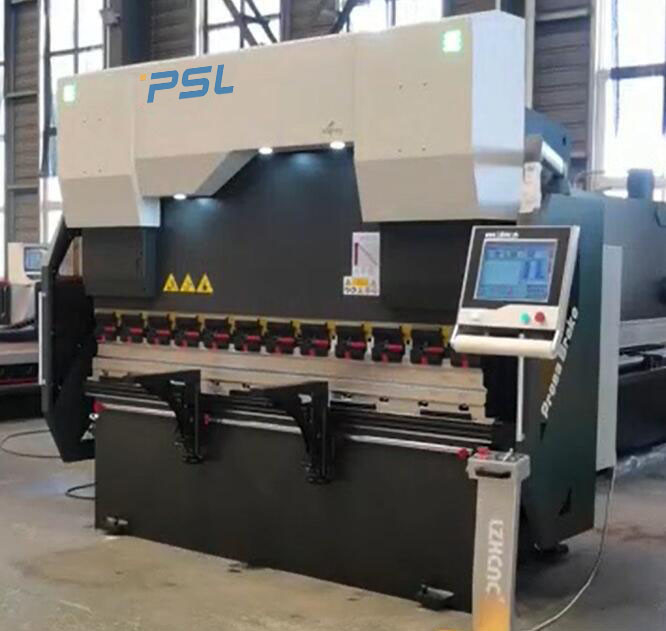

Full Electric Servo driving CNC Press brake Sheet metal Bending machine
Application Introduction:
1. Significant energy saving
Pure electric servo drive consumes large power when bending, small power when the slider goes up without load, and almost no power when the slider stops.
2. Environmental protection and no pollution
The pure electric servo bending machine does not use hydraulic oil, and there is no waste oil treatment and pollution.
3. The slider has fast speed and high production efficiency
The response speed of servo motor is faster than that of hydraulic servo
4. High bending accuracy
5. Low maintenance cost
The transmission system of pure electric servo bending machine is simple, there is basically no maintenance cost, and only regular lubrication is required.
Principe and Features of Full Electric Servo CNC Press brake:

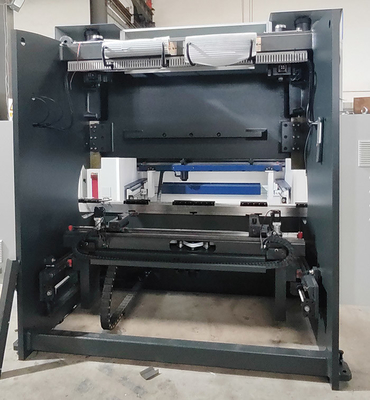

1. Structure of this Press Brake:
1) Complete steel-welded structure; left and right houses, working table are welded into a whole frame.
2) After welding, the internal stress is eliminated by tempering, so the whole steel is strong and the stabe.
3) ANSYS finite element analysis software to ensure the reliability of the machine and the precision.
2. Fully electric servo drive
The machine’s full servo motors drastically reduce energy consumption, making them environmentally friendly.In addition to this, the motors themselves do not require hydraulic oil, ensuring a cleaner, safer workspace.
3. Professional CNC system Delem or LZ
1) All actions (X,R,Z axes running) of the rear stopper ;
2) The stroke of Ram (Y1,Y2 axes servo motors)
3) The adjustment of deflection compensation
4) Customer can choose different the backgauge form
5) Dutch Delem CNC system is used by default and can be customized.
4. Bending angle programming | graphic programming
5. Precision back gauge structure
It adopts ball screw and linear guide, which is driven by servo motors, and the back gauge is positioned quickly and accurately.
More functional multi-axis blocking is available according to customer's requirement.
Standard 2 sets of fingers mounted in Linear guider installed on back gauge beam, as to complex shapes work pieces, 4 or 5 fingers back gauge system and corresponding dies are available for your choose.
6. Upper and lower tools standard sections
The mold sections are 10, 15, 20, 30, 50, 100, 300 (cm), and the length can be customized by the user.
7, Quick Clamping to fix Top tool fastly and easily
8. Mechanical Crowning compenation table
In the CNC system, the plate thickness and length parameters are input, and the CNC system will automatically perform deflection compensation.
Each group consists of several groups of three-dimensional curved surfaces with different slopes. The compensation curve is closer to the deformation curve of the slide plate, which greatly improves the machining accuracy of the bending machine.
9. Reliable electrical system
Electrical component (Relay, Contactors) France Schneider
Dustproof cabinet grade IP54 to guarantee the high quality electrical system
Function of open door and power off
High quality Estun servo motor drivers
10. Laser safety guarding
| Optional model | Manufacturer | Remarks | |
|---|---|---|---|
| CNC system |
●DA-53T ●LZ 1000 |
Delem
ESA LZ |
|
| Back gauge | ●4+1 axis ●6+1 axis ●8+1 axis |
PSL Burke |
Carbon steel Aluminum alloy |
| Main power system | ●Servo motor |
VEICHI ESTUN |
Y1,Y2 |
| Front supporting arm | ●Single rail movable type ●Double track movable type |
PSL |
Optional |
| Security | ● Side (guardrail) + rear (guardrail) ● Side (guardrail + light curtain protection) + rear (guardrail) ● Side (guardrail + laser protection) + rear (guardrail) |
PSL |
Optional
Optional |
| Deflection compensation | ●Mechanical electric compensation | ||
| Top tool clamping | ●Mechanical fast clamping | PSL | |
| Electrics | ●Schneider Relay,Contactor | Schneider | Open door power protection |
| Foot switch | ●vertical switch | Korean Kacon | |
| Lower die | ●Multi-V die ●Double V core with lower die |
PSL | Double V core module can be segmented |
