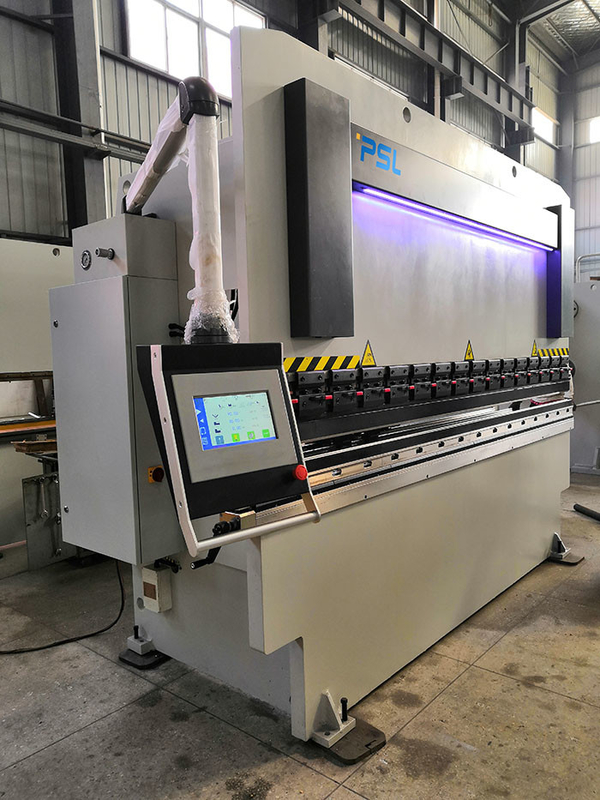

Small Cnc Hydraulic Press Brake NC Sheet Bending Machine 12 Foot 165Ton

NC Sheet bending machine LVD-YSD style CNC Hydraulic press brake





   Main characteristics of this machine:



       PPT(K) seires Press Brake is a traditional sheet metal bending machine. It is simple in appearance, beautiful in appearance, convenient in operation and simple in adjustment.



      A simple, effective and precise mechanical forced synchronization system control is adopted, and the Ram synchronization is controlled by a torsion shaft, and the bending termination degree is realized by a mechanical stop.

      PPTK can realize numerical control operation.



      Low cost and simple maintenance.



      The disadvantage is that the efficiency is low and the degree of digitization is average.













  Main Functions of the Press brake:



1. 1.   This Bending machine is adopted  Computer aided design from LVD technology. The frame, ram and other important machinging parts are analyzed by ANSYS finite element analysis software to garrantee the strength and structural rationality of the frame.







     1.2.   The frame adopts integral welding structure, which has good rigidity and strong stability.



     1.3.    Q235-B steel plate is used for the four major parts of the second side wall panel, worktable vertical plate and sliding block.



     1.4.    Automatic butt welding by submerged arc welding is adopted. When welding, turn over welding on both sides to reduce welding deformation. The weld shall be free of undercut, air hole, crack and other welding defects.



     1.5.    After the frame is welded, the high-temperature annealing aging treatment process is adopted to eliminate the welding stress and ensure the accuracy and stability of the processed parts.



     1.6.   The machining of the frame adopts the one-time clamping machining method of large floor Boring and Milling machine and Gantry machining center to ensure the machining accuracy of parts.







     2. Cylinders:

     2. 1.   The cylinder block is integrally forged with 45# steel and has sufficient rigidity and strength. After forging and forming, the internal stress shall be eliminated through nondestructive testing and annealing process.



     2.2.    The piston rod and cylinder head are made of 45# forged steel and quenched to ensure their good comprehensive mechanical properties.



     2.3     The processing of the cylinder block is mainly carried out on the CNC moving gantry milling. On the premise of ensuring the dimensional accuracy and geometric tolerance, the surface roughness can reach Ra0.4.



     2.4.     The piston rod and cylinder head adopt copper melting process. The molten copper is brass, which improves the support strength and eccentric load resistance of the guide surface, and also creates preconditions for reliable sealing.



     2.5.   The surface of the piston rod is rough ground after high-frequency quenching, and the hardness can reach hrc45, which improves the wear resistance of the surface. After chromium plating, the thickness of the coating reaches 0.08mm. After chromium plating, vibration grinding and polishing are adopted to ensure its roundness and cylindricity, and the surface roughness is further improved.



     3.    Torsion Bar forced mechanical synchronization, limit stopper balance with high precision Y-axis.





      4.   Hydraulic system,

     4.1   Introduce European advanced technology and adopt integrated valve block.

     4.2   The hydraulic system has overload overflow protection, which is safe and reliable.

     4.3   The oil pump adopts the high-pressure internal gear pump of Nachi company in Japan, which can withstand high pressure and low noise.

     4.4    The sealing ring is made of German Merkel company, with good sealing performance, reliable operation and long service life.

     4.5   There is a clear and intuitive oil level height display.

     4.6    The hydraulic system is equipped with a filter with high filtering accuracy.

     4.7    The machine tool can work continuously under rated load, and the hydraulic system is continuously stable.







      5.    The back gauge is welded by steel structure and has high rigidity. It is driven by Servo motor, ball screw and linear guide to ensure high precision operation. The bakc-gauge fingers has high parallelism and quick adjustment on Linear guider.




      6.    Manual table deflection compensation device,

The integral adjustable convex worktable can obtain accurate deflection compensation on the whole length. It effectively compensates the deflection deformation caused by the slider and the vertical plate of the worktable, and can obtain an ideal bending workpiece. The deflection compensation workbench can be maintenance free within the service life of the machine tool.





      7.    Special Top tool is fitted with Rapid clamping designed for bending thin stainless steel plates.

             4-way V-Die with different openings

             Materials of tools: 42CrMo HRC45



      8.    Foot pedal/swtich with emergency stop.



      9.    Front ram cover LED lamp for lighting.



      10.   CNC Controller for hydraulic press brake: Delem DA41T, Estun E300T, EASYCAT TP10s

  These controller only can control two servo axis-X & Y, and crwoning table.

  Multi-work-step programming function is able to achieve an automatic operation and contnuous positioning or multi-step procedures , as well as an automatic precision adjustment for positions of rear stopper and gliding block ;









Main components:



Optional model	Manufacturer	Remarks
CNC system	E300T TP-10S SNC53 DA41T	ESTUN EASYCAT   DELEM	(Optional) (Optional)
Hydraulic system	Main solenoid valves	Rexroth FIRST
Sealings	cylinders	MERKEL NOK
Back gauge	Servo motor Ball screw + Linear guider	EASTCAT Taiwan
Oil pump	Inner Gear oil pump	Nachi Sunny
Main power	AC motor Servo motor	Wanbang VEICHI	(Optional)
Work table	Manual crowning table Motorized Mechanical crowning table	PSL PSL	Optional
Security	Front two sides steel fences Back safe sensor protection	PSL	(Optional)
Front supporting arm	Fixed simple support arm support arms mounted on Linear guide	PSL	(Optional)
Voltage	380V/50HZ	PSL	Customized
Electric component	Schneider Relay,Contactor	Schneider
Foot switch	Korean Kaikun vertical switch	Korean Kaikun
Throat deptj	400mm 400-600mm(Optional)	PSL





  Optional functions or parts,



    1.   Front supporters moves smoothly on linear guider along worktable in rightward or leftward, also can be adjusted up and down.



  2. CNC controller SNC53 to control more axises with servo motors (X,Y1,Y2,R,Z1,Z2)



  3. Motorized Mechanical Crowning table (deflection compensation) adjusted by CNC controller.



  4. Back-gauge beam with double linear guider to move fingers easily (Z1,Z2).



  5. Manual or servo driving back-gauge fingers up/down (R-axis).



  5. Main motor updates to servo motor to save energy and power cost.



  6. Laser safety protector.



  7. Depth throat can upto 500mm or more.



  8. Cooling chiller for hydraulic system

























PPT(K) series main parameters.





NameModel	40/12.5	40/20	40/25	50/20	70/25	70/30	70/40	100/25	100/30	100/40	135/30	135/40	165/30	165/40
Nominal pressure kN	400	400	400	500	700	700	700	1000	1000	1000	1350	1350	1650	1650
Foldable board width mm	1250	2000	2500	2000	2500	3000	4000	2500	3000	4000	3000	4000	3000	4000
Column spacing mm	890	1640	2050	1640	2050	2550	3150	2050	2550	3150	2550	3150	2550	2150
Slider stroke mm	100	100	100	100	100	100	100	130	130	130	130	130	150	150
Slider adjustment distance mm	80	80	80	80	80	80	80	110	110	110	110	110	120	120
Distance between slider and table mm	300	300	300	300	300	300	300	310	310	310	310	310	350	350
Throat depth mm	200	200	200	200	200	200	200	200	200	200	200	200	250	250
Worktable width mm	140	140	140	140	140	140	140	180	180	180	180	180	180	180
Driving speed mm/s	100	100	100	78	100	100	100	100	100	100	100	100	100	100
Working speed mm/s	10	10	10	7	7	7	7	8	8	8	8	8	8	8
Return speed mm/s	90	90	90	80	88	88	88	60	60	60	60	60	68	68
Motor power kW	3	3	3	3	4	4	4	5.5	5.5	5.5	7.5	7.5	11	11
Net weight of machine tool kg	2000	2500	3000	2700	4400	4700	6200	5500	6000	8200	7000	8700	8500	10500
Rear block spacing mm	400	400	400	400	600	600	600	600	600	600	600	600	600	600
Fuel tank volume L	63	63	109.5	63	109.5	130.8	130.8	130.8	130.8	130.8	130.8	130.8	164.7	164.7
Overall size length mm	1555	2160	2660	2160	2645	3145	4050	2645	3145	4050	3145	4145	3150	4050
Dimensions mm	1075	1128	1128	1128	1200	1200	1200	1290	1290	1320	1400	1460	1550	1550
Appearance size high mm	2149	1980	1980	2030	2120	2120	2315	2240	2240	2420	2290	2420	2600	2600
