Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Guillotine Shearing Machine | Condition: | New |
|---|---|---|---|
| Cutting Material: | Metal Stainless Steel Carbon Steel Aluminum,MS/SS/GI Etc Steel Plate | Max. Cutting Thickness: | 13mm |
| Control System: | Estun E21S NC Control,Delem DAC-360 | Color: | Customizable |
| Voltage: | 380V,Customized | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | ||
| High Light: | hydraulic guillotine machines Hgs13x6200,hydraulic sheet metal guillotines Hgs13x6200,hydraulic guillotine cutting machines Hgs13x6200 |
||

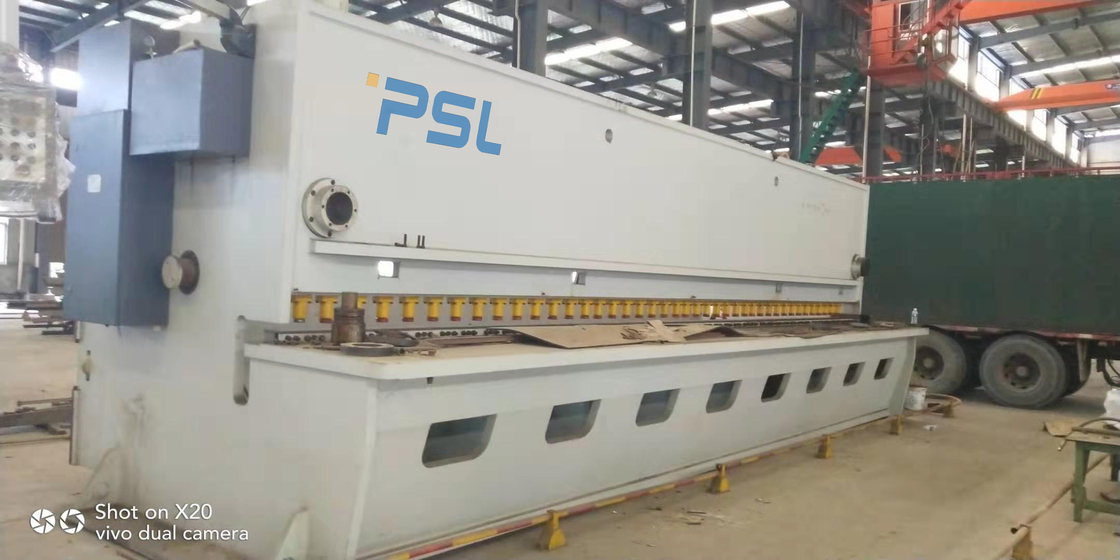

NC Hydraulic Guillotine Shearing machine LVD-YSD style model HGS13x6200
1.1. The upper blades holder adopts guillotine structure.
1.2. The rolling guide is supported by three-point type. The front preloading guide rail keeps the tool holder attached to the rear upper roller and the rear lower roller, and there is no clearance in reciprocating motion.
1.3. The lower fulcrum is fixed with good accuracy.
1.4. The upper tool holder adopts an inclined structure, which is convenient for blanking and improves the accuracy of the parts.
1.5. The shearing angle can be adjusted. The button control is used to adjust the shearing angle, which is convenient and fast.
1.6. When shearing thin plates, the shearing angle can be reduced, the distortion of the parts can be reduced to the minimum, and the incision is straight and without burrs.
1.7. The blade clearance adjustment is convenient and the shearing quality is improved. The clearance value of the blade is displayed numerically.
1.8. Rectangular blade, four edges can be used, long service life, easy grinding.
1.9. Movable blade support facilitates the adjustment of blade clearance uniformity, improves shear quality and prolongs blade service life.
1.10. Spherical ball support table, convenient for users to cut feed.
1.11. The front gauge with ruler perpendicular to the lower blade meets the requirements of user's pre-positioning operation.
2. Technical parameters,
| No. | Name | Value | Unit | Remarks |
| 1 | Max. cutting thickness | 13 | mm | σb≤450N/mm2 |
| 2 | Max. cutting width | 6200 | mm | |
| 3 | Max. cutting force | 730 | kN | |
| 4 | throat | 100 | mm | |
| 5 | Cutting angle | 0.5-2.5 | degree | adjustable |
| 6 | stroke | 7 | Times/min. | |
| 7 | Range of back-gauge | 10-1000 | mm | |
| 8 | Quantity of hold-down | 32 | pc | |
| 9 | Volume of oil tank | 680 | L |
| 10 | Power of main motor | 30 | kW | |
| 11 | Length | 7100 | mm | |
| 12 | Width | 2400 | mm | |
| 13 | Height | 2850 | mm | |
| 14 | Weight of machine | 29000 | kg |
3. Main parts of Machine
3.1. Using computer-aided design. The frame, slider and other important components are analyzed by ANSYS finite element analysis software to ensure the rationality of the strength and structure of the frame.
3.2 The whole welding structure is adopted for the frame and upper blades holder, and the German technology is used for eliminating internal stress. The accuracy is maintained well.
3.3 Use shot peening to remove rust and spray anti-rust paint.
3.4 The machine tool's pillars, workbenches, pressing beams and upper tool holders are formed by boring and milling machine at one time, which ensures the verticality and parallelism of each mounting surface.
4.1. Introducing advanced European technology and adopting integrated hydraulic control system, it has good reliability.
4.2. Series cylinder synchronization system is adopted, and the machine tool is uniformly loaded.
4.3. Hydraulic system uses skin-bag accumulator as auxiliary energy, absorbs pressure impact at the same time, machine tool runs smoothly and has low noise.
4.4. Hydraulic press makes shearing more reliable.
4.5. The pressing force increases with the increase of shear force.
4.6. Hydraulic system has overload overflow protection, safe and reliable.
4.7. The oil pump adopts the internal gear pump of NACHI Company of Japan, which can withstand high pressure and low noise.
4.8. Sealing rings are manufactured by Germany MERKEL Company and Japan NOK Company. They have good sealing performance, reliable operation and long service life.
4.9. Clear and intuitive display of oil level height.
4.10. The hydraulic system is equipped with filters with high filtering accuracy.
4.11. Machine tools can work continuously under rated load. The hydraulic system is stable and accuracy.
5. Electrical System
5.1. Using Estun NC controller E21s to control back-gauge travelling, special for Shearing machine
5.2. The key electrical components adopt imported parts from abroad, which conform to international standards, are safe and reliable, have long service life and strong anti-interference ability.
5.3. The electronic control cabinet meets the IP54 protection standard, and the electrical components are arranged in a standard and clearly marked.
5.4. It is equipped with a mobile operating table and a movable pedal switch for easy operation.
5.5. The equipment has reliable electrical safety measures such as emergency stop and overload protection to ensure the safety of equipment and personnel.
Product parameters:
| NameModel |
62/6
|
62/8
|
80/10
|
40/13
|
62/13
|
80/13
|
25/16
|
31/16
|
40/16
|
50/16
|
62/16
|
| Max. shear thickness |
|
|
|
|
|
|
|
|
|
|
|
| Mild steel mm |
6
|
8
|
10
|
13
|
13
|
13
|
16
|
16
|
16
|
16
|
16
|
| Stainless steel mm |
3
|
4
|
6
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
10
|
| Cutting length mm |
6200
|
6200
|
8000
|
4000
|
6200
|
8000
|
2500
|
3100
|
4000
|
5000
|
6200
|
| Shear force kN |
132
|
220
|
430
|
730
|
620
|
620
|
730
|
850
|
850
|
850
|
850
|
| Backgauge travel mm |
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
| Cutting angle adjustment ° |
0.5-2.5
|
0.5-2.5
|
0.5-2
|
0.5-2
|
0.5-2.5
|
0.5-2.5
|
0.5-3
|
0.5-2.5
|
0.5-2.5
|
0.5-2.5
|
0.5-2.5
|
| Strokes per minute |
7-45
|
8-35
|
7-30
|
10-30
|
10-30
|
7-45
|
7-30
|
12-33
|
8-30
|
6-20
|
7-20
|
| Throat mm |
100
|
100
|
100
|
200
|
60
|
400
|
300
|
300
|
200
|
100
|
100
|
| Number of pressing feet |
32
|
32
|
42
|
20
|
32
|
42
|
13
|
16
|
20
|
twenty two
|
32
|
| Fuel tank volume L |
686
|
686
|
845
|
561
|
686
|
1600
|
499
|
591
|
561
|
662
|
686
|
| Motor power kW |
15
|
twenty two
|
37
|
30
|
30
|
60
|
twenty two
|
twenty two
|
30
|
37
|
37
|
| Weight kg |
20000
|
24000
|
45000
|
14000
|
28000
|
55000
|
10000
|
12000
|
18000
|
28000
|
36000
|
| Size length mm |
7065
|
7095
|
9016
|
4885
|
7100
|
9090
|
3265
|
3865
|
5020
|
5935
|
7135
|
| Width mm |
2650
|
2540
|
2615
|
2190
|
2515
|
3525
|
2140
|
2140
|
2290
|
2550
|
2550
|
| Height mm |
2650
|
2815
|
3000
|
2488
|
2830
|
3360
|
2350
|
2350
|
2575
|
2870
|
2870
|
| 680 |
| 29000 |
