40 Ton Steel Plate Press Brake Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600

China PSL (WUHAN) SMART EQUIPMENT CO.LTD. certification
China PSL (WUHAN) SMART EQUIPMENT CO.LTD. certification
I'm Online Chat Now

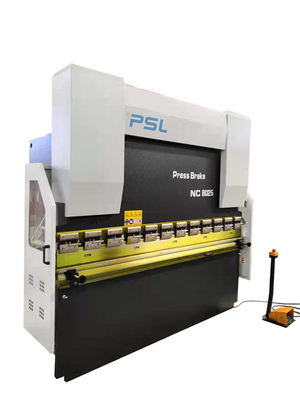

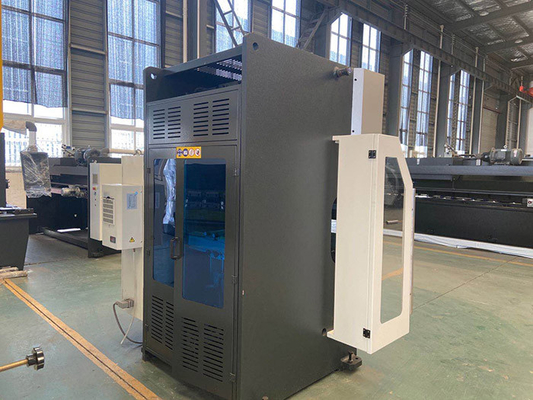

40 Ton Steel Plate Press Brake Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600

40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600
40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600
video play

Large Image :  40 Ton Steel Plate Press Brake Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600

Product Details:
Place of Origin: China
Brand Name: PSL, OEM
Model Number: WC67K-40/2000
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: Negotiable
Packaging Details: Naked in 40'HQ container
Delivery Time: 30-45days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Control Mode: NC System , Delem 41T, Estun E21 E300T, TP10s Driving: Normail Motor Or Servo Motor
Mainbody: Steel Plates Welded Structure Throat Depth: 200-400mm
Back-gauge: Ball Screw + Linear Guide Main Motor: Siemens,5.5kw To 30kw
Machine Type: Press Brake,sheet Metal Cutting And Bending Machine Material / Metal Processed: Stainless Steel,Carbon Steel,Aluminum,Brass / Copper
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Color: Gray Black+White Or Customized
Voltage: 220V/380V/415V/440V/customized Raw Material: Steel Stainless Sheet,Steel Plate/Sheet
Warranty: 2 Years Certification: CE/ISO
Highlight:

40 ton hydraulic press brake

,

6 foot hydraulic press brake

,

6 Foot Hyd Press Brake

Plate fabricating NC Hydraulic Press brake machine manufacturer 40T 1600mm 2000mm



I.  Functions and Characteristics:

  1.    All steel welded structure, vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
  2.    Torsion shaft forced synchronization of mechanical,limit stopper balance,with high precision.
  3.    Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of the ram, stable and reliableperformance.

      4.   Adjustment mechanism of ram independent from oil cylinder assembly to enhance sealing effect.

      5.  Top tool is fitted with Rapid clamping.

      6.    Front ram cover with lamp.




II.  Main Technical data:

1 Nominal pressure(KN) 400
2 Length of working table(mm) 2000
3 Dis. Between and frames(mm) 1650
4 Throat depth(mm) 220
5 Ram stroke(mm) 100
6 Approaching speed(mm/s) 70
7 Working Speed(mm/s) 7
8 Returning speed (mm/s) 80
9 Max. opening height(mm) 320
10 Main motor power(KW) 5.5
11 Dimensions(m)L*W*H 2.2*1.2*1.91
12 Weight(ton) Appro. 2750





III.  Main components:

  1.  Hydraulic system:

Sealings: B+S Germany, NOK Japan

Direction valves: Bosch-Rexroth or others

Pluging valves: China

Oil pump: ALLEAD Germany

40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600 0

  1.  Electric system:

Switch, Button: SCHNEIDER France

Relay, Contactor: SCHNEIDER

Inverter: DELTA Taiwan, INVT China

            NC controller: Estun E300T or DELEM DA41T with servo motors

            40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600 1 40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600 2



  1.  Back-gauge : Ball screw+Linear Guider Taiwan

​           40 Ton Steel Plate Press Brake  Bending Machine Hydraulic 6 Foot Hyd Press Brake wc67k-40t/1600 3





WC67K series main Specs.

Model Force Max. Length Vertical Depth Stroke Max. Opening Power L*W*H(mm) Weight
40t/2000 400 2000 1650 220 100 320 5.5 2000*1200*1910 2750
40t/2500 400 2500 1850 220 100 320 5.5 2500*1200*1910 3000
50t/2200 500 2200 1850 220 100 320 5.5 2000*1200*1910 2950
50t/2500 500 2500 1850 220 100 320 5.5 2500*1210*2000 3400
63t/2500 630 2500 1900 220 120 320 5.5 2500*1300*2210 4000
63t/3200 630 3200 2560 220 120 320 5.5 3200*1300*2210 4800
80t/2500 800 2500 1990 320 120 320 7.5 2500*1400*2300 5700
80t/3200 800 2500 2560 320 120 350 7.5 3200*1500*2300 6020
80t/4000 800 4000 3000 320 120 350 7.5 4000*1500*2400 7000
100t/2500 1000 2500 2020 320 150 400 7.5 2500*1600*2400 6000
100t/3200 1000 3200 2600 320 150 400 7.5 3200*1600*2600 6800
100t/4000 1000 4000 3000 320 150 400 7.5 4000*1600*2700 8000
125t/2500 1250 2500 2020 320 150 400 11 2500*1600*2400 6500
125t/3200 1250 3200 2580 320 150 400 11 3200*1600*2600 7200
125t/4000 1250 4000 3000 320 150 400 11 4000*1600*2700 8800
160t/3200 1600 3200 2600 320 200 460 11 3200*1700*2700 9500
160t/4000 1600 3200 3000 320 200 460 11 4000*1700*2800 10500
160t/5000 1600 4000 4000 320 200 460 11 5000*1900*3100 13000
160t/6000 1600 6000 5000 320 200 460 11 6300*1900*3200 18500
200t/3200 2000 3200 2500 320 200 460 15 3200*1950*2800 10500
200t/4000 2000 4000 3000 320 200 460 15 4000*1950*2800 12600
200t/5000 2000 5000 4000 320 200 460 15 5000*1950*3100 15500
200t/6000 2000 6000 5000 320 200 460 18.5 6000*1950*3300 21000
250t/3200 2500 3200 2600 400 250 530 18.5 3250*2000*3200 15500
250t/4000 2500 4000 3200 400 250 530 18.5 4000*2000*3400 18200
250t/5000 2500 5000 4000 400 250 530 18.5 5000*2000*3400 22500
250t/6000 2500 6000 5000 400 250 530 18.5 6000*2000*3400 27500
300t/3200 3000 3200 2530 400 250 530 22 3200*2000*3450 18500
300t/4000 3000 4000 3200 400 250 530 22 4000*2000*3450 22500
300t/5000 3000 5000 4000 400 250 530 22 5000*2000*3450 25000
300t/6000 3000 6000 5000 400 250 530 22 6000*2000*3450 30000
400t/4000 4000 4000 3000 400 250 530 30 4000*2180*3500 25000
400t/5000 4000 5000 4000 400 250 530 30 5000*2180*3500 29000
400t/6000 4000 6000 5000 400 250 530 30 6000*2180*3800 35000
500t/4000 5000 4000 3000 400 250 590 45 4000*2580*3500 35000
500t/5000 5000 6000 4000 400 250 590 45 5050*3500*3700 44000
500t/6000 5000 6000 5000 400 320 590 45 6050*3500*3700 55000
600t/4000 6000 6000 3000 400 320 590 55 4050*4500*3700 45000
600t/6000 6000 6000 5000 400 320 590 55 6050*4500*3700 60000



Remarks: Please understand If the parameters are changed according to new design.
