Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Foam Sealing Machine ,Foam Gasket Casting Machine | Product Type: | Dispensing Gluing Equipment,polyurethane Foam Gasket Machine |
|---|---|---|---|
| Industry Applicaiton: | Electrical Cabinet Doors, Panels, Electronics, Filters, Automobiles | Processing Type: | PU Foaming Machine |
| Raw Material:: | Polyurethane Material A+B | Control Mode: | CNC System, PLC Control |
| Automatic: | Fully Automatic Computer Control | CNC System: | WIN 10, Touch Screen |
| Materials: | Sheet Metal, Plates, Plastic Board, | Application Area: | Manufacturing Plant, Machinery Repair Shops, Sheet Metal Processin |
| Core Components: | Servo Motors, Pumps | Producing Size: | 2200x1200 |
| Strip Width: | 5-30mm | Power (kW): | 5.5kw |
| Dimension(L*W*H): | 4100*3200*2100MM | Warranty: | 1 Year |
| Voltage: | 220V/380V/415V,50HZ/60HZ 3Ph | After-sales Service: | Engineers Available To Service Machine Overseas, Video Technical Support, Media Technical Support |
| High Light: | Automatic Foam Sealing Machine,Foam Sealing Machine Polyurethane,Polyurethane Pu Gasket Dispensing Machine |
||

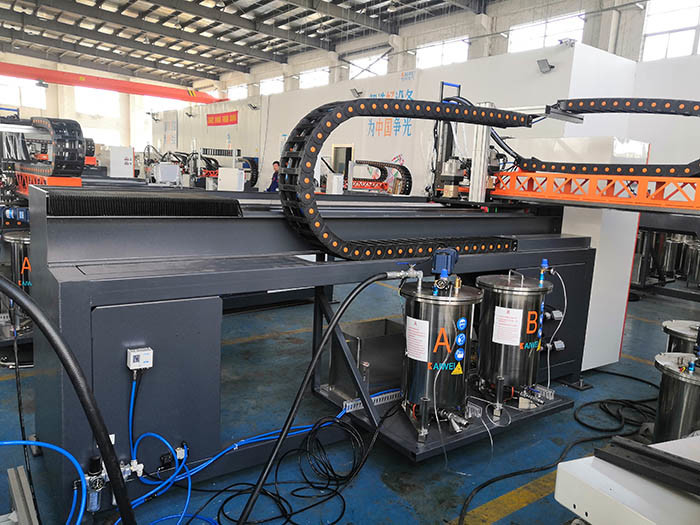

Pu Gasket Casting Machine Polyurethane Foam Gasket Injection Sealing Machine
Description of machine:
Two-component polyurethane foam sealing gasket machine is independent research and production, which is suitable for the electrical control cabinet, filter, sheet metal, automobile, lighting and other industries.
The sealing strip of processing is waterproof and dust-proof and adhesion. The protection grade can reach the grade advantage of IP67.
The Foaming machine Including:
1) Cantilever structure & 3-axis linear robot system;
2) Self-developed control system, Integrated operating controller;
3) Mixing head KW700 or KW900 for 2-component;
4) 15″ color screen human-computer interface control part ;
5) Wire or Wireless Hand operator panel for teach in programming;
6) Standard working table and material cleaning box;
7) Storage tanks for component A and component B;
8) One set operation manual & electric installation drawing ;
9) Quick-wear parts and other needed accessories;
Main parameters:
| Items | Parameters | |
| Machine | Model | KW-520 |
| Overall space | 4000X3300X2300mm (L*W*H) | |
| Working effective stroke | 2200X1200X200mm (X*Y*Z) | |
| Weight | 2000 KGS | |
| Chemical material | Name | Polyurethane |
| Components | 2 Components (A+B) | |
| System/operation | Operating system | Win 10 |
| Operating method | Keyboard/ Buttons | |
| Mixing head | Model | KW700/KW900 |
| Gasket width | 5-30mm | |
| Clean method | High pressure water clean+ air-blow cleaning | |
| Mixing ratio(A:B) | 1∶1-10∶1 | |
| Output | 1-4 g/s | |
| Repeated position precision | ±0.05mm | |
| Air pressure | 6-8 bar | |
| Mechanical frame | Type | 3-aix linear mechanical arm |
| Speed | 0-250mm/s | |
| Storage tank | Type | Air pressure tank |
| Volume | A Tank-40L B Tank-40L | |
| Automatic stirring | A Tank: YES B Tank: NO | |
| Glue refill | Manual (Option: Automatic) | |
| Air refill | Automatic | |
| Working table | Material | Welded square pipes |
| Size | 2000X1000X900mm (L*W*H) | |
| Electric power | Voltage | 3X380V |
| Power | 5.5kw | |
| Air | Dry compressed air | ≥6bar |
| Water | Clean tap water | |
|
Equipment configuration and brand list:
|
||
| Items | Brand (Country) | Remark |
| Controller | Industrial PC |
Screen size: 15”
|
| Metering pump Brand | Barmag (Germany) | Model A-3cc/r B-0.6cc/r |
| Mechanical frame Rail brand | HIWIN (Taiwan) | |
| Mechanical frame Gear-rack brand | HIWIN (Taiwan) | |
| Servo motor |
FUJI (Japan)
|
|
| Speed reducer | BGT(Taiwan) | |
|
Motor
|
FUJI (Japan) |
X axis, Y axis, Z axis
|
| Reducer | BGT (Taiwan) |
X axis, Y axis, Z axis
|
| Rail brand | HIWIN (Taiwan) |
X axis, Y axis, Z axis
|
| Gear-Rack | HIWIN (Taiwan) |
X axis, Y axis, Z axis
|
| Pneumatic solenoid valve | SMC (Japan) | |
| Air pressure processor | AIR TAG (China) | |
| Gear reducer motor | NGE (China) | |
| Water Pump | Himore (China) | |
| Main electrical components | Schneider (France) | |
| Switching power supply | Meanwell (China) | |
| Pressure sensor | Cato (China ) | |
Contact Person: Mr. Luo Zhengang
Tel: +86 13507189561
