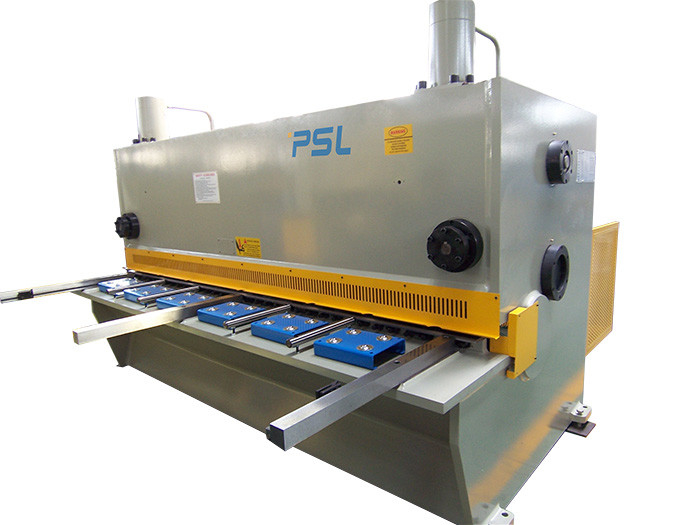

DAC362T CNC Shearing Machine High Speed 15T Hydraulic Sheet Metal Guillotine

1.  Performance characteristics of Shear,

    1.1,  The main frame is assembled structures to facilitate disassembly and transport.

    1. 2, The use of advanced integrated hydraulic system, good reliability.

    1. 3,  Triple support rolling Guide to eliminate the bearing clearance, improving the quality of cutting.

    1. 4,  Blade clearance by electric adjustment, Counter weight display.

    1. 5,  Rectangular blades, four edges can be used, the using life is long, adjustable shearing angle to reduce sheet metal distortion.

    1. 6,  The anti-twisting device used on inclined structures, blanking, and improve the accuracy of the work-piece.

    1. 7,  With piecewise shearing functions, with lighting alignment feature.

    1. 8,  Adjustable cutting angle.

2.   Rolled conveying table connecting Cut-to-length line is to prepare steel plate, dimensions 12100mmx1700mmx850mm, 6.5T, maximum load capacity 15T.

3.   Electromagnetic sucking device, transfer frame, weighing 12T. Max. length of work-piece 14.0 meters , 2 meters wide and 1.5 meters high, electromagnetic Sucker transfering workpiece. a total 27pieces of 200x200 electromagnetic Suckers, attraction about 20kg/cm2 (15-28).

In order to ensure security, prevent risks resulting from abrupt power loss after the suckers sucking plate, suction cup blackout in which they want to maintain equipment, can be suckers keep suction when unexpected power outages for about 20 minutes or so.

 3.   The automatic forward feeding with Flipper device

 Automatic forward feeding trips 1700mm, consists of three special hydraulic clamp (a,b,c), according to the choice of the  length of the work-piece where a, b, or a, c, clamping work-piece clamp by synchronous feeding systems.

 Flipping the last piece of plate to cut the waste edge.

 4.  This Shearing line adopts CNC controller Delem  DAC362T  to control and drive front gauge/feeding axis (3 servo axises). Motorized Cutting angle, and Blades gap/clearance  according to different plates thickness and length.

 CNC controller  DELEM  DAC362T Shear comfort at your fingertips. It improves the shearing effective and shearing quality.

     Features of Controller DAC-360T/DAC-362T

5.  Advanced integrated hydraulic control system, it has good reliability. more reliable and easy for maintenance. Hydraulic system uses skin-bag accumulator as auxiliary energy, absorbs pressure impact at the same time, machine runs smoothly and has low noise.

6. Stacking (after the hydraulic lift and electric discharge system), with stacking one on one, stacker automatic decline, when the work-piece to a certain height, stacking will be carried out along the Rails to a specified place.

   7

7.  Cameras with TV monitor display stacking and conveying of workpieces.

 8.  Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce distortion of the sheet.

Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
