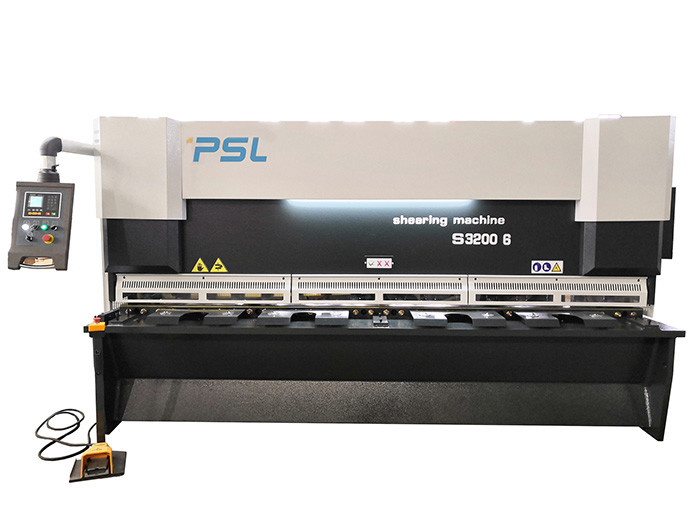

NC/CNC Large Hydraulic Guillotine Shear sheet metal Cutting machine with Oil Chilling
Features of Controller DAC360T
Panel based housing
- Bright LCD screen
- Back / front gauge control
- Retract function
- Cutting angle and gap control
- Stroke length limitation
- Manual movement of all axes
- Force control
- Sheet thickness measurement
- Return to Sender function
- Second and third servo axis (DAC-362T)
- Sheet support
Main Features and characteristics,
1. Using UG finite element analysis method, CAD auxiliary design, the frame adopts integral welding and vibration elimination internal stress treatment and other methods to make the machine tool have higher rigidity and vibration resistance.
The Shear machine frame is welded structure made by welding aparatus and stress relief process by Annealing treatment.
2. The Hydraulic Shear is a variable Rake Action machine which is produced in a variety of cutting lengths & capacity.
Back-gauge beam moving is controlled by NC/CNC controller.
Cutting angle and up/low blades clearance can be controlled & operated by NC/CNC controller according to different plates thickness and cutting length.
3. Hydraulic System:
Adopt integrated hydraulic control system, more reliable and easy for maintenance.
The tandem oil cylinder synchronization system is adopted, and the machine is evenly stressed. By adjusting the oil volume of the tandem cylinder, the shear angle can be adjusted more conveniently to meet the needs of shearing different plate thicknesses.
Pipe Connection:
All pipe connection using the EMB from GermanyBrand.
Siemens or WN motor, Allead pumps and Rexroth valves are used ont the Shear.
Hydraulic system is added Cooling Chiller special for hot area(Optional)
4. CNC Motorized back gauge system. 1000 mm long back gauge with 0,05 mm accuracy.
Back gauge clearance are controlled by Estun E21s or Delem DAC-360T which ensures a higher cut accuracy.
High accuracy back gauge with ball screw and linear guider.
5. It adopts professional gate type tool holder structure. The universal conveying ball supporting table is adopted to reduce the labor intensity of the operator.
6. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce distortion of the sheet.
Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
7. This Shearing line adopts NC controller Estun E21s or CNC controller Delem DAC360T or Cybelec T8 to control and drive front gauge/feeding axis (cutting length), Cutting angle, and Blades gap/clearance
CNC controller DELEM DAC360T Shear comfort at your fingertips. It improves the shearing effective and shearing quality.
8. The hydraulic system uses a bladder-type accumulator as an auxiliary energy source, and absorbs the pressure impact of the system at the same time, so that the machine tool runs smoothly and the noise is low.
Specifications of Shear QC11K-16x6000,
| Specification |
QC11K-16x6000 |
| Max. Cutting thickness |
16mm (Mild steel)
8mm (stainless steel)
|
| Max. Cutting width |
6000mm |
| Strokes |
4-12 times/min |
| Backgauge stroke |
10-1000mm |
| Shear angle |
0.5-2.5Degree |
| Depth of throat |
100mm |
| Height of working table |
900mm |
| Width of working table |
600mm |
| Main servo motor power |
37kw |
| Dimensions: |
7000x2400x3600 |
| Net weight Appro. |
36Tons |
| Volt. |
380V,50HZ
|
Standard configures Guillotine shear,
| Optional model |
Manufacturer |
Remarks |
| CNC system |
E21s
TP-07
P40T
DAC360
|
ESTUN
ELGO
DELEM
|
|
| Inverter |
Delta, INVT |
TW |
| Hydraulic system |
Main solenoid valves |
Rexroth
YUKEN
|
|
| Back gauge |
AC motor
Servo motor (Optional)
Ball screw + Linear guider
|
PSL
Taiwan
|
|
| Oil pump |
Inner Gear oil pump |
Sunny
|
|
| Main power |
AC motor
|
WN |
|
| Front work table |
Special pallet and ball rack |
PSL |
|
| Security |
Front steel fences + Back safe sensor protection (Optional) |
PSL |
|
| Blade clearance |
Manual
Motorized
NC controller operating
|
PSL |
|
| Electric components |
Schneider Relay,Contactor |
Schneider |
|
| Foot switch |
Kacon vertical switch |
Korean |
|
| Deep throat |
150mm -500mm(Optional) |
PSL |
|
QC11K series Shearing machine main parameters,
| Model |
Max.
Tkn.
|
Yield strength |
Max. Length |
Angle |
X.Stroke |
Power |
L*W*H(mm) |
Weight |
| QC11K-6*2500 |
6mm |
≤450kN/cm |
2500mm |
0.5-2.5° |
750mm |
7.5kW |
3140*1740*2040 |
4800Kg |
| QC11K-6*3200 |
6mm |
≤450kN/cm |
3200mm |
0.5-2.5° |
750mm |
7.5KW |
3750*1770*2150 |
5800Kg |
| QC11K-6*4000 |
6mm |
≤450kN/cm |
4000mm |
0.5-2.5° |
750mm |
11KW |
4830*1840*2150 |
7500Kg |
| QC11K-6*5000 |
6mm |
≤450kN/cm |
5000mm |
0.5-2.5° |
750mm |
15KW |
5830*1840*2150 |
13000Kg |
| QC11K-6*6000 |
6mm |
≤450kN/cm |
6000mm |
0.5-3° |
750mm |
15KW |
6480*2100*2300 |
18000Kg |
| QC11K-8*2500 |
8mm |
≤450kN/cm |
2500mm |
0.5-2.5° |
750mm |
11KW |
3040*1700*1700 |
5500Kg |
| QC11K-8*3200 |
8mm |
≤450kN/cm |
3200mm |
0.5-2.5° |
750mm |
11KW |
3860*1700*1700 |
6200Kg |
| QC11K-8*4000 |
8mm |
≤450kN/cm |
4000mm |
0.5-2.5° |
750mm |
11KW |
4640*1700*1700 |
7900Kg |
| QC11K-8*5000 |
8mm |
≤450kN/cm |
5000mm |
0.5~3° |
750mm |
18.5KW |
5400*2400*2000 |
13500Kg |
| QC11K-8*6000 |
8mm |
≤450kN/cm |
6000mm |
0.5~3° |
750mm |
22KW |
6480*2100*2350 |
19000Kg |
| QC11K-8*8000 |
8mm |
≤450kN/cm |
8000mm |
0.5~3° |
750mm |
22KW |
8580*2130*2350 |
29500Kg |
| QC11K-10*2500 |
10mm |
≤450kN/cm |
2500mm |
0.5-2.5° |
950mm |
15KW |
3040*1800*1700 |
6500Kg |
| QC11K-10*3200 |
10mm |
≤450kN/cm |
3200mm |
0.5-2.5° |
950mm |
11KW |
3850*1830*1900 |
7500Kg |
| QC11K-10*4000 |
10mm |
≤450kN/cm |
4000mm |
0.5-2.5° |
950mm |
15KW |
4650*2100*2000 |
11000Kg |
| QC11K-10*5000 |
10mm |
≤450kN/cm |
5000mm |
0.5~2.5° |
950mm |
15KW |
5750*2100*2000 |
16000Kg |
| QC11K-10*6000 |
10mm |
≤450kN/cm |
6000mm |
0.5~2.5° |
950mm |
15KW |
6500*2100*2300 |
24000Kg |
| QC11K-10*8000 |
10mm |
≤450kN/cm |
8000mm |
0.5~2.5° |
950mm |
15KW |
6800*2100*2300 |
32000Kg |
| QC11K-13*2500 |
13mm |
≤450kN/cm |
2500mm |
0.5-2.5° |
1000mm |
15KW |
3285*1830*2390 |
7500Kg |
| QC11K-13*3200 |
13mm |
≤450kN/cm |
3200mm |
0.5-2.5° |
1000mm |
15KW |
3855*1830*2390 |
9500Kg |
| QC11K-13*4000 |
13mm |
≤450kN/cm |
4000mm |
0.5-2.5° |
1000mm |
18.5KW |
4850*1830*2390 |
12500Kg |
| QC11K-13*6000 |
13mm |
≤450kN/cm |
6000mm |
0.5~3° |
1000mm |
30KW |
6850*1930*2650 |
30000Kg |
| QC11K-13*8000 |
13mm |
≤450kN/cm |
8000mm |
0.5~3° |
1000mm |
30KW |
8950*2130*2850 |
46000Kg |
| QC11K-13*9000 |
13mm |
≤450kN/cm |
9000mm |
0.5~3° |
1000mm |
45KW |
9980*2130*2850 |
65000Kg |
| QC11K-13*10000 |
13mm |
≤450kN/cm |
10000mm |
0.5~3° |
1000mm |
45KW |
11050*2500*3100 |
85000Kg |
| QC11K-16*2500 |
16mm |
≤450kN/cm |
2500mm |
0.5~3° |
1000mm |
22KW |
3440*1940*2830 |
9500Kg |
| QC11K-16*3200 |
16mm |
≤450kN/cm |
3200mm |
0.5~3° |
1000mm |
22KW |
4010*1940*2830 |
11000Kg |
| QC11K-16*4000 |
16mm |
≤450kN/cm |
4000mm |
0.5~3° |
1000mm |
30KW |
5010*1980*2830 |
15500Kg |
| QC11K-16*5000 |
16mm |
≤450kN/cm |
5000mm |
0.5~3.0° |
1000mm |
30KW |
5900*2600*2830 |
25000Kg |
| QC11K-16*6000 |
16mm |
≤450kN/cm |
6000mm |
1~3.0° |
1000mm |
37KW |
7000*2400*3600 |
36000Kg |
| QC11K-16*8000 |
16mm |
≤450kN/cm |
8000mm |
1~3.0° |
1000mm |
45KW |
8900*2900*3430 |
75000Kg |
| QC11K-20*2500 |
20mm |
≤450kN/cm |
2500mm |
1~3° |
1000mm |
30KW |
3440*1980*2830 |
14000Kg |
| QC11K-20*3200 |
20mm |
≤450kN/cm |
3200mm |
1~3° |
1000mm |
30KW |
4010*1900*2830 |
17000Kg |
| QC11K-20*4000 |
20mm |
≤450kN/cm |
4000mm |
1~3.0° |
1000mm |
37KW |
4850*2600*2900 |
22000Kg |
| QC11K-20*6000 |
20mm |
≤450kN/cm |
6000mm |
1~3.0° |
1000mm |
55KW |
6700*3000*3000 |
54000Kg |
| QC11K-30*2500 |
30mm |
≤450kN/cm |
2500mm |
1~3.0° |
1000mm |
45KW |
3440*1900*2830 |
25000Kg |
| QC11K-30*3200 |
30mm |
≤450kN/cm |
3200mm |
1~3.0° |
1000mm |
45KW |
4200*1900*3000 |
34000Kg |
Remarks: This parameter is based on 2019 desgin. If the parameters are not updated in time, please understand and contact with us by Chat online or email. THANKS.
