Product Details:
Payment & Shipping Terms:
|
| Name: | CNC Hydraulic Pipe/Tube Bending Machine | Condition: | New |
|---|---|---|---|
| Application: | Machinery Repair Shops, Manufacturing Plant, Farms | Automatic Grade: | Full Automatic, CNC System |
| Pipe Material: | Carbon Steel&SS&aluminum&copper Pipe | Belling Type: | "R" "U" "Z",R-shape & Straight Belling |
| Key Selling Points: | High-accuracy, Easy To Operate | Core Components: | Touch Screen + PSL, Pump, Motor, Servo Units |
| Maxmum Bending: | Carbon Steel Pipe Ф63.5*2.0t; Stainless Steel Tube Ф57.1*2.0t | Molds: | Multi Cells, Or Single Stair，harden HRC60-63 |
| Usage: | Pipe Tube Bending | Y.B.C Axes: | Servo Driving |
| Pipe Diameter: | 12-63mm | Max R For Bending: | 250mm |
| Max Angle For Bending: | 185° | Bending Process For Every Pipe: | 16 |
| Power Of Main Motor: | 10KW | Weight: | 2800kg |
| Dimension(l*w*h): | 4300x1000x1200mm | Color: | Bule, Gray Black+White, Or Customized |
| Voltage: | 380V 50HZ 3Phase，Customized | Warranty: | 12 Months |
| High Light: | hydraulic mandrel tube bender,hydraulic mandrel pipe bender,mandrel tube bending machine |
||

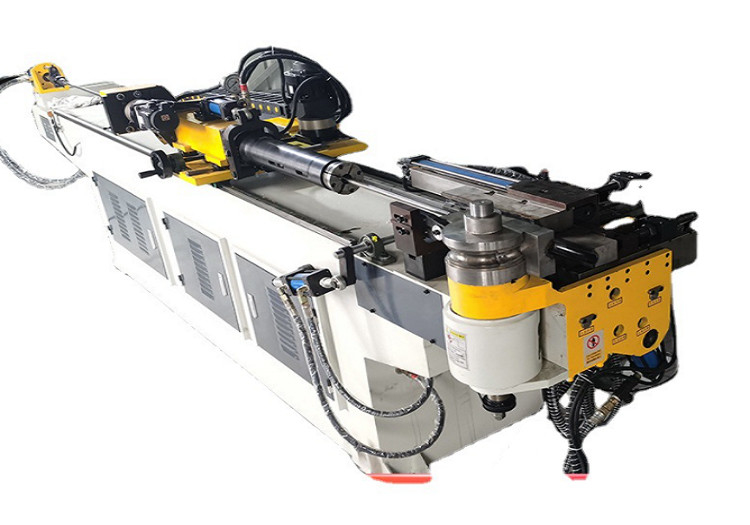

CNC Tube Bending Machine Multi-Layers Readout Function 3D Simulation Hydraulic Bender
Mechanical features:
1. The touch screen and numerical control module are adopted for dialogue operation, and the program setting is simple and easy.
2. The structure of the bed is stable and not easy to deform.
3. 16 bend angles can be set for each file, and the memory can store 400 groups of files.
4. It has the function of slow positioning, and the repetition accuracy is ± 0.1 °.
5. The error message is displayed on the screen to help the operator eliminate it immediately.
6. The touch screen can be switched between Chinese and English, and other languages can also be ordered on demand.
7. The feeding shaft, elbow shaft and tilt shaft are driven by servo motor, with high precision and good stability.
8. The feeding mode can be pinch feeding or direct feeding according to different needs.
9. X.y.z. coordinates can be automatically converted into y.b.c. processing values.
10. After the data is edited, it is protected by a key to prevent the data from being modified arbitrarily.
11. The electric control system is equipped with heat exchanger for automatic heat dissipation. If necessary, numerical control air conditioner can be purchased to ensure the service life of the electric control system.
12. An automatic oil filling system can be installed as required to reduce the friction of the elbow, improve the service life of the mandrel and ensure the quality of the elbow.
13. The setting of feeding position, safety position, wheel die interference position and guide die interference position of the feeding trolley can be fine tuned by the hand wheel pulse generator, and the position can be automatically memorized to eliminate the loss of human measurement error and machine collision.
14. The feeding shaft will be automatically detected before action to avoid collision with the machine.
15. During the bending test, the decomposition action can be selected, the interference points can be observed, and the action can be modified to improve the efficiency
Main technical parameters:
| Machine type | SB-63CNC |
| Maximum bending R for carbon pipe is:1.5D |
Ф63.5*2.0t |
| Maximum bending R for s.s pipe is 1.5D |
Ф57.1*2.2t |
| Max Radius for bending | 250mm |
| Maximum feeding stroke | 2500mm |
| Max angle for bending |
185° |
| Bending process for every pipe |
16groups |
| Working speed/bending speed | Max. 40 ° / S |
| Rotating pipe speed | Max. 270 ° / S |
| Feeding speed | Max. 900mm/ S |
| Accuracy bending angle | ±0.15 ° |
| Rotating angle accuracy | ±0.1 ° |
| Feeding length | ±0.1mm |
| Data input mode | working value ( Y.B.C) |
| Oil pressure | 14mpa |
| Rotor servo motor | 850W |
| Feeding servo motor | 1.5KW |
| Main motor power |
10kw |
| Weight | 2800kg |
| Size(mm) | 4300*1000*1200 |
Tube bending samples
