Product Details:
Payment & Shipping Terms:
|
| Name: | NC Hydraulic Double-head Tube Bending Machine | Condition: | New |
|---|---|---|---|
| Application: | Manufacturing Plant, Construction Works, Tubes Processing | Automatic Grade: | Automatic, NC System |
| Pipe Material: | Carbon Steel, Stainless Steel，Aluminum Tube, Copper Tube | Belling Type: | "U" "Z"; Straight Belling |
| Key Selling Points: | High-accuracy | Core Components: | Touch Screen + PSL, Pump, Motor |
| Maxmum Bending: | Carbon Steel Pipe Ф38*1.8t; Stainless Steel Tube Ф38*1.5t | Pipe Diameter: | 12-38mm |
| Molds: | Double Sides，harden HRC60-63 | Y.B.C Axes: | Hydraulic Driving |
| Max R For Bending: | 38-200mm | Max Angle For Bending: | 185° |
| Power Of Main Motor: | 5.5KW | Weight: | 1500kg |
| Dimension(l*w*h): | 3800x850x1600mm | Color: | Bule, Gray Black+White, Or Customized |
| Voltage: | 380V 50HZ 3Phase，Customized | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | ||
| Highlight: | cnc pipe bending machine hydraulic,stainless steel tube bending machine,stainless steel tube bender |
||
Automatic double-head stainless steel pipe mild steel tube bending machine
Main features:
1. It is divided into standard type and rotary type according to different substructure structures
a. Standard type: the angle of non rotatable two-dimensional space can be adjusted from 0-185 ° at will, but the problem of reclaiming must be considered.
b. Rotary type: it can rotate in two-dimensional space, and the double ends can be adjusted arbitrarily from 0-90 °.
2. PC control is adopted, which is convenient for operation and maintenance.
3. It can be divided into full cycle, half cycle and selective operation.
4. One or more operations can be selected at a time according to the outer diameter of different materials and their size.
5. Standard accessories: one set of mould and one set of stop ruler.
Main technical parameters:

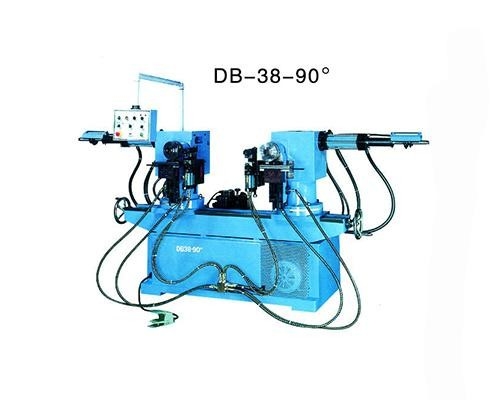

| DB-38-90° | |
| Hydraulic motor power | 5.5kw |
| Maximum applicable pipe (carbon steel pipe) | Φ38*1.8m/mt |
| Maximum oil pressure | 140kg/cm2 |
| Applicable bending radius | 38-200m/m |
| Applicable bending radius | 185° |
| Double bend center range | 170-1450m/m |
| Maximum processing quantity | Φ25*2tube |
| Weight of machine | 1500kgs |
| Dimension | 3800x850x1600mm |
