Product Details:
Payment & Shipping Terms:
|
| Name: | Pipe End Chamfering Machine | Condition: | New |
|---|---|---|---|
| Application: | Manufacturing Plant, Construction Works, Tubes End Processing | Automatic Grade: | Automatic, |
| Pipe Material: | Various Of Metal Pipe, Steel Bar | Key Selling Points: | Easy To Operate |
| Function: | Chamfer Inside Angle, Out Angle And Surface | Core Components: | Motor,gearbox |
| Pipe Diameter: | 20-150mm | Max.Shrinking Capacity: | 1.5mm - 3.5mm |
| Processing Type: | Knife Chamfering | Control: | Pneumatic |
| Power Of Main Motor: | 3.5KW | Weight: | 1200kg |
| Dimension(l*w*h): | 1200x750x1400mm | Color: | Bule, Gray Black+White, Or Customized |
| Voltage: | 380V 50HZ 3Phase，Customized | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | ||
| High Light: | tube end facing chamfering machine,tube end facing chamfering machine,automatic pipe chamfering machine |
||

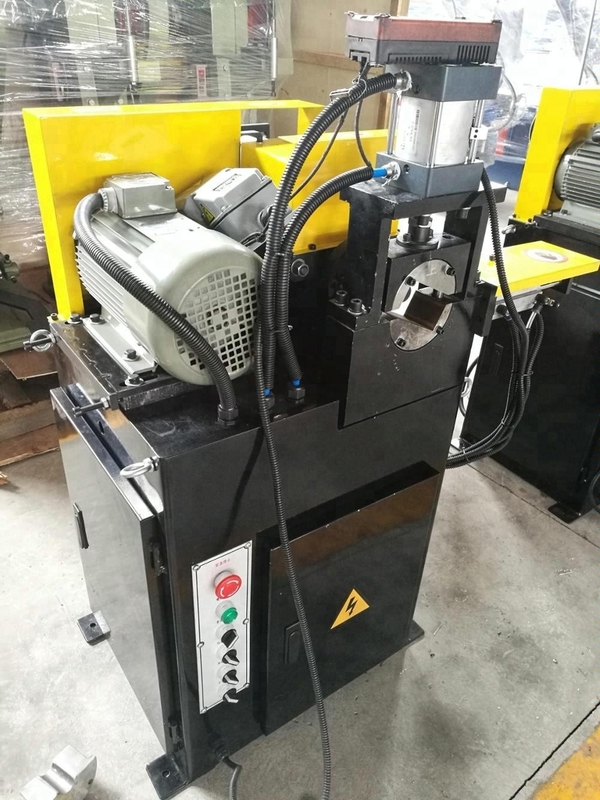

Single head tube chamfering machine edge beveling machine for metal pipe
Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Detail Information
| Categories | Single head pipe chamfering machine |
|---|---|
| Brand | PSL pipe Chamfering machine |
| Model | EF-AC/80 Tube End Finishing Machines |
| After-sales Service Provided | Engineers available to service machinery overseas |
| control way | pneumatic |
| Tube End Finishing Machines | Tube End Finishing Machines |
| FOB port | Shanghai, China |
| Terms of Payment | L/C, T/T, Western Union, MoneyGram |
| Download DOC |
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Specification/Model | EF-AC/80 | EF-AC/150 |
| Main motor power | 2.2kw | 3.7kw |
| Main axis speed | According to the pipe material | |
| Processing diameter | 30-82mm | 35-150mm |
| Processing external angle | 20-50mm | 35-120mm |
| compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
| Size | 500mmx 400mm x 850mm | 950mmx 730mm x 1350mm |
| Weight | 400kg | 500kg |
