Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Pipe End Forming Machine | Condition: | New |
|---|---|---|---|
| Application: | Manufacturing Plant, Construction Works, Tubes Processing | Automatic Grade: | Automatic, NC System |
| Pipe Material: | Various Of Metal Pipe | Key Selling Points: | High-accuracy, Easy To Operate |
| Core Components: | Touch Screen + PSL, Pump, Motor | Maxmum Bending: | Carbon Steel Pipe Ф60*2t; Stainless Steel Tube Ф38*1.5t |
| Pipe Diameter: | 20-100mm | Max.Shrinking Capacity: | 1.5mm - 3.5mm |
| Molds: | Clamping Mold,forming Mold，harden HRC60-63 | Y.B.C Axes: | Hydraulic Driving |
| Power Of Main Motor: | 2.2KW - 11KW | Weight: | 600kg - 1800kg |
| Dimension(l*w*h): | 2800x750x1600mm | Color: | Bule, Gray Black+White, Or Customized |
| Voltage: | 380V 50HZ 3Phase，Customized | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | ||
| Highlight: | cnc tube end forming machines PSL,Hydraulic tube end forming machines,tube pipe end forming equipments |
||

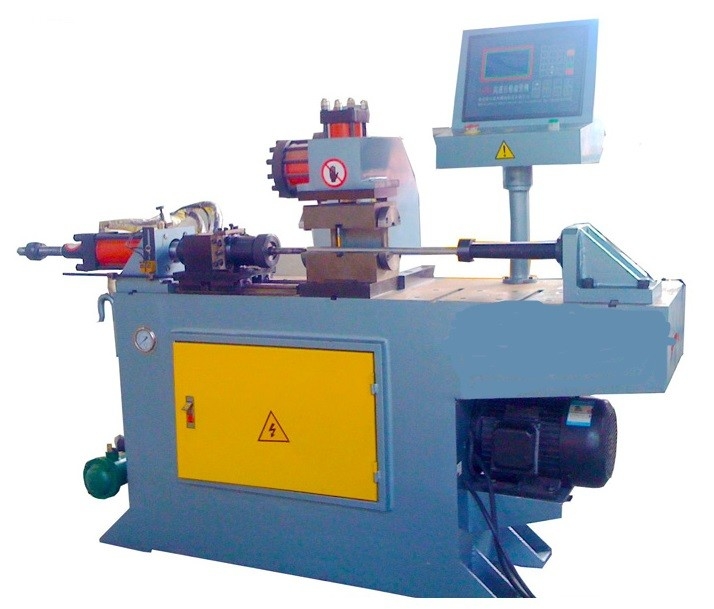

Hydraulic tube end forming machine, automatic pipe forming machine, pipe end forming machine
Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Main features:
1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers' requirements
6) Forming mold choose: 1. Form in one mold; 2. Form in two molds; 3. Form in 3 molds; 4. Form in 4 molds
Technical parameter:
| Type | TM-40 | TM-60 | TM-80 | TM-100 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
| Max processing length(mm) | 110 | 130 | 150 | 180 |
| Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
| Weight(kg) | 600 | 950 | 1600 | 1800 |
| Remark |
1.The max processing length can according to customers requirement. |
|||
