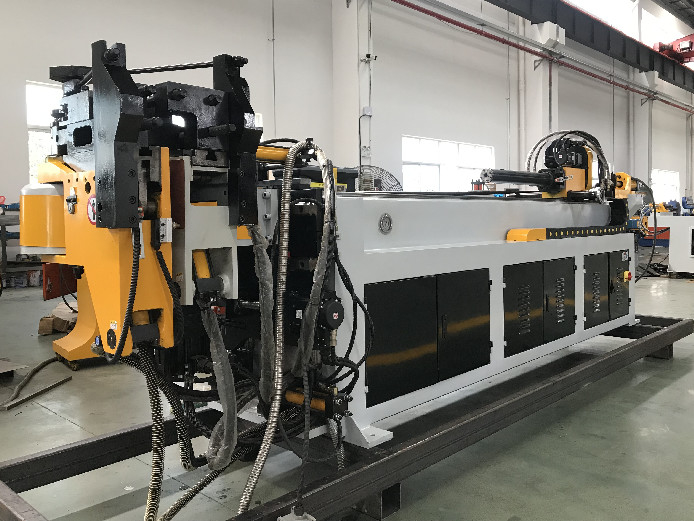

Copper Tube Mandrel Cnc Automatic Pipe Bending Machine Hydraulic Tube Bender 3D Multilayer

Full Automatic hydraulic 3D multilayer CNC hydraulic pipe bending machine tube bender

Mechanical features:

1. The electric control system adopts well-known controllers in Japan, such as servo driver, servo motor, positioning module, CPU Etc., strong performance and good stability.

2. Mitsubishi's super large CPU can accommodate 400 groups programs. If it is insufficient, client can purchase another transmission software and install it in the computer, store the files on hard disk and expand the number of editing groups infinitely.

3. Industrial computer type: it is equipped with Windows operating system, which is matched with Mitsubishi servo system. In addition to the advantages of Mitsubishi servo drive, it also has the convenience of file management of Windows operating system. It can also store files on hard disk or soft disk, and infinitely expand the number of editing groups.

4. It has the function of automatically detecting errors and faults and displaying them on the screen, so that the operator can easily remove obstacles.

5. All processing data are input by touch screen.

6. Each bend can be changed according to different materials, and the compensation value, speed and demoulding clearance can be set.

7. For each bend of the same pipe, seven action sequences and eight speeds can be written separately, so that the operator can use them together, improve work efficiency and reduce the interference points of pipe fittings.

8. The touch screen can be switched between Chinese and English, and other languages can also be ordered on demand.

9. The feeding shaft, elbow shaft and tilt shaft are driven by servo motor, with high precision and good stability.

10. The feeding mode can be pinch feeding or direct feeding according to different needs.

11. X.y.z. coordinates can be automatically converted into y.b.c. processing values.

12. After the data is edited, it is protected by a key to prevent the data from being modified arbitrarily.

13. The electric control system is equipped with heat exchanger for automatic heat dissipation. If necessary, numerical control air conditioner can be purchased to ensure the service life of the electric control system.

14. An automatic oil filling system can be installed as required to reduce the friction of the elbow, improve the service life of the mandrel and ensure the quality of the elbow.

15. The printer can be connected to print the data displayed on the screen.

16. The setting of feeding position, safety position, wheel die interference position and guide die interference position of the feeding trolley can be fine tuned by the hand wheel pulse generator, and the position can be automatically memorized to eliminate the loss of human measurement error and machine collision.

17. The feeding shaft will be automatically detected before action to avoid collision with the machine.

18. During the bending test, the decomposition action can be selected, the interference points can be observed, and the action can be modified to improve the efficiency

Main technical parameters:

Tube bending samples
