Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Profile Hydraulic Section Bending Machine |
|---|---|---|---|
| Type: | W24S-180, Profile Section Rolling Machine | Application: | Carbon Steel Profiles Bending, SS Tube Bending |
| Material / Metal Processed: | Profiles Of Carbon Steel,Stainless Steel,Aluminum | Machine Type: | 3 Rolls Hydraulic Section Rolls Bending Machine |
| Raw Material: | Profiles /tube/pipe/ Steel Bar Rolling | Extra Services: | Profiles Section Machining,Round Tube Forming, |
| Operation: | NC & CNC System Operate | Automation: | Electric, Hydraulic, Automatic |
| Power: | Electrical, Hydraulic | Diameter Of Roller: | 180mm |
| Max. Section Modulus Of Elasticity: | 210 CM2 | Bending Round Tube: | 168.8x10mm, |
| Min. Bending Diameter: | 2000mm | Bending Speed: | 5 M/min |
| Pressure Of Hydraulic System: | 22.5MPa | Main Motor: | 30 Kw |
| Voltage: | 220V/380V/415V/440V/customized,380V/50HZ/3phase 220V/60HZ/3phase | Color: | Customized,blue /OEM |
| Dimension: | 2400 * 1500 * 1600mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Warranty: | 1 Year | ||
| High Light: | hydraulic plate rolling machine,cnc pipe rolling machine,cnc section rolling machine |
||

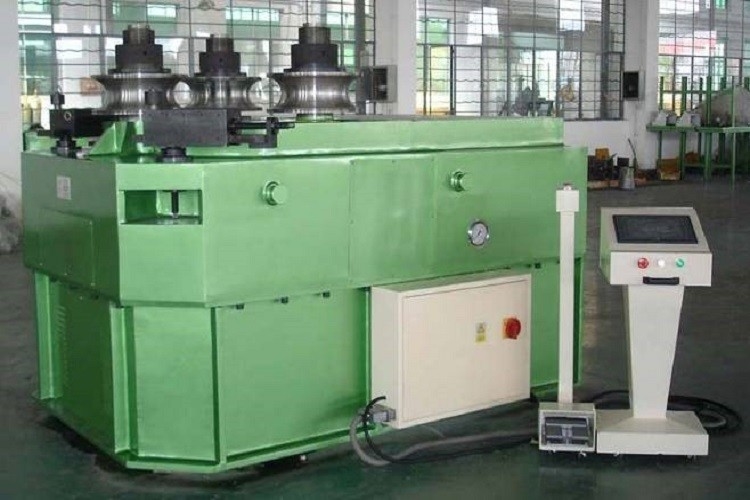

Horizontal three rolls hydraulic drive profile section bending machine
1. Three roll hydraulic drive with advantage of stable.
2. Two side rolls adjust the curvature with grating ruler to control the range of curvature. The two side rolls can adjust curvature simultaneously or separately. Easy operation and high accuracy.
3. Controlled by Touch Screen and PLC.
4. Malfunction auto detective and warning system. Screen will show all malfunction information and solution.
5. Calculator shows the processed quantity at any time.
6. All data can stock in PLC for ever and can be used at any time
7. With manual, semi-auto and full auto operation.
8. Able to bend different profiled like angle iron, U beam, I beam, flat bar, round tube and so on.
Working Principle:
When workpeice is impacted within middle roll and side rolls it brings bending moment. Force of friction drives the workpiece when roller rolling. Then the workpiece turns to circle under the bending moment and friction of force.
This machine uses the setup of oil vat entering and PLC control and has achieved high automation. The precision of the oil vat entering is controlled by grating ruler which ensures precision of the diameter of workpeice. The entering of oil vat drives the rolling arm rotating around the mandrel and then brings the position change of side roller to change the radius of workpiece.
Processing capacity:
|
Round Pipe |
Max. OD | 177.8 |
| wall thickness | 10 | |
| min.bending dia. | 2500 | |
|
Round Steel Rod |
Max. OD | 110 |
| min.bending dia. | 800 | |
|
Square Pipe |
max.section | 140x140 |
| wall thickness | 8 | |
| min.bending dia. | 2400 | |
| Flate Pipe bend | max.section | 200 |
| wall thickness | 30 | |
| min.bending dia. | 1900 | |
| Flate Pipe bend | max.section | 180 |
| wall thickness | 70 | |
| min.bending dia. | 800 | |
| Angle Steel | max.section | 180×18 |
| min.bending dia. | 3200 | |
| Angle Steel | max.section | 180×18 |
| min.bending dia. | 3200 | |
| U steel | U steel Model | 18 |
| min.bending dia. | 1600 | |
| U steel | U steel Model | 18 |
| min.bending dia. | 1600 | |
| U steel | U steel Model | 18 |
| min.bending dia. | 2800 | |
| T steel | T steel Model | 130x12 |
| min.bending dia. | 2000 | |
| T steel | T steel Model | 120x11 |
| min.bending dia. | 1800 | |
| Rectangle Pipe | Rectangle Pipe model | 160x80x8 |
| min.bending dia. | 2500 | |
| Rectangle Pipe | Rectangle Pipe model | 150x100x6 |
| min.bending dia. | 2500 | |
| H Steel | H Steel model | 16 |
| min.bending dia. | 2000 | |
| H Steel | H Steel model | 25 |
| min.bending dia. | 4000 | |
| Square Steel | Square Steel model | 100 |
| min.bending dia. | 800 |
Main Technical parameters,
|
Technical Parameter:
|
W24S
|
||||||
|
140
|
180
|
260
|
320
|
400
|
500
|
||
|
Profile bending Mold(Max)
|
140
|
180
|
260
|
320
|
400
|
500
|
|
|
CoilingSpeed (m/min)
|
5
|
4
|
|||||
|
Yielding Limit of Sheet Matal(mpa)
|
△S=250
|
||||||
 |
Profile(Max)mm
|
140*16
|
150*16
|
160*16
|
180*14
|
200*18
|
200*20
|
|
Bending diameter (Min)mm
|
2400
|
2600
|
2600
|
3600
|
3600
|
4000
|
|
|
Profile(Mix)mm
|
50*5
|
50*6
|
60*6
|
70*6
|
75*6
|
85*6
|
|
|
Bending diameter (Min)mm
|
1000
|
1200
|
1200
|
1500
|
1400
|
1600
|
|
|
|
Profile(Max)mm
|
150*16
|
160*16
|
180*14
|
200*18
|
200*24
|
250*25
|
|
Bending diameter (Min)mm
|
2200
|
2000
|
2500
|
3600
|
3600
|
4000
|
|
|
Profile(Mix)mm
|
50*5
|
50*6
|
60*6
|
70*6
|
75*6
|
85*6
|
|
|
Bending diameter (Min)mm
|
800
|
1000
|
1000
|
1300
|
1500
|
1600
|
|
|
|
Material
|
30
|
32
|
36
|
40
|
45
|
50
|
|
Bending diameter (Min)mm
|
1200
|
1500
|
1800
|
2000
|
2000
|
2400
|
|
|
|
Material
|
30
|
32
|
36
|
40
|
45
|
50
|
|
Bending diameter (Min)mm
|
1700
|
1800
|
1800
|
2000
|
2000
|
2400
|
|
|
|
Profile(Max)mm
|
280*50
|
300*50
|
330*50
|
360*60
|
400*75
|
500*76
|
|
Bending diameter (Min)mm
|
1300
|
1500
|
1900
|
2000
|
2400
|
2400
|
|
|
|
Profile(Max)mm
|
150*40
|
180*30
|
190*40
|
190*50
|
200*50
|
200*60
|
|
Bending diameter (Min)mm
|
1500
|
2000
|
2000
|
2400
|
2200
|
2500
|
|
|
|
Profile(Max)mm
|
168*6
|
168*8
|
219*8
|
245*8
|
273*8
|
323*10
|
|
Bending diameter (Min)mm
|
2000
|
2000
|
3500
|
3000
|
3500
|
4200
|
|
|
|
Profile(Max)mm
|
100
|
110
|
120
|
135
|
150
|
160
|
|
Bending diameter (Min)mm
|
1200
|
1300
|
1350
|
1800
|
2000
|
2000
|
|
|
|
Profile(Max)mm
|
125*10
|
140*10
|
150*10
|
165*10
|
180*12
|
200*12
|
| Bending diameter (Min)mm |
2500
|
3000
|
3000
|
3500
|
3500
|
500
|
|
