Metal Sheet Cnc Rolling Machine Automatic Hydraulic Plate Bender Roller Shipboard

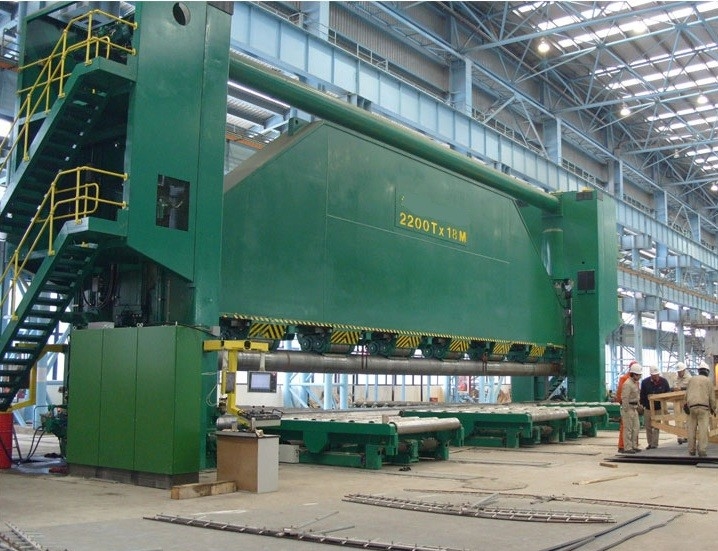

Ship Plate Bending Machine CNC Hydraulic Shipboard Rolling machine

Series on large-scale extra-wide roll-omnipotent machine is Asian largest marine machine,with pre-bending,roll on take-off and landing vertically.

The level of use of mobile hydraulic transmission,the level of use of mobile hydraulic Cup column Cylinder structure,simple structure,processing,easy to install,and the rack beams,the device between the use of rolling-aligning device.

Use of the chassis hinge system connected to stud,to facilitate processing and so on.

Bending the establishment of large-scale extra-wide roll on-roll set up pressure,the beam mathematical model,the pre-drum roll, roll under the lower part of the set with roller-conditioning, work roll deflection at 1/3000xL(face length) below,to improve the straightness of the product.

Control of part of the adoption of HMI(human-machine interface)control technology, HMI development in recent years to replace the traditional keyboard and control panel of intelligence operation to control the display.

Technical parameters,

Steel Plate Rolling Machine Features,

- Individual Roll Driven: Two bottom rollers are driven by the individual reducers, which avoid mechanical interference, extend the service life of the working rolls, and improves the out-surface quality of the workpiece.

- Flexing Compensation: There is an adjustable backup roll device between the upper beam and upper back-up rollers, or the bottom beam and the bottom back-up rollers, which function is to compensate for the rolling deformation. This device is driven by the plunger-type cylinder. A load of compensation is set by the deformation performance curve, which guarantees high straightness of the workpiece while processing the plates in different thicknesses and widths.

- Mutable Center Distance: Adopting the technique of mutable center distance between the two bottom rollers, the aim is to reach a wider range and higher precision for rolling plates.

- Horizontal Moving: The bottom roll seat and each group of backup roll seats are connected with the horizontal-moving reducers in the same specification, and the horizontal moving reducers join together through the universal joint as to move synchronously. Adopting mechanical moving one way makes the oil cylinders be synchronous, the other way owns the advantage of excellent self-locking performance.

- Control System: The system of the metal sheet forming machine can work in both rolling and bending, and the two ways convert to each other conveniently. This system of ship plate bending machine has features of powerful anti-interference ability, adaption to the severe industrial environment and sufficient extending capacity, etc.

The Advantages Of Ship Plate Bending Machine,

Efficient and easy to roll-bending outer strake;

The bottom roll center distance is adjustable, such as lifting columns etc.

Eccentric bending, which for minimizing the straight part of the end.

This metal sheet fabrication equipment has an easy operation to complete grooved hatch flange(hem).
