Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Profile Hydraulic Bending Machine |
|---|---|---|---|
| Type: | HRBM50HV, Profile Rolling Machine | Application: | Stainless Steel Tube Rolling,carbon Steel Pipe Bending |
| Automation: | Electric, Hydraulic, Manual | Material / Metal Processed: | Profiles Of Carbon Steel,Stainless Steel,Aluminum |
| Machine Type: | Mechanical/hydraulic Rolls Bending Machine | Raw Material: | Profiles /tube/pipe/ Rolling,Steel Bar |
| Extra Services: | Profiles Machining,round Forming, | Power: | Electrical, Hydraulic |
| Diameter Of Upper Roller: | 50mm | Bending Round Tube: | 50x2mm, |
| Min. Bending Diameter: | 600mm | Main Motor: | 2.2kw |
| Spindle Speed: | 9 R/min | Voltage: | 220V/380V/415V/440V/customized,380V/50HZ/3phase 220V/60HZ/3phase |
| Color: | Customized,blue /OEM | Dimension: | 1000 * 800 * 1600mm |
| Weight: | 550kgs | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Warranty: | 1 Year | ||
| Highlight: | metal profile bending machine,hydraulic profile bending machine,profile bending machine |
||

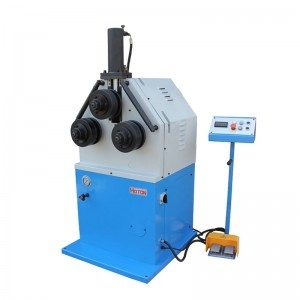

Hydraulic metal strip tube pipe profile bending machine 3 roller 360 degree rolling
The profile bending machine is a special equipment specially designed for bending and forming of profiles. It can bend metal profiles such as angle steel, flat steel, channel steel, steel pipe, profiled steel, etc. into a cylindrical shape without changing the cross-section characteristics. Or spiral workpiece.
Product Discription:
1. Horizontal and vertical operation
2. With standard foot pedal
3. Special cast frame
4. Shafts are hardened with special steel material
5. Rollers are special steel material hardened and grounded
6. Gears Milled with full material
7. Optional rollers for choice
Standard equipments:
Optional accessories:
