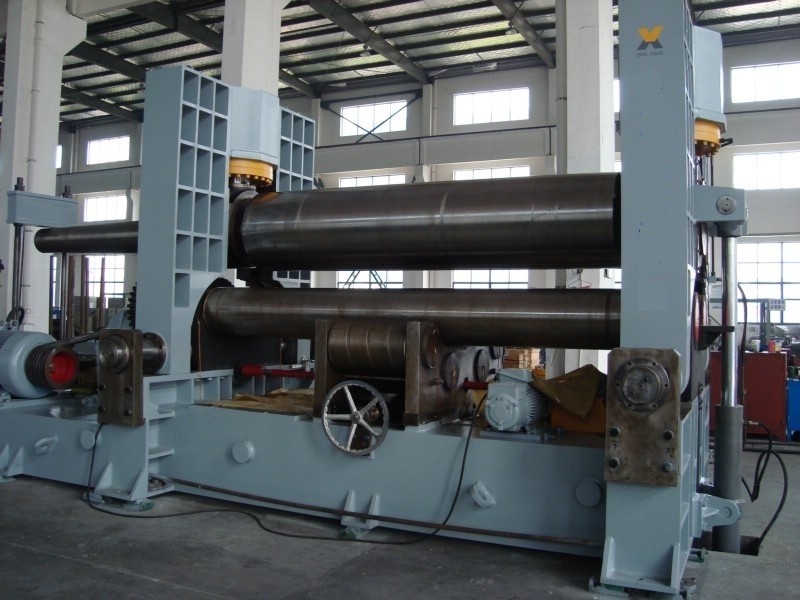

Name: 3-rollers Symmetrical Hydraulic Plate Rolling Machine Machine Type: Plate Rolling Machine, W11SNC-50x4000
Type: W11SNC-50x4000 Condition: New
Application: SS Plate Bending,carbon Steel Plate Bending, Making Oil Tube/pipes, Material / Metal Processed: Carbon Steel, SS,Alloy Steel
Automation: Automatic, Manual Control Method: NC Semi-automatic, ELECTRO-HYDRAULIC
Control Systme: PLC Omron, Touch Screen Rolling Function: With Pre-bending/rolling, Symmetrical Rolling
Max. Pre-bending Thickness: 45mm Carbon Steel Plate, 40mm Stainless Steel Plate Max. Central Bending Thickness: 50mm Carbon Steel Plate, 45mm Stainless Steel
Raw Material: Sheet / Plate Rolling, Steel Metal/ Plate /Profile Rolling Length: 0-4000mm
Hydraulic System: Yuken Valves Group Main Motor: 55-115kw
Weight: 45000kg Voltage: 220V/380V/415V/440V/customized
Color: Gray+White/ OEM, Customized Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
High Light:

cnc cone rolling machine

,

20mm plate bending machine

,

3 Roll Hydraulic Plate Bending Machine

W11SNC Series Plate Rolling Machine Stainless Steel Plate Bending 3-rollers Rolling machine





Discription of this Plate Rolling machine,



  • 3 rolls Hydraulic Plate Bending Machine with Double Pre-bending function.
  • Cone bending device contributes to make conical bend easily.
  • Abundant shape bend like shape O,U,R etc.
  • Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control.
  • Specific bending process includes special bending craft,high-accuracy pre-bending of the edge,simple digital control.
  • Its easy and convenient to move the workplace when equipped with simple ground foundation and whole solid chassis.
  • Customers can choose economic digital display type or TNC digital control type whichs totally dependent on their needs.
  • The top roller is designed as drum shape.In order to make a perfect cylinder from thin plate to thick plate,support roller is always installed at the lower part of bottom roller.
  • It's suitable for rolling plate thickness from 2 up to 200mm,useful length from 1000mm to 10000mm.



Steel Plate Rolling Machine Features,

1. Feeding on the order sheet to be completed by the prebend Circle,the smaller circular process.

2. Volume in to the curved,cylindrical,conical workpiece.

3. Driving for mechnical transmission,hydraulic transmission for the two movements under the roller.





Technical parameters,





Max width of roll board W11SNC-50x4000
The length of working rolls 4000mm
Max thickness of plate

50mm (Yielding Limit of Steel Plate 245Mpa)

45mm ( SS plate)

Max. Thickness of pre-bending

45mm(Yielding Limit of Steel Plate 245Mpa)

40mm (SS plate)

Upper roller diameter Φ700mm
lower rollers diameter Φ380mm
Distance between two lower rollers 700mm
Force pressure of Uppoer roller 690tons
Pressure of Hydraulic system 30MPa
Driving speed 3.5m/min
Main motor 75KW
Hydraulic motor 18.5KW
Moving motor 7.5KW
Dimensions 7850*2350*2850mm
Weight 45000kg
PLC Omron
Hydraulic system Yuken, Japan
Electrical elements Siemens, German





Specifications of W11SNC Series,





Type
Upper roller and add pressure Tons

biggest plate thick mm
plate length mm
Diameter mm of the roller

Make the diameter mm of workpiece
Centre-to-centre spacing of lower rollers mm
Motor
kw

End
Central
Drive
The oil pressure
W11S-45*3000
540
40
45
3000
590
340
610
55
22
W11S-40*4000
540
35
40
4000
630
340
610
55
22
W11S-36*5000
540
30
36
5000
670
340
610
55
22
W11S-32*6000
540
28
32
6000
700
340
610
55
22
W11S-55*3000
610
45
55
3000
620
360
650
75
30
W11S-45*4000
610
40
45
4000
660
360
650
75
30
W11S-40*5000
610
32
40
5000
700
360
650
75
30
W11S-36*6000
610
30
36
6000
730
360
650
75
30
W11S-60*3000
690
50
60
3000
650
380
700
75
30
W11S-50*4000
690
45
50
4000
700
380
700
75
30
W11S-45*5000
690
38
45
5000
740
380
700
75
30
W11S-40*6000
690
35
40
6000
760
380
700
75
30
W11S-70*3000
850
60
70
3000
710
420
780
75
37
W11S-55*4000
850
50
55
4000
750
420
780
90
37
W11S-50*5000
850
42
50
5000
790
420
780
90
37
W11S-45*6000
850
38
45
6000
820
420
780
90
37
W11S-75*3000
930
65
75
3000
740
440
820
90
37
W11S-60*4000
930
55
60
4000
780
440
820
90
37
W11S-55*5000
930
45
55
5000
820
440
820
90
37
W11S-50*6000
930
42
50
6000
850
440
820
90
37
W11S-80*3000
1050
70
80
3000
770
460
880
90
37
W11S-65*4000
1050
60
65
4000
810
460
880
90
37
W11S-60*5000
1050
50
60
5000
850
460
880
90
37
W11S-55*6000
1050
45
55
6000
890
460
880
90
37
W11S-85*3000
1150
75
85
3000
800
480
920
110
45
W11S-70*4000
1150
65
70
4000
840
480
920
110
45
W11S-65*5000
1150
55
65
5000
890
480
920
110
45
W11S-60*6000
1150
50
60
6000
930
480
920
110
45
W11S-100*3000
1350
90
100
3000
860
480
920
110
45
W11S-80*4000
1350
75
80
4000
900
520
1000
110
45
W11S-70*5000
1350
65
70
5000
940
520
1000
110
45
W11S-65*6000
1350
60
65
6000
980
520
1000
110
45
W11S-115*3000
1600
100
115
3000
900
560
1080
132
55
W11S-100*4000
1600
85
100
4000
940
560
1080
132
55
W11S-125*3000
1800
110
125
3000
960
600
1120
160
75
W11S-110*4000
1800
95
110
4000
990
600
1120
160
75
