Hydraulic Corner Notching Machine For Sheet Metal Plate Fixed Angle

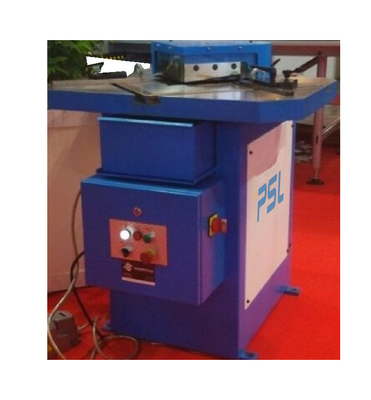

Large Image : Hydraulic Corner Notching Machine For Sheet Metal Plate Fixed Angle

Product Details:

Place of Origin:	China
Brand Name:	PSL
Model Number:	QF28Y-200/4

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Naked in container or wooden case
Delivery Time:	15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Type:	QF28Y-200/4 Hydraulic Notching Machine	Name:	Metal Sheet Hydraulic Notching Machine
Condition:	New	Application:	Kinds Of Sheet Metal Fabricating
Automatic Grade:	Semi-Automatic,Electric	Working Width:	200mm
Working Thickness:	4mm	Power(w):	3KW
Color:	Blue,gray+white,	Function:	Cutting Plates, Sheet Notching
Voltage:	3Phase-380V;50HZ,according To Your Requirement	Operation:	Buttons And Foot Pedal Operation
After-sales Service Provided:	Free Spare Parts,Video Technical Support	Warranty:	13 Months
Highlight:	hydraulic metal corner notcher , hydraulic sheet metal corner notcher , hydraulic corner notcher

Fixed Angle Hydraulic Corner Notching Machine for Sheet Metal Plate

Product Application

The QF28 series hydraulic notcher can cut up to 4 mm

The biggest notcher size is 200x200mm

The notching angle fixes in 90° with high notching speed

The hydraulic notcher has compact structure,small volume and convenient operation

Specification:

Model	QF28Y-200/4
Cutting angle	90°
Max. cutting Length	200 mm
Max. cutting thickness	4.0 mm
Max. travel	40 mm
Stroke times	30t/min
System pressure	18 mpa
Volume of oil tank	30L
Motor power	3 kW
Overall dimension	1000x900x1050 mm
Packing size	1200x1100x1300 mm
