Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Hydraulic Notching Machine, Sheet Metal Angle Shearing Machine |
|---|---|---|---|
| Machine Type: | QF28Y-4x200/500 Hydraulic Angle Notching Machine | Application: | Sheet Metal Fabricating, Corner Notching Cutter |
| Automatic Grade: | Semi-Automatic,Electric | Function: | Plates Corner Notching, Sheet Angle Cutting |
| Working Width: | 200mm, 250mm,500mm | Working Thickness: | 4mm,6mm Mild Steel, 2mm-3mm Stainless Steel |
| Notching Angle: | Fixed Angle 90 Degree, Or Variable Angle 40-135 Degree | Materials Of Blade: | 9CrSi Or H13K |
| Operation Method: | Foot Pedal Switch | Power(w): | 3kw ,4kw, 5.5kw |
| Voltage: | 3Phase-380V;50HZ, Customized | Color: | Blue+white, Gray-black+Red, Customized |
| After-sales Service Provided: | Free Spare Parts In Warranty,Video Technical Support | Warranty: | 2 Years |
| Highlight: | Plate Hydraulic Notching Machines PSL,Hydraulic Notching Machines Fixed PSL,hydraulic shearing machines PSL |
||

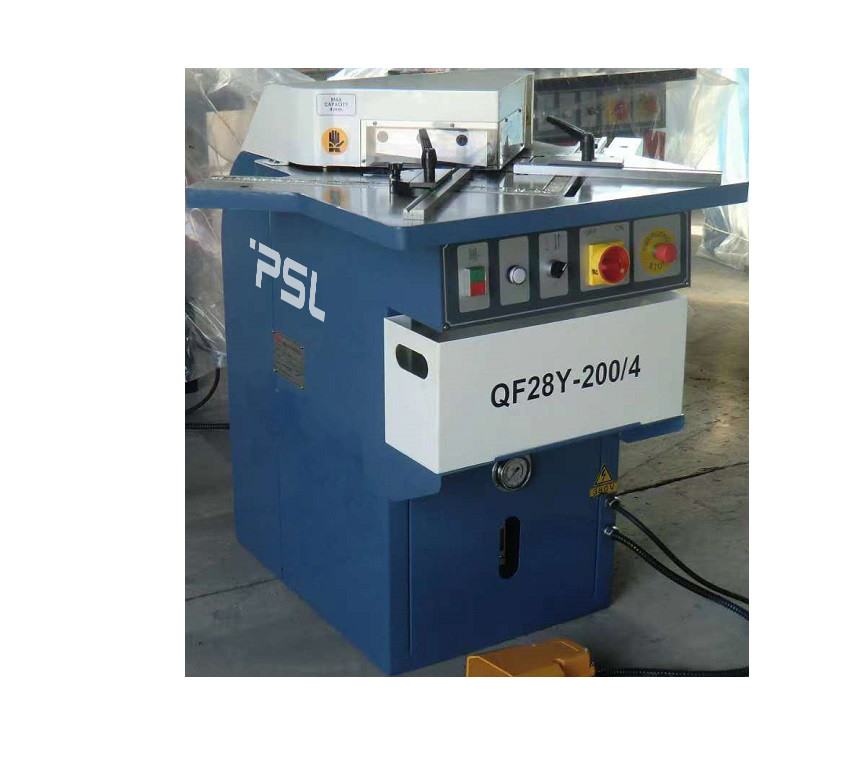

Hydraulic Plate Notching Machine fixed or adjustable angle shearing machine
Functions and Characteristics:
ADVANTAGES:
1. Strong and simple construction
2. NO maintenance
3. Fixed blades clearance for any thickness and material
4. Corrosion-resistant components
5. High quality components
6. Eco-friendly materials
7. Manufactured according to european safety rules,CE
8. Fast and easily adjustable angles by hand wheels.
STANDARD FEATURES:
1. Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2. Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3. One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4. Triplex scales on the working table for fast adjustment of the stops
5. Plexiglass guard for easy vision
6. Moveable foot switch
7. Single and set up stroke
8. Duct box
9. Adjustable notching stroke
11. Electric box and Buttons panel
12. Shearing Blades materials: 9CrSi
Specification:
