Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine

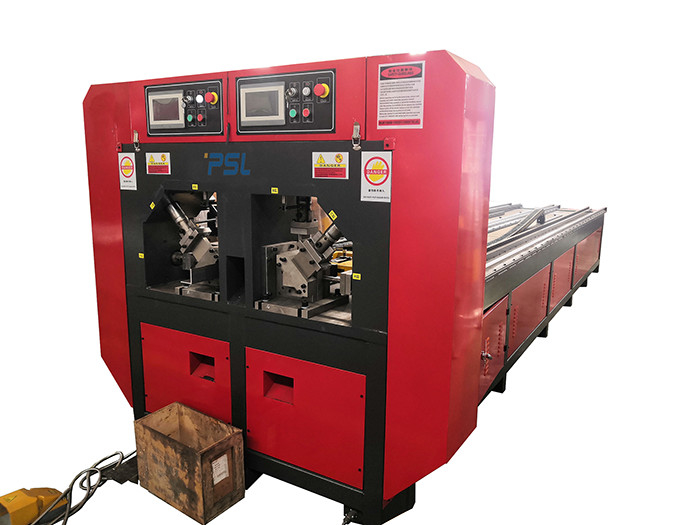

Large Image : Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine

Product Details:

Place of Origin:	China
Brand Name:	PSL, OEM
Model Number:	PS-63x63-6100

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Naked in container
Delivery Time:	15-30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Name:	CNC Profiles Steel Processing, Punching And Shearing Machine	Type:	PS-63x6100, CNC Profiles Ironworker, CNC Hydraulic Punching Machine
Application:	Metal Sheet Stamping,Channel Steel,Plat Steel,Metal Sheet Process	Keyword:	Punching Press,Hydraulic Ironworker Machines,Metal Sheet Shearing
Usage:	Building Construction,Metal Sheet Punching Cutting Bending	Power Source:	Hydraulic,electric
Punching Force:	20T	Max. Angle-steel:	63x63mm
CNC Feeding Length:	6100mm	Punching And Shearing Stroke:	130mm
Max. Punching Thickness:	6mm	Max. Punching Diameter:	30mm
Size Of Auxiliary Frame:	2500700700mm	Feeding Method:	CNC Servo Feeding
Servo MotorPower(w):	0.75 KW	Voltage:	380V,50HZ Customized
Dimension(lwh):	950x950x1800mm	Weight:	900kg
Color:	Gray - Black + Red, Blue, Customizable,	After-sales Service Provided:	Video Technical Support,Online Support
Warranty:	2 Years
Highlight:	20 ton ironworker , hydraulic iron worker , hydraulic hole punching machine

Latest Multi functions CNC Hole Punching machine Angle steel Cutting machine

Product Description,

Fully automatic CNC Punching press is my latest R&D products,this product adopts imported servo motor automatic feeding,hold distance accurately,using man-machine interface,simple operation is zinc steel guardrail,anti-theft network,the shelves of the industry the most ideal punching equipment.

Main Features:

1. The workpiece can be processed by punching and cutting several times.

2. The distance and stroke of punching and shearing can be adjusted, and the mold can be replaced.

3. The input hole number computer calculates the hole distance automatically, the operating system is humanized, convenient and simple.

4. The feeding speed can be adjusted. After discharging, the worker will feed automatically, punch automatically and cut off automatically.

5. Operator: 1 person. Mainly used for loading and monitoring operation.

6. The use of touch screen and PLC control, abnormal stop alarm function, the customer in the actual use of the electrical circuit after sales problems we can see from the operating screen all the machine fault information, can directly determine the problem, can easily solve the problem for the customer in a timely manner.

Main Technical parameters,

Model	PS-63x63-6100
Maximum length of stroke	6100mm
Maximum Angle	63*63mm
Maximum diameter	30mm
Maximum thickness of punching shear	6mm
Punching and shearing stroke	130mm
number of trips	12-36cpm
Simplex bit	20T
Size of auxiliary frame	2500700700mm
Servo motor	80ST-M02430 (0.75)kw
Strength of processed materials	≤450N/mm²

Detailed pictures of Hydraulic punching shearing notching machine

Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine 0

Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine 1

Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine 2

Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine 3

Multi Functions CNC Hole Punching Machine Angle Steel Cutting Machine 4
