Product Details:
Payment & Shipping Terms:
|
| Name: | CNC Stainless Steel Square Tube Punching Machine | Type: | PS-CNC-60, CNC Profiles Ironworker, CNC Hydraulic Punching Machine |
|---|---|---|---|
| Application: | Metal Sheet Stamping,Channel Steel,Plat Steel,Metal Sheet Process | Keyword: | Punching Press,Hydraulic Ironworker Machine |
| Usage: | Building Construction,Metal Sheet Punching Cutting Bending | Power Source: | Hydraulic, Electric |
| Operation: | CNC Automatic | Punching Force: | 40T |
| Max.punching Capacity: | 60x3mm | CNC Feeding Length: | 3000/6000mm |
| Punching Stroke: | 100mm | Max. Punching Thickness: | 3mm |
| Feeding Method: | CNC Servo Feeding | Servo MotorPower(w): | 0.75 KW |
| Main Motor: | 7.5kw | Voltage: | 380V,50HZ Customized |
| Dimension(l*w*h): | 4750x1050x1650mm | Color: | Gray - Black + Red, Blue, Customizable, |
| After-sales Service Provided: | Video Technical Support,Online Support | Warranty: | 2 Years |
| High Light: | steel pipe collar hole punching machine,hydraulic metal hole punch machine,round pipe hole punching machine |
||

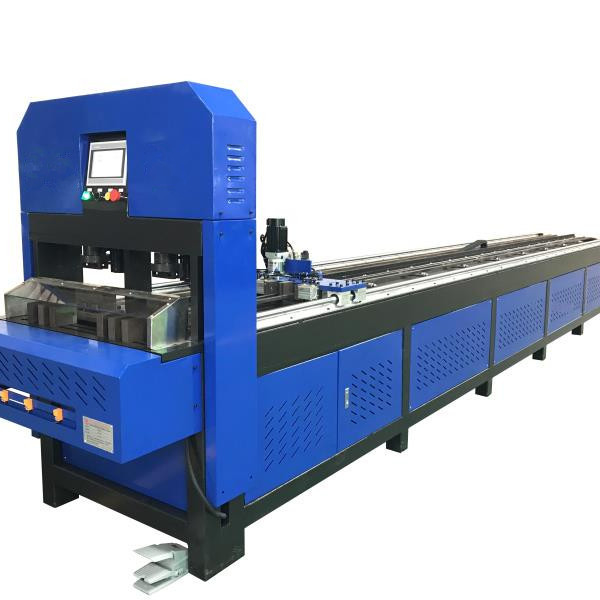

CNC Square Stainless Steel Tube Holes Punching Hydraulic Round Pipes Punching Machine
Main features of PS-60CNC hydraulic punching machine:
Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
1. Structure: Steel plate welded structure
2. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
3. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
4. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
5. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy
| Main Parameters | |
| Item | Cnc Stainless Steel Square Tube Hole Punch Hydraulic Pipe Punching Machine |
| Max punching capacity | Φ60mm X 3mm |
| Max feeding length(Can be customized) | 3000mm/6000mm |
| Max cylinder strokes | 100mm |
| Main motor power(punching hole) | 7.5KW |
| Servo motor power(feeding) | 0.75KW |
| Max feeding speed | 1000mm/s |
| Punching speed | 80-120times/Min |
| Hydraulic pressure | 40Ton |
| Machine weight | 1900kg |
| Machine size | 4750x1050x1650mm |
| Standard Components | |
| Hydraulic motor | Siemens, Germany |
| Servo Motor | Yonghong,Taiwan |
| Main electris | Schneider,France |
| Program controller | Yonghong,Taiwan |
| Liner guide | TBI,Taiwan |
| Touch screen | Xinjie,Taiwan |
| Hydraulic valves | Yuken,or Rexroth |
| Oil pump | Hitech Sunny |
