250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50

China PSL (WUHAN) SMART EQUIPMENT CO.LTD. certification
China PSL (WUHAN) SMART EQUIPMENT CO.LTD. certification
I'm Online Chat Now

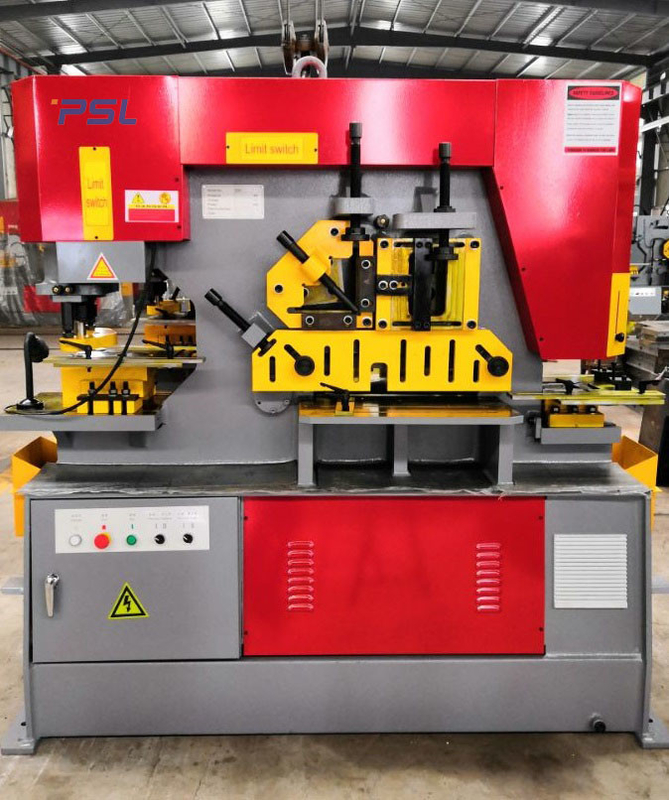

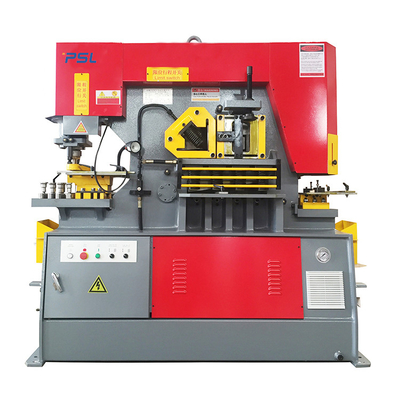

250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50

250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50
250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50
video play

Large Image :  250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50

Product Details:
Place of Origin: China
Brand Name: PSL, OEM
Model Number: Q35Y-50-250T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Naked in container
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Condition: New Name: Profiles Steel Processing, Punching And Shearing Machine,Steel Ironworker Machine
Type: Q35Y-50-250T, Functions Ironworker, Hydraulic Punching & Shearing Machine Application: Metal Sheet Stamping,Channel Steel,Plat Steel,Metal Sheet Process
Usage: Building Construction,Metal Sheet Punching Cutting Bending Keyword: Iron Worker,Hydraulic Ironworker Machines,Metal Sheet Shearing
Power Source: Hydraulic,electric Punching Force: 250T
Max. Cutting Thickness: Mild Steel, Carbon Steel 50x300mm Angle Of Shear: 8 Degree
Max. Punching Thickness: 40mm Max. Punching Diameter: 45mm
Throat Of Punching: 600mm Power(w): 18.5 KW
Voltage: 380V,50HZ Customized Dimension(l*w*h): 3200x1440x2550mm
Weight: 12000kg Color: Gray - Black + Red, Inory White, Customizable,
After-sales Service Provided: Video Technical Support,Online Support Certification: CE ISO
Warranty: 2 Years
High Light:

250 ton ironworker hydraulic press PSL

,

250 ton hydraulic punch and shear machine PSL

,

hydraulic punch and shear machine Q35Y-50 PSL



Professional Profiles Processing machine Hydraulic combined punching and shearing Ironworker Q35Y-50





Product Description,

Multi-function Ironworker goes along with Automatic Holding System and Temperature Cooling System. Hydraulic Iron worker can punch, cut, notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.


Main Features:

* Technically dimensioned bed
* Cylinder with additional guide.
* Strong and accurate shaft system to avoid distortions
* Gradual centring of punch
* Quick punch change
* Safety protection.
* Ample space for mounting special equipment
* Optimum operation speed
* Large number of optional, standard and special accessories to perform a wide range of jobs



The main functions of the machine and equipment :
Metal sheet punching, 90 degree and 45 degree angle-steel shear, profile shear, sheet shear, profile trimming, etc. Punching and die-shearing workstations, if replaced with other accessories matched with this machine, can also be used for shearing stamping of special shapes, bending sheet metal, V-notch shearing and other processes. They are suitable for shipbuilding, power, bridges, automobiles, crane transportation, metal structure and other machinery processing plants.





Functions Tree,



250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 0







Main Technical parameters,



Model

Q35Y

-16

Q35Y

-20

Q35Y

-25

Q35Y

-30

Q35Y

-40

Q35Y

-50

Processing

Capacity

(KN)

600 900 1200 1600 2000 2500

Material

Tensile Strength

(Mpa)

≤450 ≤450 ≤450 ≤450 ≤450 ≤450

Ram Stroke

(mm)

80 80 80 80 100 100

Number

of Stroke

(times/min)(mm)

11-20 12-20 8-18 6-16 6-16 6-12

Throat Depth

(mm)

300 355 400 600 530 600
Shear Angle

Flat She

aring

Max

Shearing

Capacity

(thickness*

width)(mm)

16×250 20×330 25×330 30×335 40×335 50×300
8×400 10×480 16×600 20×600 30×600 30×750

Bar She

aring

Square

Bar

(mm)

40×40 50x50 50×50 55×55 60×60 65×65

Round

Bar

(mm)

45 50 60 65 70 80

H-beam

(mm)

  100×100 120×120 175×175 200×200 250×250

C-channel

(mm)

120×

53×5.5

160×

63×6.5

200×

75×9

280×

86×11.5

300x

89x11.5

320x

92x12

I-beam

(mm)

120×

74×5

160×

88×6

200×

75×9

280×

124×10.5

300x

130x13

320x

130x13

Angle Shearing

90°shearing

(mm)

120×

120×

12

140×

140×

12

160×

160×

14

180×

180×

16

200×

200×

16

200×

200×

18

45°shearing

(mm)

60×

60×8

70×

70×10

60×

60×7

80×

80×8

80×

80×10

100×

100×12

Hole Punching

max

diameter

of punching

(mm)

ф25 ф30 ф35 ф38 ф40 ф45

Punching thickness

(mm)

16 20 25 28 35 40
Motor(KW) 5.5 7.5 11 15 18.5 18.5

Dimension

(mm)

1740×

810×

1830

1950×

900×

1950

2355×

960×

2100

2800×

1050×

2450

2900×

1110×2500

3200×

1440×2500







250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 1





250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 2



250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 3 250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 4

250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 5 250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 6



250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 7





Moulds and blades,



250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 8250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 9250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50 10
