| Max. Punching Thickness: | 28mm | Name: | Profiles Processing, Punching And Shearing Machine,Steel Ironworker Machine |
|---|---|---|---|
| Max. Punching Diameter: | 38mm | Throat Of Punching: | 600mm |
| Type: | Q35Y-30-160T, Ironworker, Hydraulic Punching & Shearing Machine | Voltage: | 380V,50HZ Customized |
| Condition: | New | Application: | Metal Sheet Stamping,Channel Steel,Plat Steel,Metal Sheet Process |
| Dimension(l*w*h): | 2600x1050x2450mm | Usage: | Building Construction,Metal Sheet Punching Cutting Bending |
| Weight: | 6500kg | Function: | Steel Metal Punching Holes,Shear Ironworker,steal Plate Punching And Shearing,Stamping Metal Product |
| Color: | Gray - Black + Red, Inory White, Customizable, | Keyword: | Iron Worker,Hydraulic Ironworker Machines,Metal Sheet Shearing |
| Warranty: | 2 Years | Power Source: | Hydraulic,electric |
| After-sales Service Provided: | Video Technical Support,Online Support | Punching Force: | 160T |
| Certification: | CE ISO | Power(w): | 15 KW |
| Max. Cutting Thickness: | Mild Steel, Carbon Steel 30x355mm | ||
| High Light: | hydraulic iron worker PSL,hydraulic punching and cutting machines PSL,hydraulic punch and shear machines PSL |
||

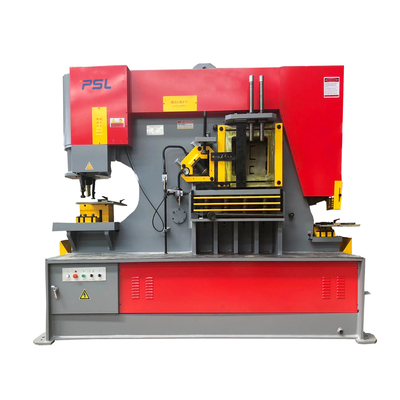

Q35Y-30-160T Profiles Ironworker Hydraulic United Punching & Shearing machine
Q35Y series industrial-grade hydraulic ironworker featuring multiple functions,
including: round bar, square bar, oblong hole punching; steel plate, flat bar, angle steel, C-channel, I-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The hydraulic ironworker comes standard with:
Quick-change coupling nut & sleeve, squaring arm with scale, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our hydraulic ironworker is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost.
Optional tooling of hydraulic ironworker
Automatic Holding System:
The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.
Temperature cooling system:
When the hydraulic ironworker machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
Main standard properties components of hydraulic ironworker :
1. The electrical parts are Schneider brand.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. Oil seals by Japanese NOK.
8. O-Ring and Valve by Taiwan for piston pump more durable.
9. Hydraulic System by Rexroth Germany.
10. Main Motor by Siemens
11. Oil pump is internal gear pump Sunny brand.
12. Dual independent hydraulic cylinder
13. Dual Footswitch controlled work separately
14. Easy Adjustable stroke control with ruler
15. Indicator on both hydraulic cylinders
16. Moveable working light that can be placed at any desired position
17. Hydraulic system with overload protection system
18. Emergency safety stop switch
19. Large punching table with ruler guide
20. Larger notching table with Ruler guide
21. Large flat shearing table with Ruler guide
22. Most important easy maintenance
Assemblings,
1. 5 sets of round hole punching molds
2. A set of angle steel cutting blade
3. A set of square and round bar cutting blade
4. A set of flat-bar shearing blade
5. A set of notching blade.
Other moulds and blades should be ordered and paid additionally.
Functions Tree,
Main Technical parameters,
| Model |
Q35Y -16 |
Q35Y -20 |
Q35Y -25 |
Q35Y -30 |
Q35Y -40 |
Q35Y -50 |
|
|
Processing Capacity (KN) |
600 | 900 | 1200 | 1600 | 2000 | 2500 | |
|
Material Tensile Strength (Mpa) |
≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | |
|
Ram Stroke (mm) |
80 | 80 | 80 | 80 | 100 | 100 | |
|
Number of Stroke (times/min)(mm) |
11-20 | 12-20 | 8-18 | 6-16 | 6-16 | 6-12 | |
|
Throat Depth (mm) |
300 | 355 | 400 | 600 | 530 | 600 | |
| Shear Angle | 7° | 8° | 8° | 8° | 8° | 8° | |
|
Flat She aring |
Max Shearing Capacity (thickness* width)(mm) |
16×250 | 20×330 | 25×330 | 30×335 | 40×335 | 50×300 |
| 8×400 | 10×480 | 16×600 | 20×600 | 30×600 | 30×750 | ||
|
Bar She aring |
Square Bar (mm) |
40×40 | 50x50 | 50×50 | 55×55 | 60×60 | 65×65 |
|
Round Bar (mm) |
45 | 50 | 60 | 65 | 70 | 80 | |
|
H-beam (mm) |
100×100 | 120×120 | 175×175 | 200×200 | 250×250 | ||
|
C-channel (mm) |
120× 53×5.5 |
160× 63×6.5 |
200× 75×9 |
280× 86×11.5 |
300x 89x11.5 |
320x 92x12 |
|
|
I-beam (mm) |
120× 74×5 |
160× 88×6 |
200× 75×9 |
280× 124×10.5 |
300x 130x13 |
320x 130x13 |
|
| Angle Shearing |
90°shearing (mm) |
120× 120× 12 |
140× 140× 12 |
160× 160× 14 |
180× 180× 16 |
200× 200× 16 |
200× 200× 18 |
|
45°shearing (mm) |
60× 60×8 |
70× 70×10 |
60× 60×7 |
80× 80×8 |
80× 80×10 |
100× 100×12 |
|
| Hole Punching |
max diameter of punching (mm) |
ф25 | ф30 | ф35 | ф38 | ф40 | ф45 |
|
Punching thickness (mm) |
16 | 20 | 25 | 28 | 35 | 40 | |
| Motor(KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
|
Dimension (mm) |
1740× 810× 1830 |
1950× 900× 1950 |
2355× 960× 2100 |
2800× 1050× 2450 |
2900× 1110×2500 |
3200× 1440×2500 |
|
|
|
|||||||
